PlayStation 3 Slim (CECH-300X) Fan system Replacement

Geschrieben von: ZFix
  • Kommentare: 2
PlayStation 3 Slim (CECH-300X) Fan system Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

If you want to replace the fan or clean the fan system - video tutorial:

  1. Wp2QZJ1G2LCKybZX
    Wp2QZJ1G2LCKybZX
    TJFTMrav23DbSSZc
    4LwrdrTi6YFOkEOn

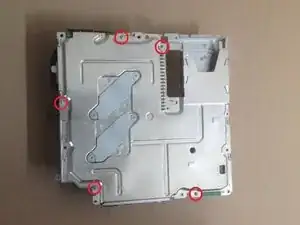

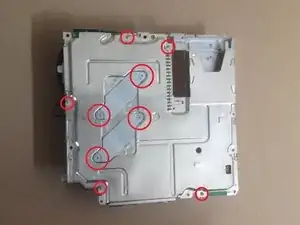

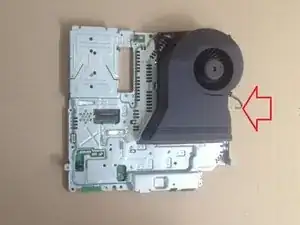

    • Disconnect the fan cable and remove the nine screws from the bottom side.

  2. upLYJFF3oUAPWLyn
    upLYJFF3oUAPWLyn

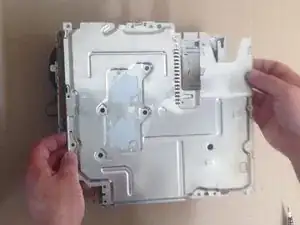

    PrK1DFpqWLW5MWgr
    xkfjyjiTObEw5nGC

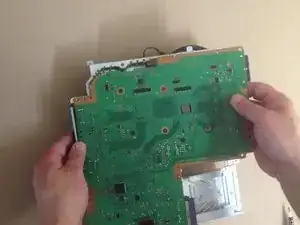

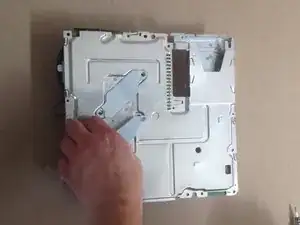

    • Remove the two heat sink clamps and bottom shield, then gently separate the motherboard off the top shield.

  3. qURkEiyUGBvmDdnk
    qURkEiyUGBvmDdnk

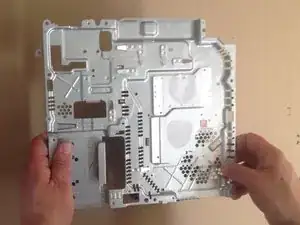

    LYoqUdncqgHrPCYw
    ps1JaqOr5hN4BIOH

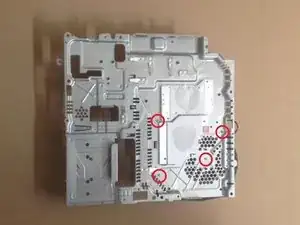

    • Remove the four Phillips screws and lift the top shield.

  4. mvwApNe4HFtHvwnh
    mvwApNe4HFtHvwnh
    Z4UFanUUJXQ4SXaW

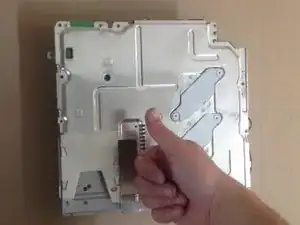

    DD3wMtHcDLLN3jyF

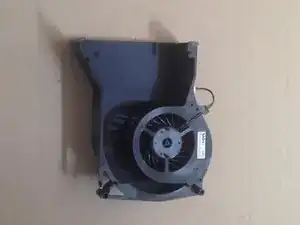

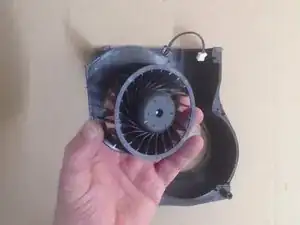

    • That's all.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

2 Kommentare

Awesome guide. Thank you so much. I did it, but now I just wonder what that white stuff was when I removed the motherboard. I think it's that thermal stuff people have been talking about and I suppose I have to replace that. I also hope that it's the fan that is what's causing my PS3 to say that it's overheating and shut off. I'm so glad you guys posted this. Great job. I rather do it myself than pay Sony an arm and a leg. Cheers!

chetacheez -

This is CPU / GPU thermal paste / compound. I recommend you Arctic MX-2, MX-4. It is very good and not expensive.

ZFix -
