PlayStation 3 Slim Laser Unit (Laser and Mechanism) Replacement

Geschrieben von: ZFix
  • Kommentare: 4
PlayStation 3 Slim Laser Unit (Laser and Mechanism) Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

40 Minuten - 2 Stunden

Einleitung

PlayStation 3 - How to replace Laser Lens and Mechanism (Laser Deck).


More info about disassembling, you can find in

PlayStation 3 Slim Teardown

  1. REIZIEPMMAxRr4Ua
    REIZIEPMMAxRr4Ua
    2ggUuqfYHVglne4O
    4OZpFXCHsSZW3D3Q

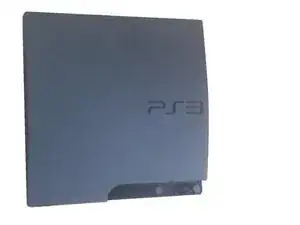

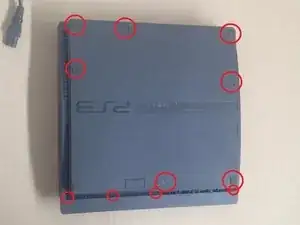

    • Disconnect all cables. You have 4x Torx T8 screws and 7x Phillips screws. Now you can remove outer case.

    What is the part number for the plastic caps that hide the screws?

    There's rubber caps and plastic caps that you have to remove to access the screws.

    Byron Arriola -

    Model 2504B : You have to remove the hard drive first in order to remove the case.

    Stephane Dannebey -

  2. MJviZqQ4OxJ5b1NC
    MJviZqQ4OxJ5b1NC
    yJuVkmnSDasJPBLV
    KQTfBBaXuPGscW3X

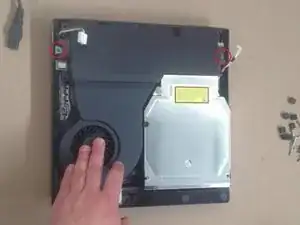

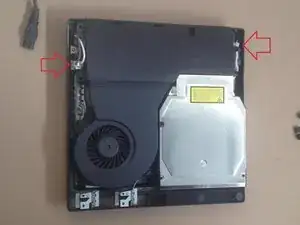

    • Remove Power Supply.

  3. y3ftylQSHtkiinYa
    y3ftylQSHtkiinYa
    ErJcbf3PRJi3sN3q
    33KWyUTvZspgqiIP

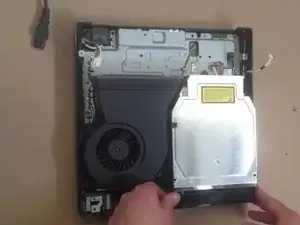

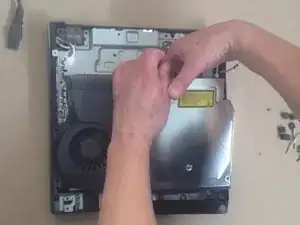

    • Separate cables, unscrew the screw and remove the Blu Ray drive.

  4. w5HGWbuxXpZHr1nG
    w5HGWbuxXpZHr1nG
    ySeNkUSeOUhTSFM3
    dSZoPFBRbrWYWUsN

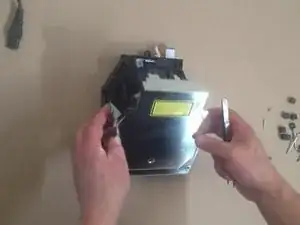

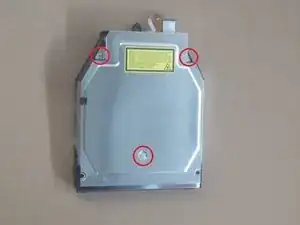

    • Disassemble the upper metal shield.

  5. aQFeWByDlIFoRHTg
    aQFeWByDlIFoRHTg
    OskQ6wKBPdHY4WnY
    TO1OC1XjvUWvlsTx

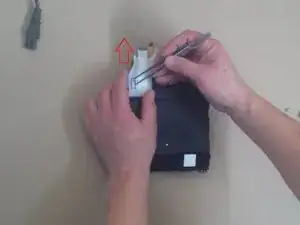

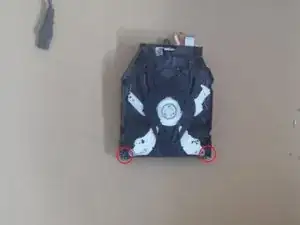

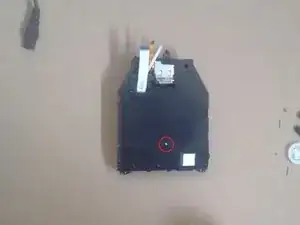

    • Remove the two very small phillips screws in each lower corner referenced by the red circles.

  6. JrIEmMbXnNRJDXCN
    JrIEmMbXnNRJDXCN
    dqAyFcqRcQYoCpAW
    NgWo6tOj2UdpliJa

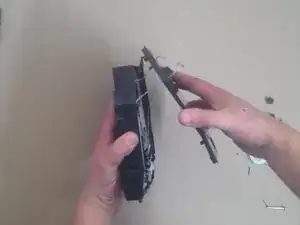

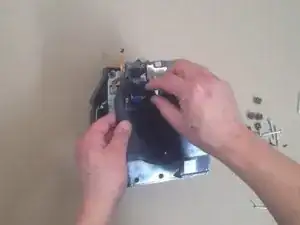

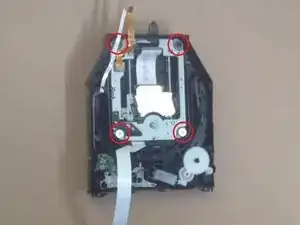

    • Be careful with flex cables.

  7. d4nMi54JBkCHfGOd
    d4nMi54JBkCHfGOd
    AZQlZxmyVOokCARZ
    LH5MaEG6MHlXHxD2

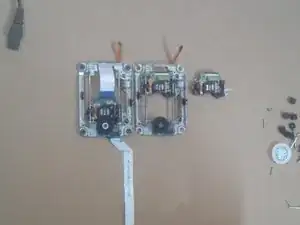

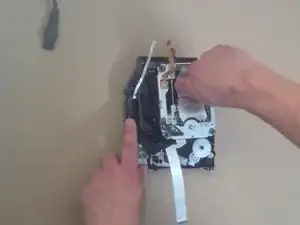

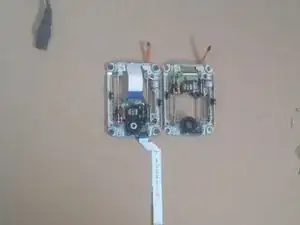

    • Now you can remove the Laser Deck.

    What is the part number for the 4 screws that secure the laser deck and also the part number for the 4 rubber shock absorbers where the screws go into?

    Byron Arriola -

  8. nFPqNCvBdTk1J1Sp
    nFPqNCvBdTk1J1Sp
    XAOAv52AfsRRlJmQ
    TTfpLJTmH5MXuyXH

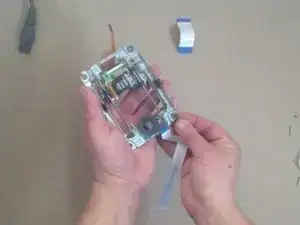

    • Transfer two flex cables and 2x rubbers.

  9. JbwZ4mLkeZ4arwRf
    JbwZ4mLkeZ4arwRf
    cYvMIREErRItYbRj
    IVREugh3rQWWAQrt

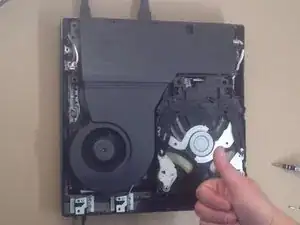

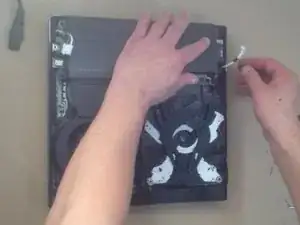

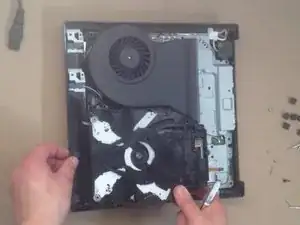

    • You can test the console before full assembling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
