PlayStation 3 Slim - Manually Removing Stuck Disk

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 45 Minuten

Einleitung

You can use this method if you can't eject the stuck disk by the eject button and the eject hole. The PS3 slim on this video is model CECH-300X.

Full video you can see here:

More info about disassembling, you can find in PlayStation 3 Slim Teardown

Werkzeuge

Schritt 1

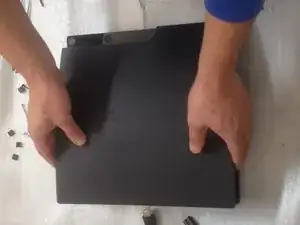

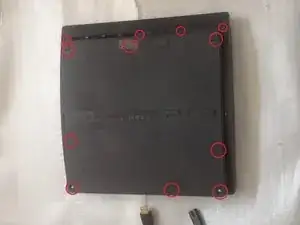

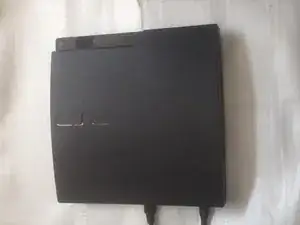

Disconnect all cables. You have 4x Torx T8 screws and 7x Phillips screws. Now you can remove outer case.

Schritt 2

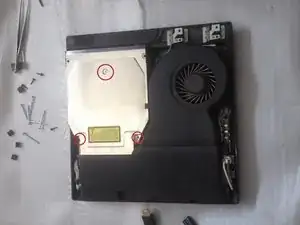

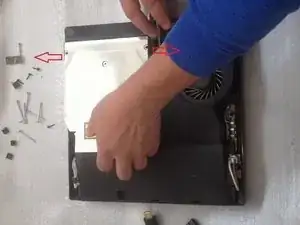

Unscrew the three screws. To remove Blu Ray unit shell you must open two plates that are on the left and right side.

Schritt 3

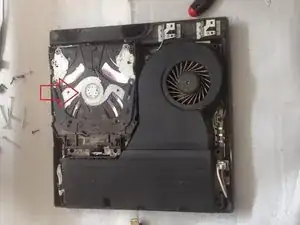

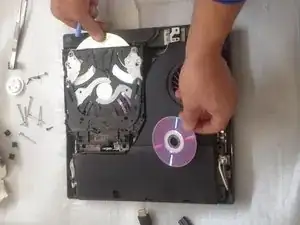

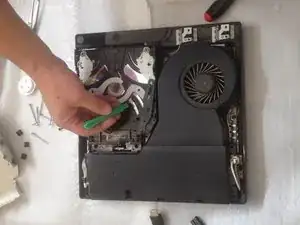

First remove the spindle disc magnet. Now use plastic tool and slowly extrude the disk from inside.

Schritt 4

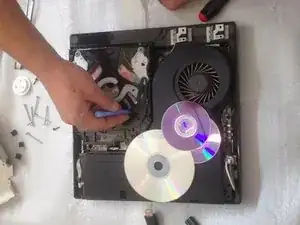

In this case we have ... 4x disks. :)
.
Did you do it successfully?

Schritt 5

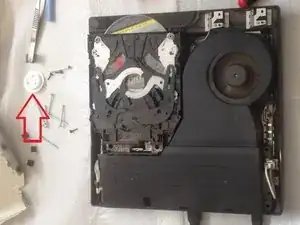

Test the console before assembling. And don't forget to put the spindle disc magnet.
