PlayStation 3 Slim Netzbuchse austauschen

Geschrieben von: Andrew Bookholt

Kommentare: 34

PlayStation 3 Slim Netzbuchse austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

Diese Anleitung zeigt dir, wie du die Netzbuchse samt Kabel austauschen kannst.

Werkzeuge

Ersatzteile

Sony PlayStation 3 Slim AC Inlet

Schritt 1

Drehe die PS3 um und lege sie sorgfältig ab.
Ziehe vorsichtig den Garantieaufkleber vom unteren Gehäuse ab, um an die darunter verborgene Schraube zu gelangen.
Um zu verhindern, dass beim Aufkleber die Schrift *VOID*, also "ungültig" erscheint, den Aufkleber vorher vorsichtig erwärmen. So kann man ihn sauber entfernen und wieder aufkleben.

Don’t even need to bother with the sticker anymore since SONY does not care what you do with them anymore.

Travis Wheeler -

Schritt 2

Benutze die flache Seite eines Metallspatels, um die sieben Schraubenkappen an den Kanten des unteren Gehäuses herauszuhebeln.

Schritt 3

Schraube die sieben 37 mm langen Kreuzschlitzschrauben aus dem unteren Gehäuse heraus.

Schritt 4

Schraube die vier 13,3 mm langen T8 Torx Sicherheits-Schrauben unter der Öffnung des BD Laufwerkes heraus. (Einige Modelle haben nur drei Schrauben)

Its 4 screws beneath the blu-ray

Manuel -

Remove the four 13.3 mm T8 security Torx screws beneath the Blu-ray drive opening.

Daniel Tlapa -

Can we edit this to say 4 screws?

revanantwraith -

I made the change from three to four screws, but you're able to edit the guides as well. If you want to edit something, you can click the Edit link on the right side of any guide step, or the Edit link at the top right of the page (sandwiched in-between View and History).

Taylor Arnicar -

Do you guys have a guide for the PS3 Slim Model 3001A. The fan is different than this model.

emknight04 -

3001a is basically same motherboard but cheaper plastic bd drive other than that its exactly the same until you get to the new slim line

Robert -

Anyone know an online retailer with a competitive price for the replacement fan?

Jared -

My PS3 had only three Torx screws. Having four in the diagram was initially confusing. Obviously they made a mid-stream change at some point (mine is several years old now).

corygbooker - 03/12/14

I've accidentally removed the ribbon cable from the blu-Ray drive and can not seem to figure out how to reconnect it. Can anyone help?

OneIfByLand - 29/10/15

Take the top off the drive, connect the ribbon to the motherboard then replace the drive sliding the ribbon through the slot on the bottom of the drive and reconnect to the laser.

KcXbox Repair - 31/01/16

pls help i have to tear down my ps3 slim but the 4 srews are very hard to take it out because there is a needle in the middle pls hep

Vincent Brabandt - 26/11/16

If the screw has a pin in the center, that means it is a security Torx meant to prevent tampering. To remove this screw, follow the guide I have linked below...

http://www.instructables.com/id/Removing...

Telpack - 05/02/17

How do u buy the screw driver for these screws

mistergalacta hoggy - 09/08/19

Online at the usual suspects?

Or some hobby stores or places that sell tools will sometimes carry these.

revanantwraith - 04/01/21

Anyone else's screws for this step need the T7 bit instead of T8?

Michael J Cotton -

What is the name of this screwdriver

Mohammad Shawa -

Schritt 5

Hebe den Deckel zuerst an der hinteren Kante an und klappe ihn nach vorne.
Hebe jetzt den Deckel der PS3 vollständig ab.

I just want to open the top cover to clean the fan. Do I need to unscrew the four security screws?

Aryan - 12/04/21

Schritt 6

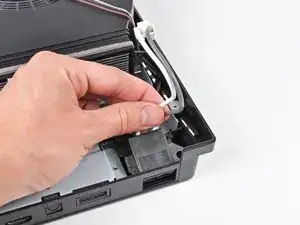

Drücke die Rasten an der Netzeingangsbuchse und ziehe sie gerade vom Netzteil hoch.

Schritt 7

Ziehe den Stecker der Gleichstromversorgung an den Kabeln gerade hoch und aus dem Sockel am Netzteil.

Those two screws are tight down there what do you recommend I use?

Megan bronner - 07/08/18

Schritt 8

Das Netzteil ist mit zwei 7,6 mm Kreuzschlitzschrauben am unteren Gehäuse befestigt. Drehe sie heraus.

Question: if a screw doesn't come out, what do you recommend, without potentially damaging the system, inside and out?

kramiz2488 - 29/06/16

It seems these can be quite tight, but they did come loose with someextra force in my case. They did that thing where it makes cracking sounds, but nothing really breaks. They're just really tight in there. - I just wouldn't recommend taking these out too often.

Michael Hendriks - 15/12/17

The screwdrivers on the guide didn't work mine just don't come out any tips model is slim CECH 2001A

Step 8

Jose Arrieta - 22/08/20

These screws work as a ground pass through between the motherboard shields and the power supply. My cousin took his PS3 to a repair shop to replace the power supply, they didn’t put the screws back in after that and the PS was shutting down suddenly (no light green or red), put a couple of new screws and it’s being working fine since

Mauricio González - 31/05/21

Sometime ago i took apart my PS3 out of curiosity, When puting it back together, i messed it up, I stripped one of the PSU screws. Now, i can't take it apart for a paste replacement. Any ideas?

Franco Iván Bello Rojas -

The screws don't come out how do I fix this without breaking anything

Suck dick -

I had the same problem with very tight screws on PS3 power supply. I solved it by purchasing a Screw removal / extractor gripping pliers long nose style , with unique non-slip jaws for quickly extracting damaged / stuck screws. ENGINEER PZ-60 Neji-Saurus,Silver. ( bought mine on Amazon)

These pliers have special grips on tapered end to hold and turn stripped or rusty screws. It took a lot of effort, but screws finally came out using these pliers. A bit of sewing machine oil and prising under the washers with a flat screwdrvers helps too. Failing that, take it to repair shop as they are VERY TIGHT screws on some models of PS3.

hubert hanks -

Schritt 9

Hebe das Netzteil an der - von vorn gesehenen - linken Kante hoch.

Schritt 10

Hebe das Netzteil weiter an der linken Kante hoch, bis sie sich von den Metallstützen löst, so wie im zweiten Bild zu sehen.
Entferne das Netzteil von der PS 3, achte darauf, dass sich keine Kabel verfangen.

It seems it kind of ends for me here. I can only lift the left side about an inch and then the right side stays down like it’s stuck to something underneath. It feels like I’m bending something. Could something have melted underneath?… It's really stuck, I can't get it to come loose. And I can't see much shining a light into it either. - Any tips?…

Michael Hendriks - 15/12/17

Did you undo the screws?

Phoenix Jameson - 22/01/20

I had the same issue but was able to get it off. The right side (as per the above picture) has two long column like sections that actually goes into the machine. Took me a bit of wiggling and some brute force.

Ivan Amaro - 28/12/17

You just lift the whole power supply up. There’s no need to start from the left? Is it possible to bend the two metal posts if lifting from the left?

Ken - 08/08/20

Needs medium flat screw driver as wedge to help to lift the power supply in the right side or exert more force in your right arm provided the front of PS3 is at your front.

Dasol - 18/12/20
