PlayStation 3 Super Slim Laser Unit Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

How to disassemble and change the Laser Unit.

Werkzeuge

Schritt 1

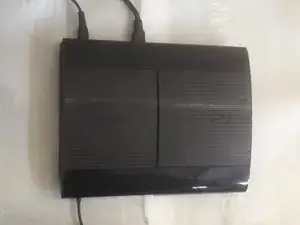

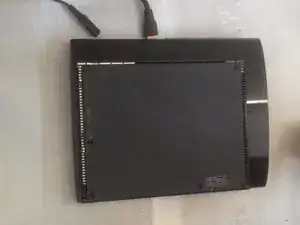

Turn off the console and disconnect all cables.

Schritt 2

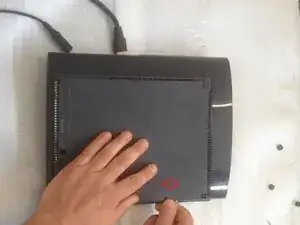

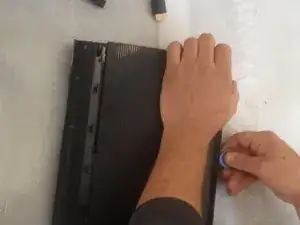

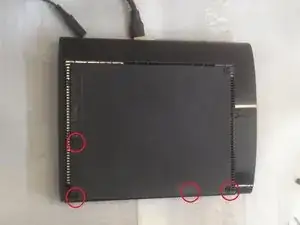

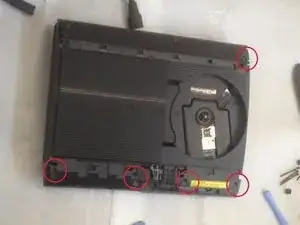

You must remove the warranty sticker and 4 screws.

Schritt 3

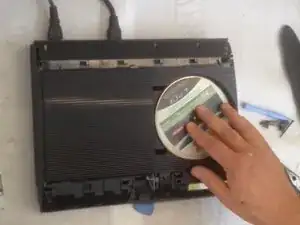

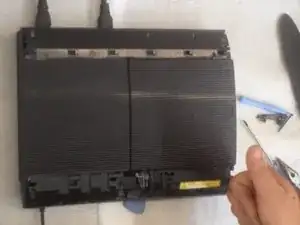

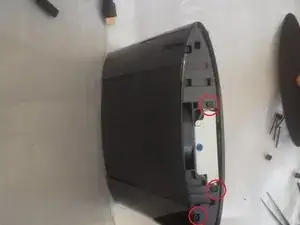

After removing HDD bay cover, you will see another 3 screw.

Schritt 4

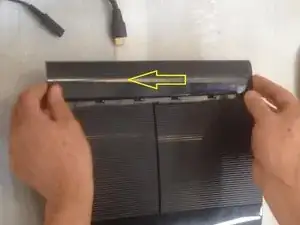

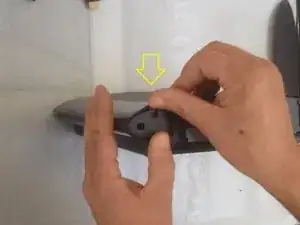

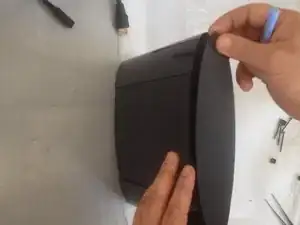

Push there to release and remove upper back bezel.

Schritt 5

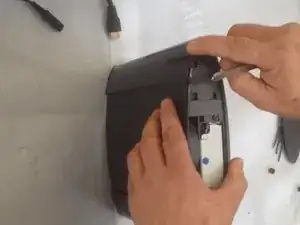

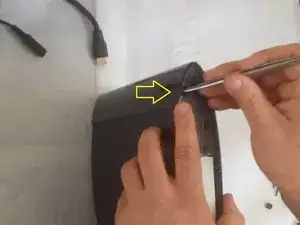

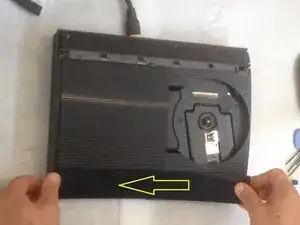

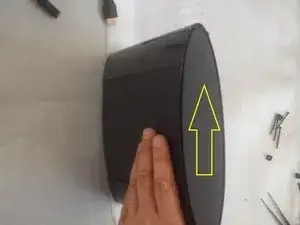

The upper front bezel is harder to remove.

Schritt 6

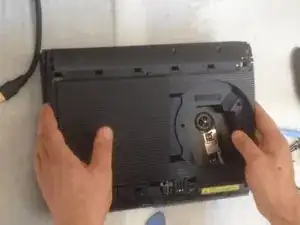

Remove 7 screws to release top cover.

Schritt 7

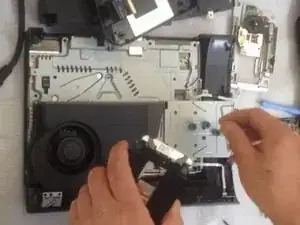

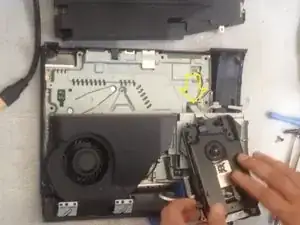

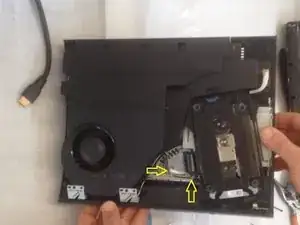

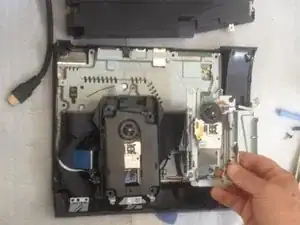

Disconnect two flex-cables and move the Laser Unit. Remove the two screws and the small cable and then take out the Power Supply Unit.

Schritt 8

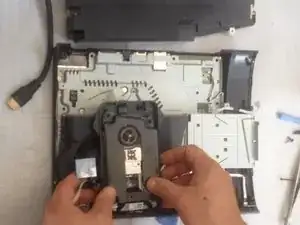

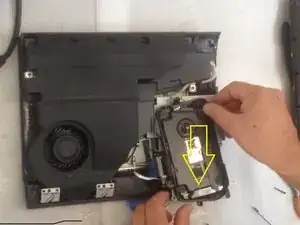

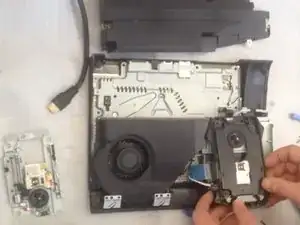

To release the laser unit disconnect this flex-cable.

How is called this flex cable? Mine is broken so I have to buy another

Gianpaolo Scionti -

Schritt 9

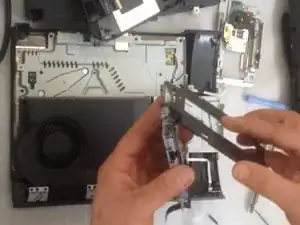

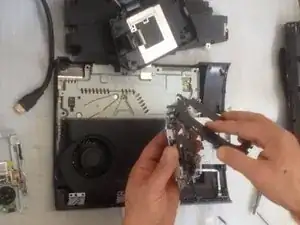

One flex-cable, for rubbers and the metal bezel.

Schritt 10

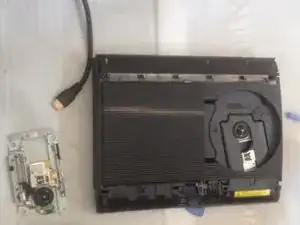

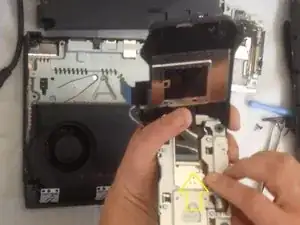

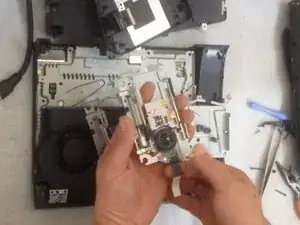

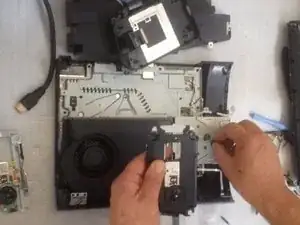

Disconnect this flex-cable and attach it to the new spare part. Let's start assembling.

Schritt 12

Let's test the device before fully assembling it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
