PlayStation 3 Super Slim Wi-Fi Antennas Replacement

Geschrieben von: Joseph O'Connor
  • Kommentare: 8
PlayStation 3 Super Slim Wi-Fi Antennas Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will show the users how to remove the Wi-Fi antennas of the PlayStation 3 Super Slim. The step will show users how to remove the mounted antennas. After, the guide will go into the removal of the antennas' wires from the sockets on the motherboard.

  1. xbQGh6p1ZhTEI1AM
    xbQGh6p1ZhTEI1AM
    KtrEJIpoTyD6Dxns

    • Remove the side HDD bay cover by sliding the panel towards the back of the device.

    • The bay cover is found on the right side of the device.

    Just wanted to add: the HDD bay cover isn't on the right all the time, it varies with each unit. The side without the rubber PS logo is the bay cover.

    Yash -

  2. plFIWwPRecFSCYtW
    plFIWwPRecFSCYtW
    aY24caeSlaSLeiSh

    • Remove all three black 9.8mm long screws with a T-8 security screwdriver.

    • Remove the blue 7.9mm long screw with a Phillips #1 screwdriver.

  3. BI3LAQDYeBaY3rd6
    BI3LAQDYeBaY3rd6
    GE41y3D3UesWoFGO

    • Pull on the tab to remove the HDD.

    • The HDD should be removed and stored carefully to prevent damage to data.

  4. uamMjKCFEnb1yVAd
    uamMjKCFEnb1yVAd
    RcLG3QQDdCi3cHKO

    • On the bottom of the device, pry out the three rubber feet covers with the metal spudger.

    • Remove the four black 36.3mm long screws underneath with a Phillips #1 screwdriver.

    • One screw is located underneath the warranty sticker. This sticker can either be peeled off or punctured through with a screwdriver.

  5. uV3ohQT1OHHuYKKm
    uV3ohQT1OHHuYKKm
    Hu2abpWkZKkfDyx3

    • On the top of the device, unlatch the hook on the furthest right beneath the front panel, lift the panel slightly and apply pressure.

    • Unlatch the second right-side hook by sliding a plastic opening tool in the marked area.

    • Slide the panel to the left to unlatch the rest of the hooks.

    • This is probably the most difficult part of the procedure. If you cannot unlatch the hook on the front panel, you can attempt to pry all the hooks off. However, do this at your own risk, as these hooks break easily.

  6. ETZALUAjLVb3QSpP

    • Remove the back panel by pressing down the tab on the right side of the device, and sliding the panel to the left.

  7. 14ySA5tr4QOwXMli
    14ySA5tr4QOwXMli
    G5vooeSBbf642Z6a
    NRGGFxlrh5TjpOwj

    • Remove the five silver 20.8mm long screws with a Phillips #1 screwdriver.

    • Remove the two black 9.9mm long screws in the disc reader with a T-8 security screwdriver.

    • Remove the top black plastic shell.

  8. Qr6kVceLZaiWjTqM
    Qr6kVceLZaiWjTqM
    HPo5mESxObkLXBII
    XteObUULZPtjx1mE

    • Move the optical drive to the side to reveal one of the silver 8.8mm long screws.

    • Remove the two silver 8.8mm long screws on either side with a Phillips #1 screwdriver.

    be careful, the fiber-optic cables come out easily and are a pain to put back in

    tucker hartman -

  9. KYIxOow2iBFd3Pc4
    KYIxOow2iBFd3Pc4
    fyOJO3E4rKpl1mxm
    CrC3gLDSZsmGDnEc

    • Remove the cable from the plug and remove the wires from the two plastic hooks.

    • When removing the cable from the plug, pull on the plastic male connecter, not on the wires.

    • Remove the power supply unit.

    The left side of the PSU sits on two long metal prongs so you may need to pull a little to get it lose but you should be able to pull the whole unit in an upward motion

    Matthew Symmons -

  10. ONIEuPpUIPrpCiCb
    ONIEuPpUIPrpCiCb
    g1XR3KBlPakDCWwB
    6iQejXF2NLfOfelD

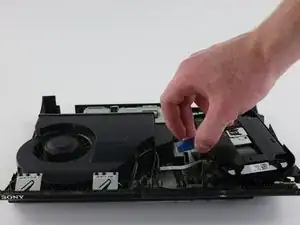

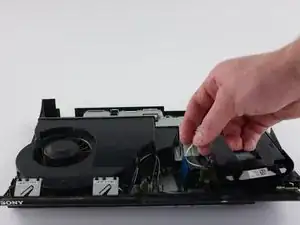

    • Remove the front white flex-ribbon cable by pulling upward from its base.

    • Remove the black and blue flex-ribbon cable behind it by pulling upward on the black tab, then pulling out the cable.

    Para Que son esos cables flex

    Enrique Luna -

  11. H2DhKRwpkZKPogUN
    H2DhKRwpkZKPogUN
    VUjCTyKsZZM1JUiG
    Q3inBSX54UrOnvVE

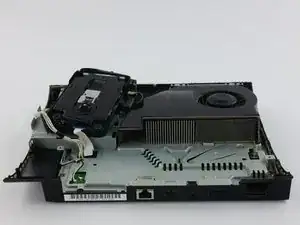

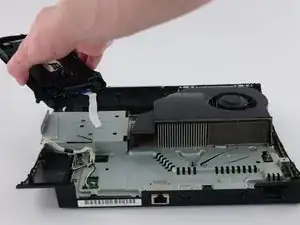

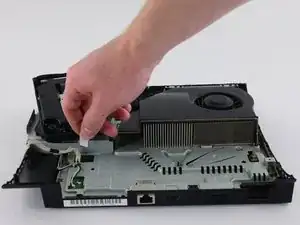

    • Rotate the device 180 degrees.

    • Remove the back white flex-ribbon cable by pulling upward from its base.

    • Remove the optical drive.

  12. RehK6xnGmtu2jPUe
    RehK6xnGmtu2jPUe
    WFhR6r2n2IIqhGo6
    RnuyDfrbOsQPsY5L

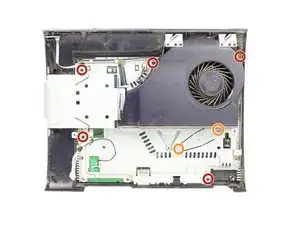

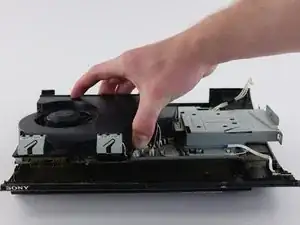

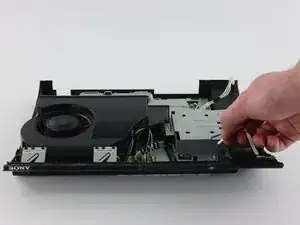

    • Locate the white flex ribbon cable that connects the power button to the motherboard. Pull this cable out from the motherboard end.

    • Remove the five black 8.3mm long screws with a Phillips #1 screwdriver.

    • Remove the two silver 12.8mm long screws with a Phillips #1 screwdriver.

    • Remove the device from the bottom shell casing.

  13. sxLENxpWmDDZIDDk
    sxLENxpWmDDZIDDk
    AUNvNNQUJyaNXVZw
    rvTpDZakF1iutqeR

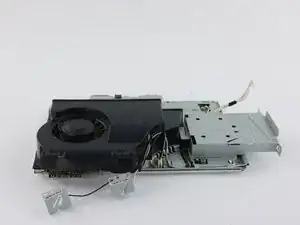

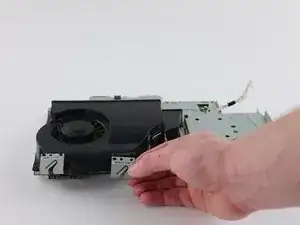

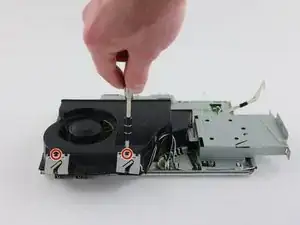

    • Remove the two black 8.3mm long screws with a Phillips #1 screwdriver from the Wi-Fi antennas.

    • Lift the Wi-Fi antennas off their mount.

  14. 1KcHlxPUVxw1DYBU
    1KcHlxPUVxw1DYBU
    GilWxPtCfjfAa13H
    FULwVBmq1hA2AtoP

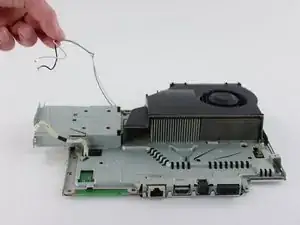

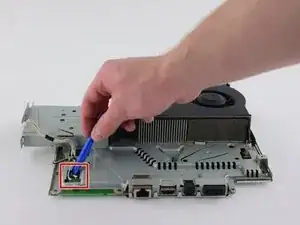

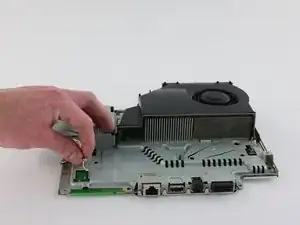

    • Use a plastic opening tool to remove the Wi-Fi wires from their sockets on the motherboard.

    • Remove the wires from the hooks around the motherboard and fan cover to completely remove the antennas.

    • The Wi-Fi antennas' ports are labeled B and W on the motherboard for reassembly.

    • To insert your new Wi-Fi antennas, insert the wires of your replacement Wi-Fi antennas into each socket, feed the wires through the hooks, and install the antennas on their mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
