PlayStation 4 Netzteil tauschen

Geschrieben von: Sam Omiotek
  • Kommentare: 83
PlayStation 4 Netzteil tauschen

Schwierigkeitsgrad

Mittel

Schritte

8

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Diese Anleitung zeigt, wie das Netzteil in der Sony Playstation 4 ausgetauscht werden kann.

Ziehe vor Reparaturbeginn unbedingt den Netzstecker!

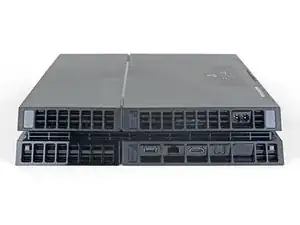

  1. 21LJYnUT534diPkY

    • Drehe die PS4 um, so dass der Boden oben liegt und die Rückseite zu dir zeigt.

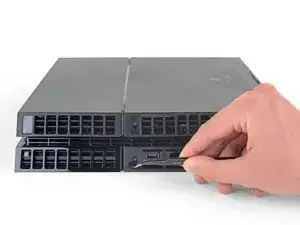

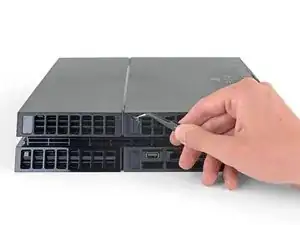

  2. kywHHmkOcswPFDjm
    kywHHmkOcswPFDjm

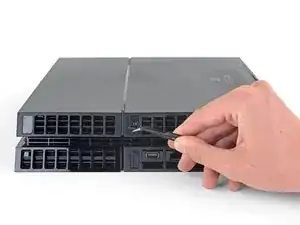

    g3p1nmGqDLvNYlwD
    HVJTWJOoL6cUcoBS

    • Ziehe die beiden Aufkleber in der Mitte der Rückseite mit einer Pinzette ab, so dass die beiden Gehäuseschrauben sichtbar werden.

  3. QGDNpTn4LrZHSr2F

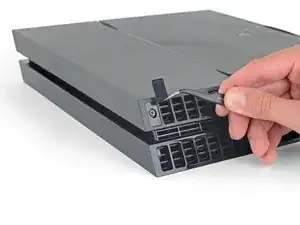

    QGDNpTn4LrZHSr2F

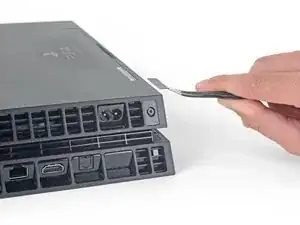

    MLVk3bQRWjJpjhKh

    • Entferne behutsam mit einer Pinzette die Schraubenabdeckungen aus Kunststoff in jeder Ecke, so dass zwei weitere Schrauben sichtbar werden.

    What If my PS4 doesn't have the two screws on the side

    Michael Jimenez -

    I should imagine that plastic cover will come off?

    How did you go?

    Cary B -

  4. EoWfJjtMRGNijIDA
    EoWfJjtMRGNijIDA

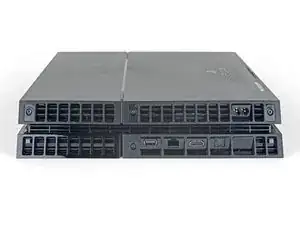

    kPwQlcOBVwv2PxuA

    • Entferne die vier 7,2 mm Torx Sicherheitsschrauben von der Rückseite der PS4.

    I only have two screws, those in the middle of the console.

    Oscar Martinez -

    Have you removed the plastic covers mentioned in the previous step? That will expose the other two screws.

    Sam Omiotek -

    same, here. there are only the middle screws, no covers or screws on the sides. and it sits pretty tight

    Johannes Müller -

    turns out 12XX models are different. Look at this for reference: https://www.youtube.com/watch?v=Hpr0z0ve...

    Johannes Müller -

    Yes there is slight variations between the first models, and the second gen and on models. I have an original and only has the two screws in the middle, removal of the cover remains the same.

    Mary Westphal -

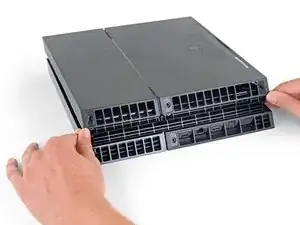

  5. kbpHqgpXdtdVifwo
    kbpHqgpXdtdVifwo
    gtKNupdgQ44yDPVf

    • Hebe das Gehäuseunterteil mit den Daumen hoch und entferne es von der PS4.

    • Das Gehäuseunterteil ist mit Rasten befestigt. Zum Ablösen musst du möglicherweise recht viel Kraft aufbringen.

    sur la version 2 de l ps4 fat il n'y a que les 2 vis du milieu. Comment défaire le boîtier ?

    nlvolle -

  6. coGRVtdMr6vYQIWw

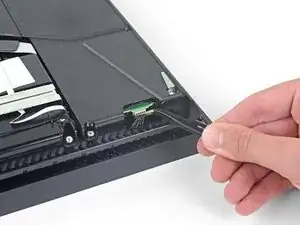

    coGRVtdMr6vYQIWw

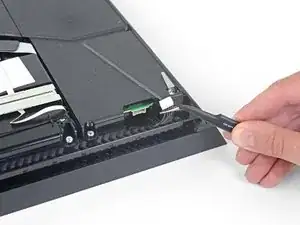

    BGP5HaSrJNavVLaN

    • Ziehe das Versorgungskabel mit einer Pinzette gerade heraus und trenne das Netzteil von der Hauptplatine ab.

    • Wenn der Stecker festhängt, dann heble ihn behutsam mit einem Spudger heraus.

    This part looks dangerous. There should be a flag/warning not to destroy that cable yes?

    Shawn -

    I second Shawn's comment. That cable seems to be very fragile, and one of the wires snapped on mine while removing the cable. It wouldn't have bothered me so much, if it wasn't a pain to find a replacement for it.

    Matt Gaia -

    The tweezers used here, do not cut it. Not enough grip.

    I had to use a set of needle nose pliers to remove this.

    Cary B -

    Power supply connection stuck. I don't want to damage it

    Nick Alex -

    What you need to do here is be patient. Do not pull the wires. Get some fine nosed pliers, wiggle the white connector from left to right in small movements and edge it out slowly. You can also use your nails one finger at each edge of the white connector to do this.

    David Harkness -

    Its really hard but i managed it with both of the tweezers/pincers at the same time


    1. Keep in mind to pull not too hard on the wires and make step 2 and 3 simultaneously!

    2. the straigt and wider tweezer to pull the white connector itself
    (top and bottom grip)
    3. the small and angled tweezer to pull the wires carefully
    (as shown on the picture above)

    dinkelberg01 -

    Another option, is to remove the screws holding it down, leave the cable in place and lift it out carefully, revealing the other end of the connection. The hidden side of the connection wire is easier to get a handle on.

    Mary Westphal -

    I concur with David, some patience and a lot of wiggling did it for me despite the stubbornness of the connection. Does seem like this one varies a lot in how difficult it is to remove.

    hazelrat -

  7. QuWBy6PULou5kCNl

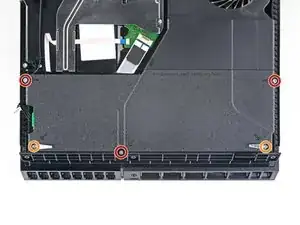

    QuWBy6PULou5kCNl
    hgyBH31OKmXWCda6

    • Entferne drei 9,7 mm Torx Sicherheitsschrauben.

    • Entferne die beiden 41 mm Kreuzschlitzschrauben und Halterungen.

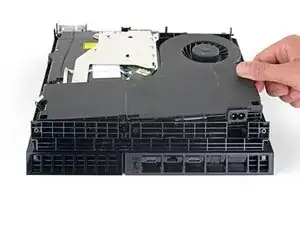

  8. SpnmPM4gMehIdDX3
    SpnmPM4gMehIdDX3
    RarAwfBCLQdtutfe

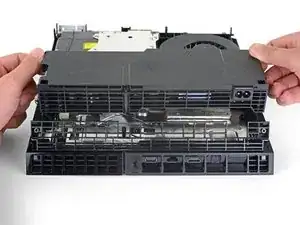

    jVDy11JFDXQsv43q

    • Hebe das Netzteil gerade nach oben aus der PS4 heraus.

    • An der linken Seite wird das Netzteil stark von Zinken festgehalten. Wahrscheinlich musst du es mehrfach probieren, bis es herauskommt.

    • Achte beim Zusammenbau darauf, dass die Zinken gut passen, drücke dann das Netzteil fest.

    How do you remove the battery wires? I’ve personally been wiggling it to no effect, is there a certain way i have to pull it out, and should i pull it out of the power supply or the console?

    Tubby -

    Retirar en vertical, derecho hacia arriba. Sino puedes doblar uno de los tornillos largos

    FabianCampos -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge diesen Schritten in umgekehrter Reihenfolge.

Entsorge deinen Elektromüll fachgerecht.

Hat die Reparatur nicht ganz geklappt? In unserem Forum findest du Hilfe bei der Fehlersuche.

Vergleiche dein Ersatzteil mit dem Originalteil. Möglicherweise musst du fehlende Bauteile übertragen oder Schutzfolien vom Neuteil abziehen, bevor du es wieder einbauen kannst.
