PlayStation Move Battery Replacement

Geschrieben von: Sarah Shand
  • Kommentare: 1
PlayStation Move Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 20 Minuten

Einleitung

The battery is an integral part of the PlayStation Move controller. This guide will help you to remove and replace it with ease.

  1. rTNPCfOojOq4OT3n
    rTNPCfOojOq4OT3n
    uAyyLMgYHpRB1h5c

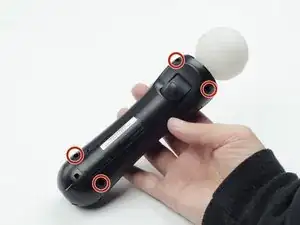

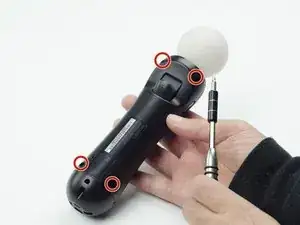

    • Turn the controller over and unscrew the four 10mm screws with a PH #00 screwdriver.

  2. GfCOpyX2hHLC3IyX
    GfCOpyX2hHLC3IyX
    GkLVd3KATTueJNFE
    SDVUgveGGBtD14DG

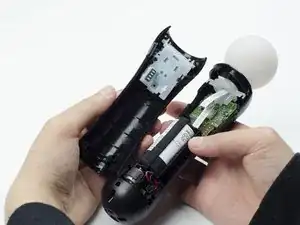

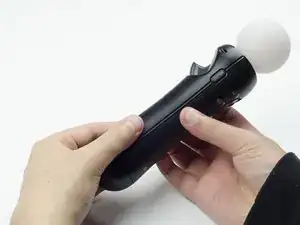

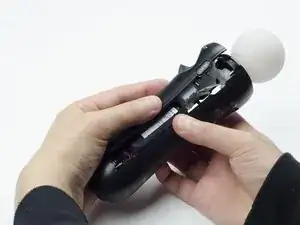

    • Pinch the sides of the back panel to remove it and set it aside.

  3. U3JMHsKmcpQbhoZJ
    U3JMHsKmcpQbhoZJ
    56YmQPxYEbPmTCH4

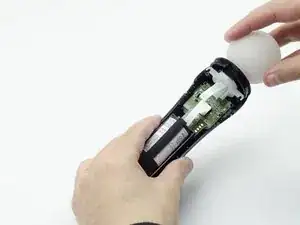

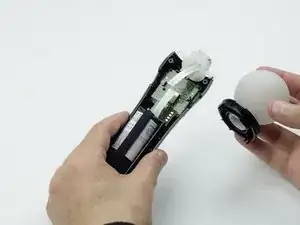

    • Hold the base of the controller with one hand and with the other carefully pull up on the white spherical piece to remove it.

  4. oBngX1BhFqDokAVy
    oBngX1BhFqDokAVy
    CYAqYSOWr3OYq4GN

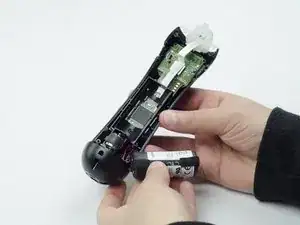

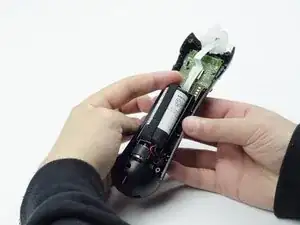

    • Push the Lithium Ion battery from its slot to remove it.

    • Be mindful not to damage the wires or wired components, as the battery will still be attached via its connector.

  5. MxVPpGeDH2SmlQJ5

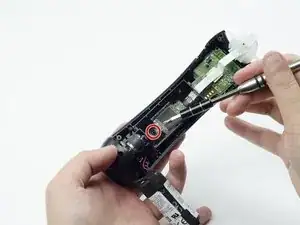

    • Unscrew the 9mm screw in the battery slot with a PH #00 screwdriver.

  6. oMPLRtD2ILqasspc
    oMPLRtD2ILqasspc
    msG4WUqyfNGJma1M

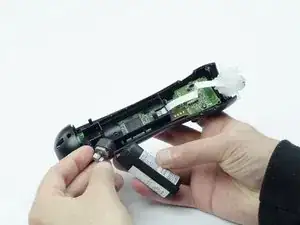

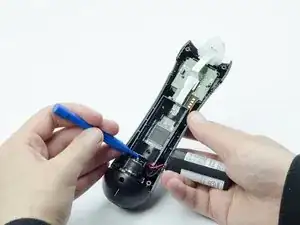

    • Using a plastic opening tool, carefully pry the rumble motor free.

  7. pxWQtDQswulJYkAR

    • Unscrew the 9mm screw behind the rumble motor slot with a PH #00 screwdriver.

  8. DDBBfApHSq1J1tLH
    DDBBfApHSq1J1tLH
    Uqsa2NJImaAJDMER
    6ArX4dDRSvVAZarC

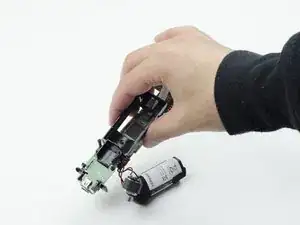

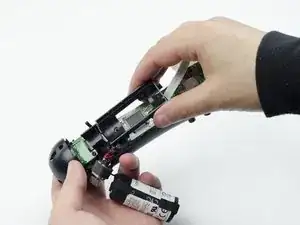

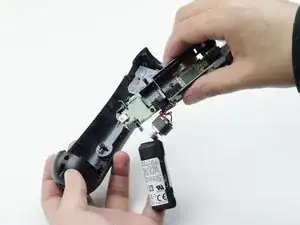

    • Carefully pinch the plastic sides of the battery slot and lift it (along with the circuit board) from the plastic shell of the move controller.

  9. aohCIvggqmiJMkZp
    aohCIvggqmiJMkZp
    1rdnGbBiA1TRBM1Y

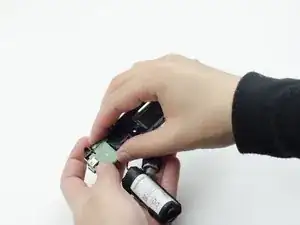

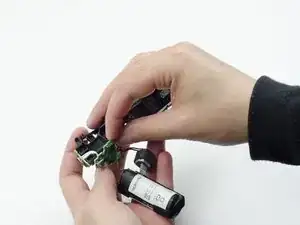

    • Using your fingers, carefully pry the square green piece beneath the battery slot free.

    • It is attached via white ribbons which need to be kept intact.

  10. JksyrjOpYatV2P24
    JksyrjOpYatV2P24
    1RtEK5DTVBCQM2Zy
    air3JAXKwjUeafjA

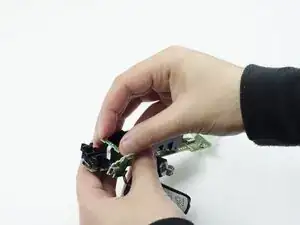

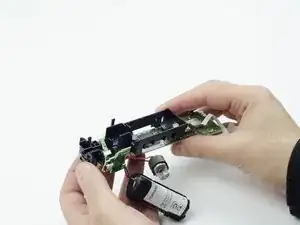

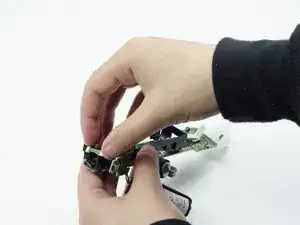

    • Follow the white ribbon attached to the part you just removed to a smaller, more rectangular piece.

    • Lift the rectangular piece from its slot to free it.

  11. C1tJWtvG6PNdJ63A
    C1tJWtvG6PNdJ63A
    mc3nvGsgql2vDjlW
    UfbuSMevPXFDkpit

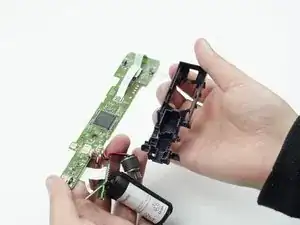

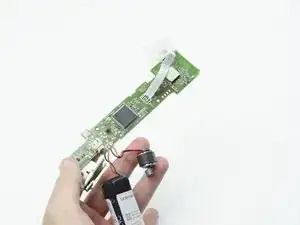

    • Carefully lift the entire circuit board from the black plastic encasing it.

    • Take extra care not to damage any of the wired components.

  12. KfCKmyTWFwMbsPVW
    KfCKmyTWFwMbsPVW
    jFsAHRFUOQ2KMow2

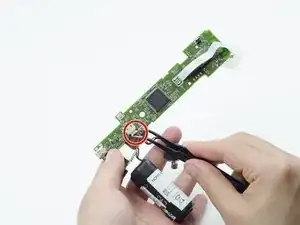

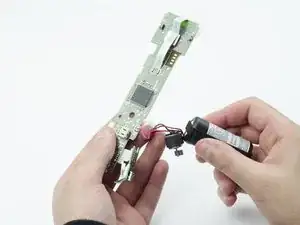

    • Using tweezers, carefully pull the power cable from its port on the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sarah Shand

Mitglied seit: 20/02/17

1804 Reputation

Ein Kommentar

No need to remove the the rumble motor, if you are careful and gentle and have some good tweezers you can unplug the battery cable after step 4, but it’s safer to do all steps

Andrew S. -
