PlayStation One Lower Case Replacement

Geschrieben von: Marjorie
  • Kommentare: 2
PlayStation One Lower Case Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

3 Minuten

Einleitung

  1. 3ALaepS6kT3yXVcJ

    • Remove all cables plugged into the PlayStation.

  2. NBUNo2fFMJABwsoq
    NBUNo2fFMJABwsoq
    bTBcmGLSPyAGAgQ4

    • Flip over the PlayStation and remove the six screws from the bottom.

  3. FBFZ5VyUerpc1lJy

    • Flip the PlayStation back.

    • There are no screws holding EVERYTHING inside the PlayStation so better hold it like a burger while flipping.

  4. MPwtGZxKNqesNK4F
    MPwtGZxKNqesNK4F
    nYVjtBicU5jelO5j

    • Lift up and remove the upper case.

  5. qTYSFjDertHsfZlL
    qTYSFjDertHsfZlL
    VTr2HBTJXydPrVxS
    3XHOiVLWXwmbmrRk

    • Disconnect the cables from the PSone’s board.

    • Take extreme care when disconnecting the ribbon cable from motherboard. You risk damaging the cable if you’re not careful.

  6. tvSALBotiUHT3SvJ
    tvSALBotiUHT3SvJ
    MGanNX1x1RVHwVmX

    • remove the metal plate

    well well a modded ps one hahah

    Bernabe Alvarez -

  7. WBwdGEVkDJQgsy6V
    WBwdGEVkDJQgsy6V
    wg2Mb5HAekUWDjyF
    BBZxJMuWQVMW1eJV

    • remove the mother board by lifting the back.

    • if you're having a hard time removing it, use your nail and lift the second controller port.

  8. aH33gnRRTLdNPJyT
    aH33gnRRTLdNPJyT
    RXlEDIjdig2ChiLj

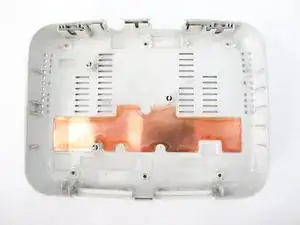

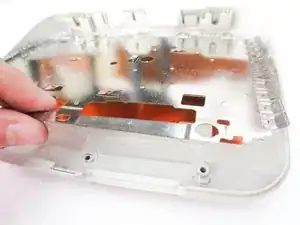

    • Remove the metal case.

    I'm having a difficult time figuring out what the copper plate is for, I know the metal plate is an RF shield but I have a PSone that looks trashed and I'm wondering if it's ok to remove and junk the copper bit altogether and give it a good clean/restore and put it back together? Even the service manuals don't say. I'm guessing water damage detection?

    Cat Korecki -

Abschluss

To reassemble your device, follow these instructions in reverse order.
