PlayStation One Mother Board Replacement

Geschrieben von: Marjorie
  • Kommentare: 2
PlayStation One Mother Board Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

3 Minuten

Einleitung

This will guide you in replacing the Mother board of a PlayStation One.

  1. 3ALaepS6kT3yXVcJ

    • Remove all cables plugged into the PlayStation.

  2. NBUNo2fFMJABwsoq
    NBUNo2fFMJABwsoq
    bTBcmGLSPyAGAgQ4

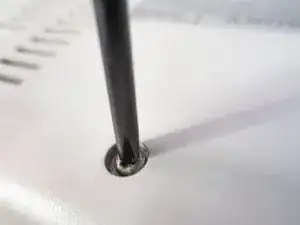

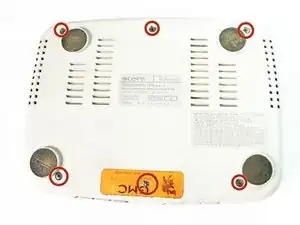

    • Flip over the PlayStation and remove the six screws from the bottom.

  3. FBFZ5VyUerpc1lJy

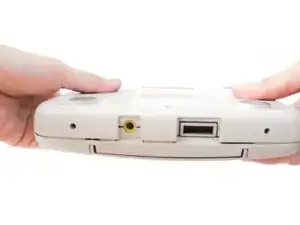

    • Flip the PlayStation back.

    • There are no screws holding EVERYTHING inside the PlayStation so better hold it like a burger while flipping.

  4. MPwtGZxKNqesNK4F
    MPwtGZxKNqesNK4F
    nYVjtBicU5jelO5j

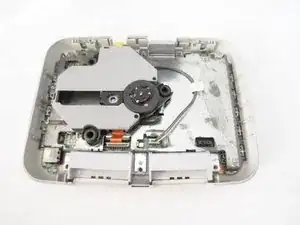

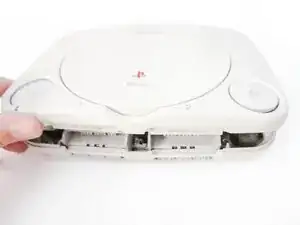

    • Lift up and remove the upper case.

  5. qTYSFjDertHsfZlL
    qTYSFjDertHsfZlL
    VTr2HBTJXydPrVxS
    3XHOiVLWXwmbmrRk

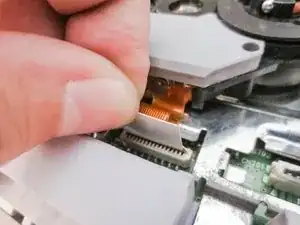

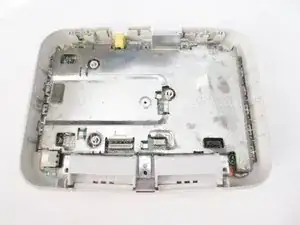

    • Disconnect the cables from the PSone’s board.

    • Take extreme care when disconnecting the ribbon cable from motherboard. You risk damaging the cable if you’re not careful.

  6. tvSALBotiUHT3SvJ
    tvSALBotiUHT3SvJ
    MGanNX1x1RVHwVmX

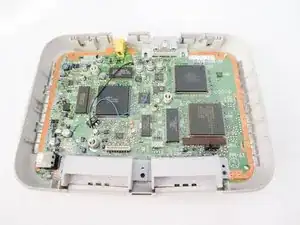

    • remove the metal plate

    well well a modded ps one hahah

    Bernabe Alvarez -

  7. WBwdGEVkDJQgsy6V
    WBwdGEVkDJQgsy6V
    wg2Mb5HAekUWDjyF
    BBZxJMuWQVMW1eJV

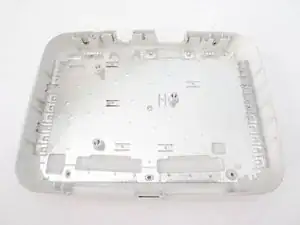

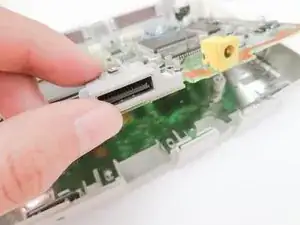

    • remove the mother board by lifting the back.

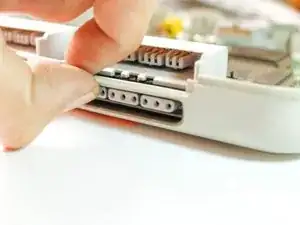

    • if you're having a hard time removing it, use your nail and lift the second controller port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
