PlayStation VR Display Replacement

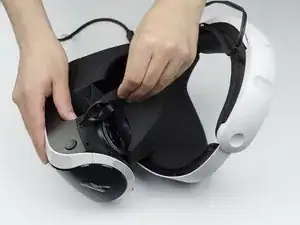

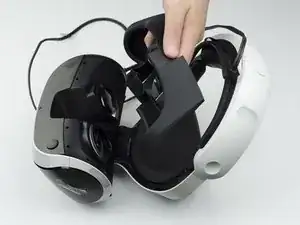

Peel back the rubber covering around the lenses to remove the surrounding plastic eyepieces.

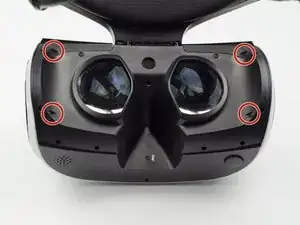

Unscrew four 13 mm screws with a PH #000 screwdriver.

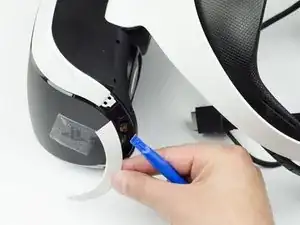

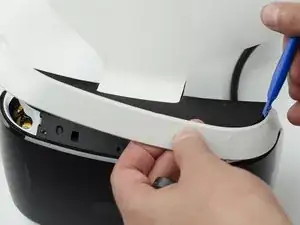

Using the plastic opening tool, carefully pry the white plastic panel free from the side of the headset. Repeat this action for the opposite side.

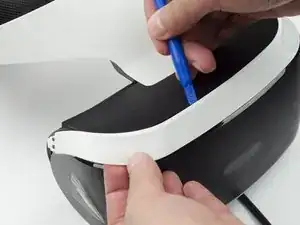

Use the plastic opening tool to pry the top white plastic panel free from the headset.

Flip the headset over.

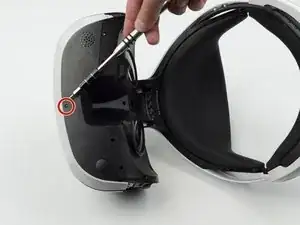

Using a PH #000, unscrew the 7 mm screw found on the bottom of the headset.

Using the plastic opening tool, pry the bottom white plastic panel loose and remove it from the headset.

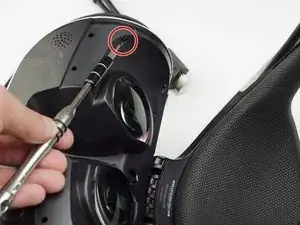

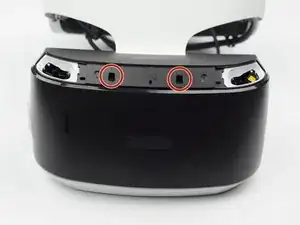

Unscrew the two 7 mm screws from the top of the headset.

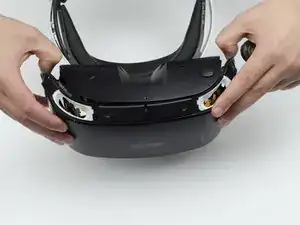

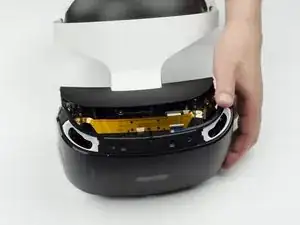

Using your fingers, carefully pry the black front panel free from the headset.

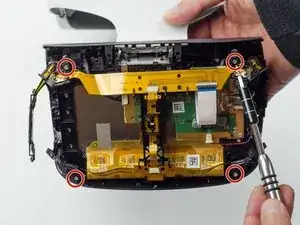

Unscrew the four silver 6 mm screws in each corner using a PH #000 screwdriver.

Lift the small silver latch attaching the ZIF (zero insertion force) connector to the circuit board.

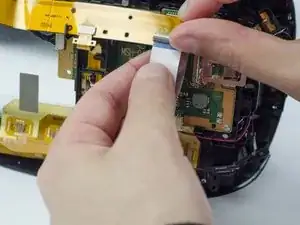

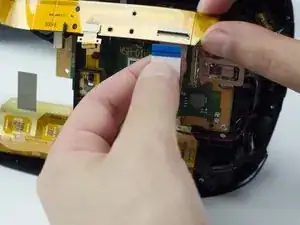

Carefully pull the end of the white ribbon connector from its slot.

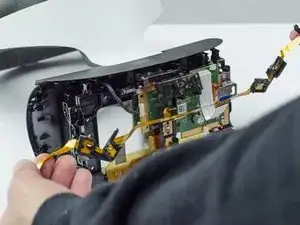

Unhitch the yellow led connector ribbon and move it aside.

Carefully pry the black plastic piece attaching the yellow ribbon to the headset away from the green circuit board.

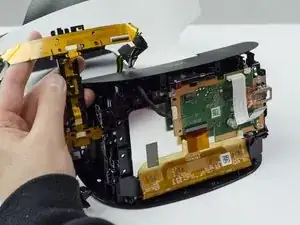

Remove the yellow LED ribbons and black plastic connecting piece from the headset.

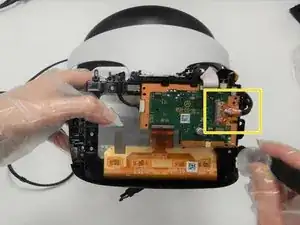

Remove the two 6mm screws on the L shaped silver clip to the upper left of the motherboard using the Phillips #000 screwdriver.

Remove the one 6mm screw that is securing the silver clip on the far right side using the Phillips #000 screwdriver.

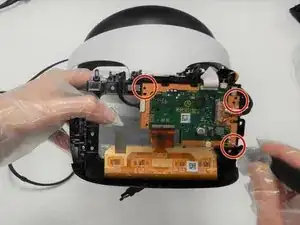

Remove the three 6mm screws from the motherboard using the Phillips #000 screwdriver.

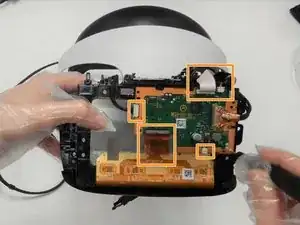

Unplug the white cable and ribbons from the motherboard(make sure to lift the gates on the ribbons before pulling out).

Unplug the HDMI cable by lifting the gate and pulling gently(there will be adhesive).

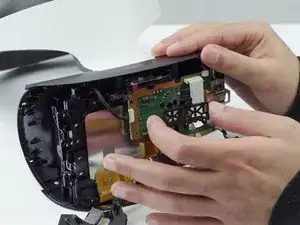

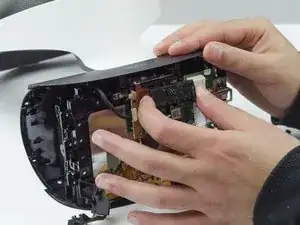

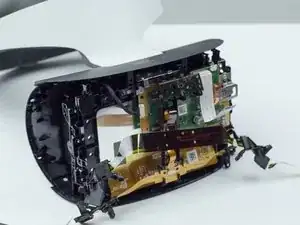

Carefully remove the motherboard and place it on a hard dry surface.

Press down firmly on the two clips on the sides of the device to remove the display.

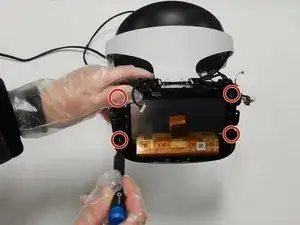

Remove the four 6mm screws holding the display in place using the Phillips #000 screwdriver.

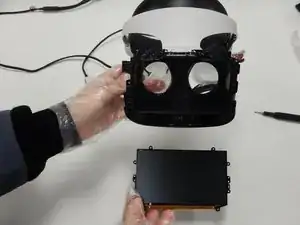

Carefully remove the display from the headset.
