PlayStation Vita Camera Replacement

Geschrieben von: Brittany McCrigler
  • Kommentare: 5
PlayStation Vita Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide takes you through installing a camera on the PlayStation Vita.

  1. bXHPdJvmOqwnRZ5W
    bXHPdJvmOqwnRZ5W
    Kxh4sK2xMaaiHQtJ

    • Power off and remove the memory card.

    • Using a Phillips #00 screwdriver, remove the four 6.4mm screws on the back casing.

  2. WwpKNcKBHnx3iwJP
    WwpKNcKBHnx3iwJP
    36FYDevnAqBvbNY3
    mjh2iFATaa2BKMEs

    • Using your fingernail or a spudger, pry open the accessory port cover on the top of the device.

    • Using a Phillips #00 screwdriver, remove the two 5.4mm screws hidden beneath the accessory port cover.

  3. AH6yWSkBJ4VWv3RB
    AH6yWSkBJ4VWv3RB
    aXih4BBWrQN2fmOK

    • Remove the two 5.4mm Phillips #00 screws on the bottom of the device near the charging port.

  4. bEJVmiEky4mHiDcb
    bEJVmiEky4mHiDcb
    aQOOn4pkOrVFR3hw
    vEQhcA4OEHFKVYLS

    • Beginning at the sides of the device, use a plastic opening tool to separate the front and rear cases.

    • Continue working your way around the device gently prying it open.

    • There are still wires holding the front and rear cases together. You may damage the connections if you yank the cases completely apart.

  5. 3BBZJmwmjKVUDiJa
    3BBZJmwmjKVUDiJa
    EpjUlyY4L4GWcaLS

    • Gently separate the two cases, minding the battery and the touch screen controller connectors holding the two cases together.

    One of the shoulder buttons fell out when I was doing this step, along with the piece holding it in place. They go back in just fine when reassembling but make sure that they are oriented properly, of course.

    klung -

  6. NeowybD4slFqYmiM

    • Using a spudger, free the touch screen controller flex cable by gently prying up the connection.

  7. DtebpV1FIAkm4AUj

    • Free the battery cable by gently prying up on the connection with a spudger.

    Any idea what type of pcb header is on the board for the battery? I have a motherboard with a broken header but I cant source a replacement

    Jimbo Jones -

    This is where I screwed up so I recommend extra caution for other newbies. Only the black part is supposed to come off. Don't be an idiot like me and pry off too much...

    ylimakiminna -

    Yea I messed up there too. Is there a way to fix it?

    Alethia Henry -

    This component was far more stubborn than the screen connector when it came to removal. I opted for a smaller tool than the spudger (small flat-head) and managed to disconnect it after determining the best bit size for the job. Screwdriver is metal, obviously, so being gentle helps to avoid damaging anything.

    klung -

  8. fkyIaVUrPDRIlhZV

    • Separate the front and rear cases.

  9. axeTPLdIDKt2GrCJ
    axeTPLdIDKt2GrCJ
    EBbGkAPGxTpErWGo

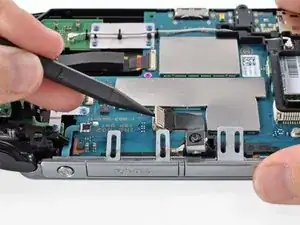

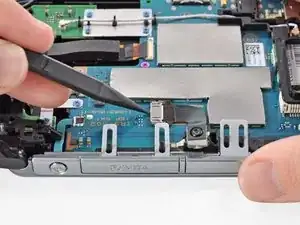

    • Release the camera flex cable socket by prying up on the tab with a spudger. Leave the socket open.

  10. HC3hFKt1ntn6Ivp3
    HC3hFKt1ntn6Ivp3
    nvp5VtijfUCgnlle
    JlbvMSdYDPeBJ5GV

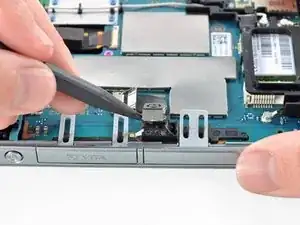

    • Using a spudger, gently pry up the camera.

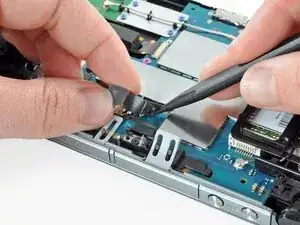

    • Work your way under the camera and along the camera flex cable, using the pointy tip of the spudger to peel away the adhesive, freeing the camera.

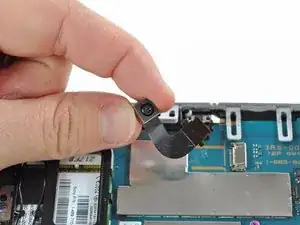

    • Carefully lift and remove the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
