PlayStation Vita Rear Camera Replacement

Using a Phillips #00 screwdriver, remove the four 6.4mm screws on the back casing.

Using your fingernail or a spudger, pry open the accessory port cover on the top of the device.

Using a Phillips #00 screwdriver, remove the two 5.4mm screws hidden beneath the accessory port cover.

Remove the two 5.4mm Phillips #00 screws on the bottom of the device near the charging port.

Beginning at the sides of the device, use a plastic opening tool to separate the front and rear cases.

Continue working your way around the device gently prying it open.

Gently separate the two cases, minding the battery and the touch screen controller connectors holding the two cases together.

Using a spudger, free the touch screen controller flex cable by gently prying up the connection.

Free the battery cable by gently prying up on the connection with a spudger.

Separate the front and rear cases.

Using the pointy end of the spudger, disconnect the three antenna cable connectors on top of the wireless card.

Deroute the antenna cables so that they are out of the wireless card casing. Rest the wires out of the way.

Hook the spudger beneath the tab on the wireless card casing and release the tab.

Peel up and remove the wireless card casing.

Remove the two 4.4mm Phillips #00 screws on the wireless card.

Pull out the wireless card.

Pry up the right shoulder button casing with a spudger and set it aside.

Remove the translucent, plastic right shoulder button cover.

Release the right shoulder button flex cable socket by using a spudger to gently pry open the tab.

Using tweezers, slide the flex cable out of the socket.

Using a spudger, gently peel up the right shoulder button from the light adhesive connecting it to casing.

Using the pointy end of a spudger, detach the antenna cable on the right button board.

Remove the antenna cable.

Using a spudger, pry up and release the ZIF socket on the right button board.

Gently pull the flex cable out of the socket. Rest the flex cable out of the way.

Release the tab on the small flex cable socket by prying up the tab with a spudger.

Using tweezers, gently pull the flex cable out of the socket. Rest the flex cable out of the way.

Remove the two 5.0mm Phillips #00 screws from the metal bracket securing the right button board to the motherboard.

Remove the metal bracket, using a spudger as necessary to lift it out.

Use a spudger to free the right button board by prying up from the bottom right corner of board.

Gently lift the right button board out.

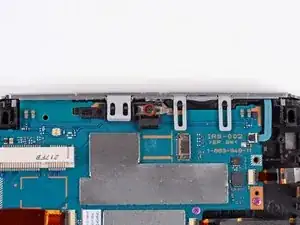

Pry up the left shoulder button casing with a spudger.

Remove the left shoulder button casing.

Remove the translucent, plastic left shoulder button cover.

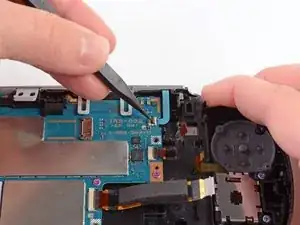

Release the left shoulder button flex cable socket by using a spudger to pry open the tab.

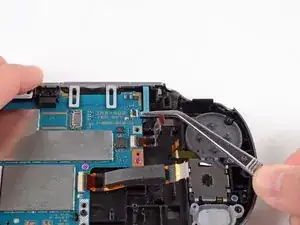

Using tweezers, slide the flex cable out of the socket. Do not pull on the black tab! Instead, pull the thin flex cable away from the connector (to the left in this image).

Using a spudger, gently peel up the left shoulder button from the light adhesive connecting it to casing.

Using a spudger, lift and release the tab on the ZIF socket sitting on the SIM card reader.

Carefully pull the flex cable out of the ZIF socket, and rest it out of the way.

Use a spudger to release the tab between the SIM card reader and the back casing assembly.

Lift the SIM card reader off the back casing assembly.

Release the plastic tab on the small flex cable socket by prying it up with a spudger.

Using tweezers, gently remove the small flex cable from the socket, and rest it out of the way.

Use a spudger to lift up the tab on the large ZIF socket.

Gently pull the flex cable out of the ZIF socket, and rest it out of the way.

Disconnect the white Wi-Fi antenna cable with a spudger.

Remove the Wi-Fi antenna cable.

Using a Phillips #00 screwdriver, remove the six screws on the two metal brackets:

Two 5.0mm, blue screws on the L-bracket securing the upper left button board to the motherboard.

Four 5.0mm, blue screws on the square bracket securing the lower left button board to the motherboard.

Starting from the upper left corner, use a spudger to pry up and remove the left button board.

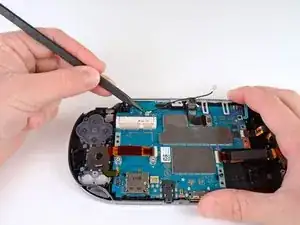

Using the pointy end of a spudger, pry up and release the GPS antenna cable from the motherboard.

Remove the GPS antenna cable.

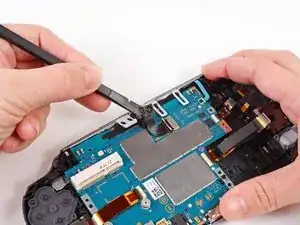

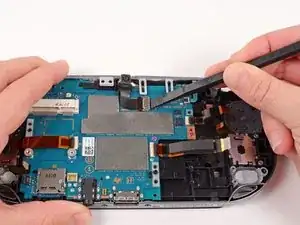

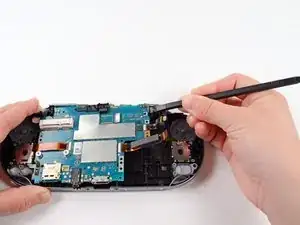

Release the camera flex cable socket by prying up on the tab with a spudger.

Using a spudger, gently pry up on the camera.

Work your way under the camera and along the camera flex cable, using the spudger to peel away the adhesive, freeing the camera.

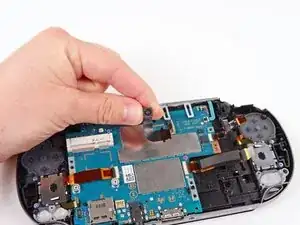

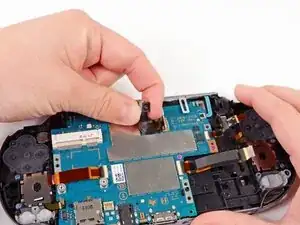

Carefully lift and remove the camera, sliding the flex cable out of the open connector socket.

Using a Phillips #00 screwdriver, remove the 6.3mm screw beneath the camera.

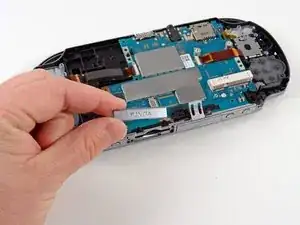

Lift and remove the metal camera bracket.

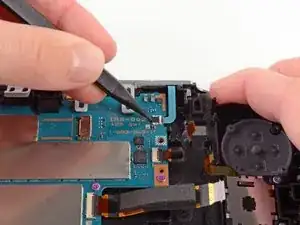

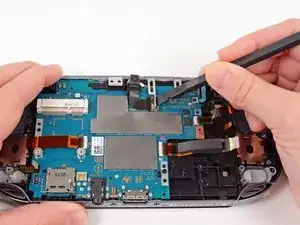

With the help of a spudger, lift and release the tab on the blue flex cable socket.

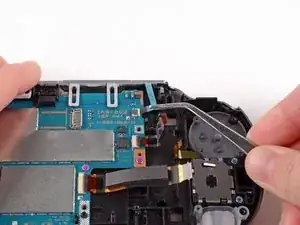

Using tweezers, gently pull the blue power flex cable out of the socket, and rest it out of the way.

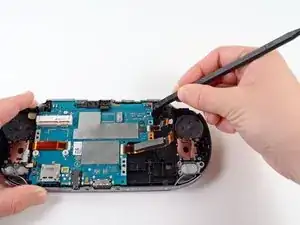

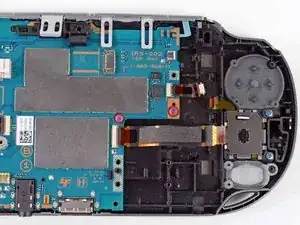

Using a Phillips #00 screwdriver, remove the two pink, 4.4mm screws securing the motherboard.

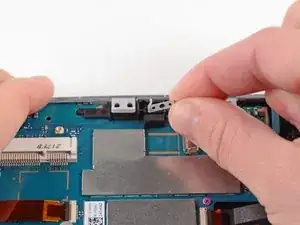

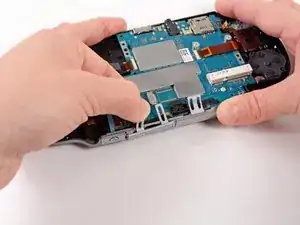

Gently peel the rubber tab of the game port cover off the plastic casing pins.

Remove the game port cover.

Gently peel the rubber tab of the accessory port cover off the plastic casing pins.

Remove the accessory port cover.

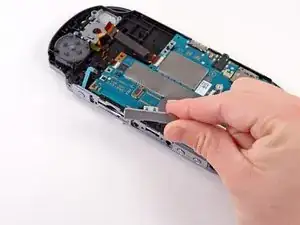

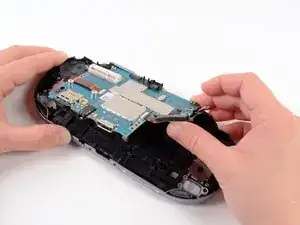

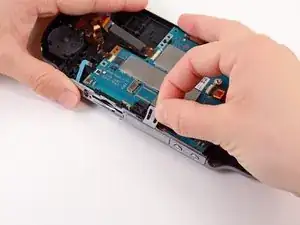

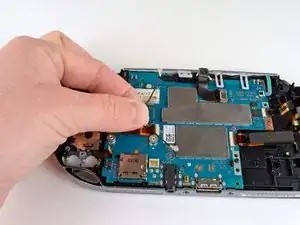

Starting at the upper right hand corner, use a spudger to gently lift the motherboard out of the casing assembly.

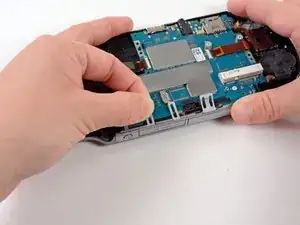

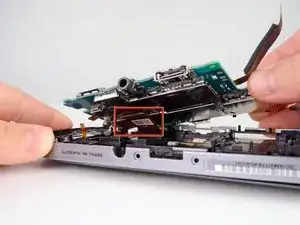

Lift the motherboard out and identify the OLED connector still attaching the motherboard to the casing.

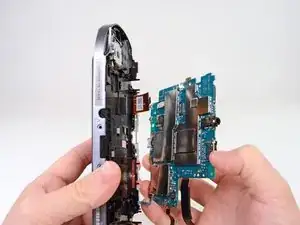

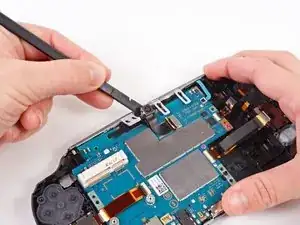

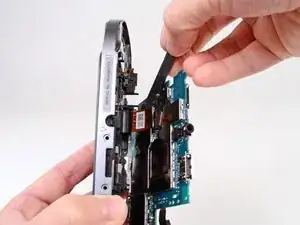

Holding the Vita on its side, use a spudger to gently pry off the OLED connector from the motherboard.

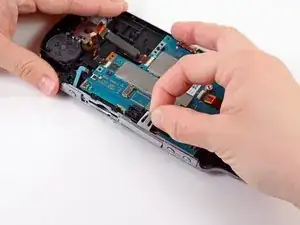

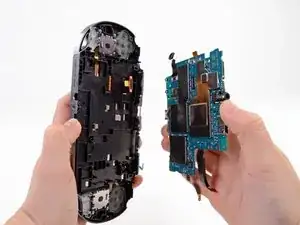

Completely separate the motherboard from the case. Set the case aside.

Flip the motherboard over so that the rear camera is facing you on the right.

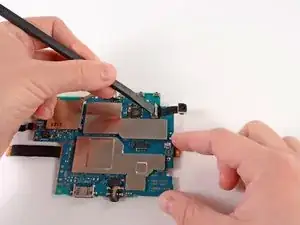

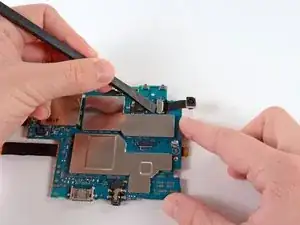

Release the rear camera flex cable socket by prying up on the tab with a spudger. Leave the socket open.

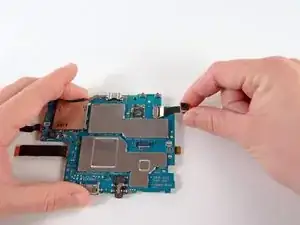

Gently pull the rear camera out of the flex cable socket.
