PlayStation Vita SIM Card Reader Replacement

Geschrieben von: Brittany McCrigler
  • Kommentare: 6
PlayStation Vita SIM Card Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide takes you through installing the SIM card reader on the PlayStation Vita.

  1. bXHPdJvmOqwnRZ5W
    bXHPdJvmOqwnRZ5W
    Kxh4sK2xMaaiHQtJ

    • Power off and remove the memory card.

    • Using a Phillips #00 screwdriver, remove the four 6.4mm screws on the back casing.

  2. WwpKNcKBHnx3iwJP
    WwpKNcKBHnx3iwJP
    36FYDevnAqBvbNY3
    mjh2iFATaa2BKMEs

    • Using your fingernail or a spudger, pry open the accessory port cover on the top of the device.

    • Using a Phillips #00 screwdriver, remove the two 5.4mm screws hidden beneath the accessory port cover.

  3. AH6yWSkBJ4VWv3RB
    AH6yWSkBJ4VWv3RB
    aXih4BBWrQN2fmOK

    • Remove the two 5.4mm Phillips #00 screws on the bottom of the device near the charging port.

  4. bEJVmiEky4mHiDcb
    bEJVmiEky4mHiDcb
    aQOOn4pkOrVFR3hw
    vEQhcA4OEHFKVYLS

    • Beginning at the sides of the device, use a plastic opening tool to separate the front and rear cases.

    • Continue working your way around the device gently prying it open.

    • There are still wires holding the front and rear cases together. You may damage the connections if you yank the cases completely apart.

  5. 3BBZJmwmjKVUDiJa
    3BBZJmwmjKVUDiJa
    EpjUlyY4L4GWcaLS

    • Gently separate the two cases, minding the battery and the touch screen controller connectors holding the two cases together.

    One of the shoulder buttons fell out when I was doing this step, along with the piece holding it in place. They go back in just fine when reassembling but make sure that they are oriented properly, of course.

    klung -

  6. NeowybD4slFqYmiM

    • Using a spudger, free the touch screen controller flex cable by gently prying up the connection.

  7. DtebpV1FIAkm4AUj

    • Free the battery cable by gently prying up on the connection with a spudger.

    Any idea what type of pcb header is on the board for the battery? I have a motherboard with a broken header but I cant source a replacement

    Jimbo Jones -

    This is where I screwed up so I recommend extra caution for other newbies. Only the black part is supposed to come off. Don't be an idiot like me and pry off too much...

    ylimakiminna -

    Yea I messed up there too. Is there a way to fix it?

    Alethia Henry -

    This component was far more stubborn than the screen connector when it came to removal. I opted for a smaller tool than the spudger (small flat-head) and managed to disconnect it after determining the best bit size for the job. Screwdriver is metal, obviously, so being gentle helps to avoid damaging anything.

    klung -

  8. fkyIaVUrPDRIlhZV

    • Separate the front and rear cases.

  9. pUCZEIUkgqnGvDXv
    pUCZEIUkgqnGvDXv
    JNf1iXLYIiVKMaJE

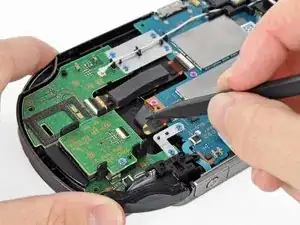

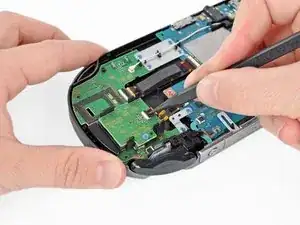

    • Gently pry open the tab of the flex cable socket on top of the SIM card reader.

    • Free the flex cable by sliding the spudger underneath it and pulling it out of the socket. Rest the flex cable out of the way.

  10. LRgAEKJJ4IF3nY1O
    LRgAEKJJ4IF3nY1O
    MLWfBgrXaZdhd1Wq
    1MBVoGH532nWIfAZ

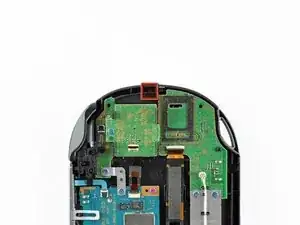

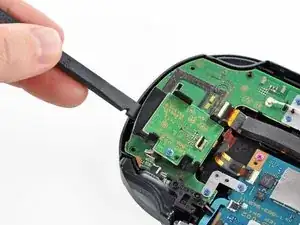

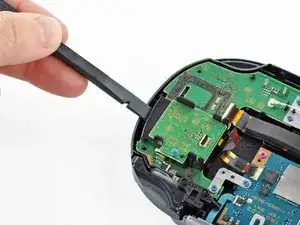

    • Use a spudger to release the plastic tab along the inside of the case and gently pry up the SIM card reader.

  11. wuUERUdTkODZScQN
    wuUERUdTkODZScQN
    VXhN6GXPCyqZjmuN
    U2M1PeGEDhgTUSRK

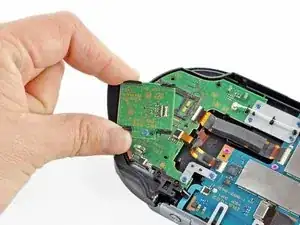

    • Lift the SIM card reader out of the casing.

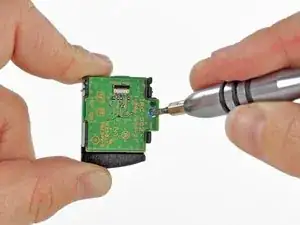

    • Using a Phillips #00 screwdriver, remove the blue, 5.0mm screw from the SIM car reader.

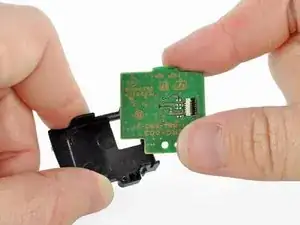

    • Separate the SIM card reader from the SIM card reader retainer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
