Plum Optimax 10 Display Replacement

Geschrieben von: Michael Glennon Graupner
  • Kommentare: 0
Plum Optimax 10 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

  1. WDeZhZKNCKEOwEgI
    WDeZhZKNCKEOwEgI
    UCVSjSM5FecKSxFk

    • Use a metal spudger to remove the small panels to the immediate left and right side of the camera.

  2. FhAdFjlpWLLqBrHf
    FhAdFjlpWLLqBrHf
    Oru3QjbJSHkru6jh

    • Use a metal spudger to begin lifting the back cover.

    • Then, create leverage and gently remove the entire cover.

  3. pucdtRRXnkd4muZT
    pucdtRRXnkd4muZT
    KLiKA5htuPr3RToV

    • Use flathead screwdriver tool to remove the three 2.5 mm screws shown in the photo. Two screws are located at the base of the motherboard and there is one screw located at the top.

  4. qHoRsAdbS2kWODRy

    • Once screws are removed, carefully remove the motherboard out of encasing.

  5. 4duxNYTvTTIAkyWS
    4duxNYTvTTIAkyWS
    PcBcatA3WgwP4axL

    • Remove electrical tape placed around the battery to keep it in place.

  6. L1jSBiaAguNGkxMw
    L1jSBiaAguNGkxMw
    vxyuFTKLJkYoRuxh

    • Use the spudger as a wedge underneath the battery to assist in removal.

    • Once loosened with the spudger, the battery is now removed from the device.

    • Always use a plastic opening tool or nylon spudger to remove batteries. Metal tools can puncture a battery and potentially catch on fire.

  7. ZC2b2LSIvK1eGJpO

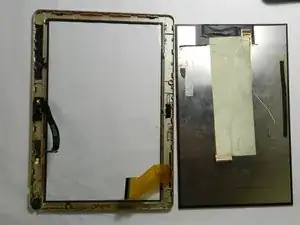

    • Gently pop the display out from the display cover by prying around the edges with a plastic opening tool or spudger.

    • The display is held in by about 4-5 clamps on each side.

    • Be careful not to crack or damage the glass display.

    • Using a metal spudger as shown in the photo has a higher chance of damaging the device. Use an ESD safe tool instead.

  8. if6g3dTGXJsSMG6s
    if6g3dTGXJsSMG6s
    LDoP2K441PGSBiOl

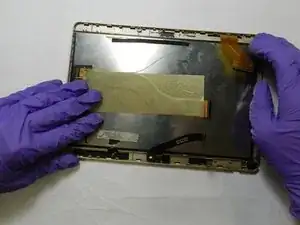

    • Insert the new display in and clamp it back into the original spot.

    • Ensure that the display is in the correct spot where the ribbon cables are able to connect it to the motherboard.

    • Make sure the display snaps back into place. Listen for "popping," and press firmly until no more sounds are made.

Abschluss

To reassemble your device, follow these instructions in reverse order.
