Einleitung

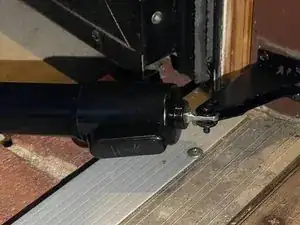

This guide explains how to replace a pneumatic door closer. This item can be used on a daily basis and is subject to stop working over time due to excessive use.
Werkzeuge
Ersatzteile
-
-

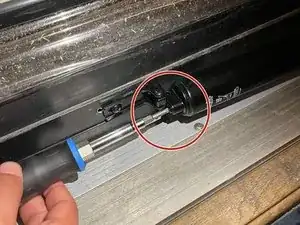

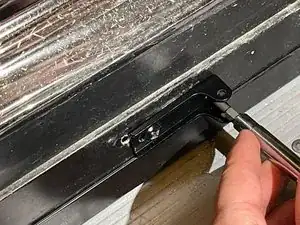

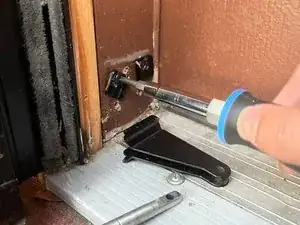

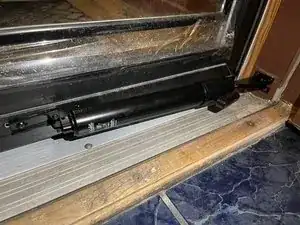

Remove the screws from the inner brackets that connect to the door closer using a screwdriver.
-
-
-

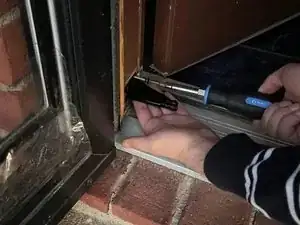

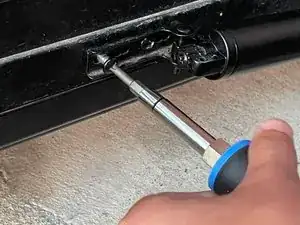

Remove the screws from the outer bracket that connect to the door closer using a screwdriver.
-
-
-

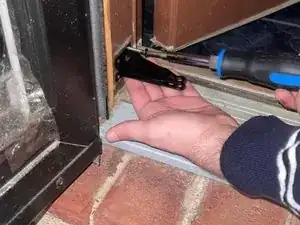

Install the inner bracket that attaches to the door closer by screwing the inner part into the wall using a screwdriver.
-
-
-
Close the door.
-

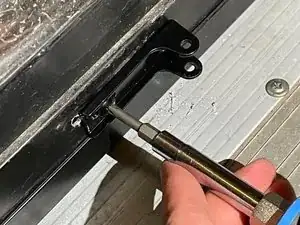

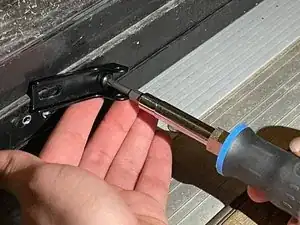

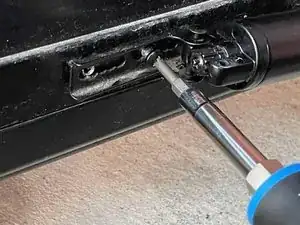

Install the outer bracket that attaches to the door closer by screwing it into the door using a screwdriver.
-
-
-

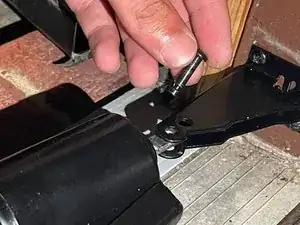

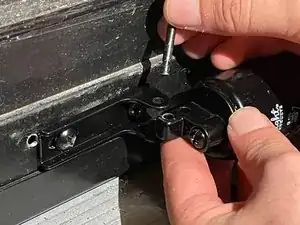

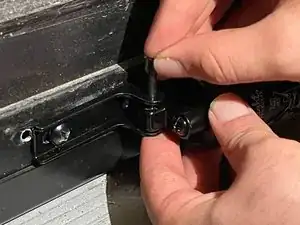

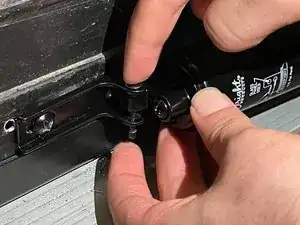

Attach the door closer into the installed outer bracket by plugging the larger included screw into the inner part.
-
-
-
Make sure the door closes and opens properly.
-

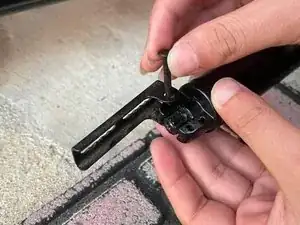

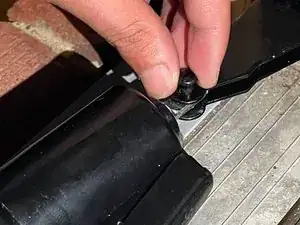

Adjust the hydraulics by loosening or tightening the screw on the top of the hydraulic axle to have optimal performance.
-
