Motherboards can be damaged when there is injury to the device or even during a power surge. When either occurs, this often results in a computer that will not power on or respond. This guide shows how to replace a defective motherboard in a Poin2 Chromebook 11.
-
-
Power down the Poin2 Chrombook 11 and disconnect the power adapter.
-
Close the Chromebook and position it with the base facing up.
-

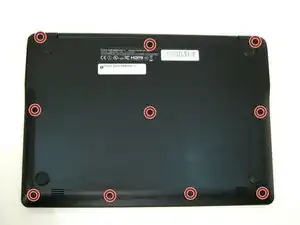

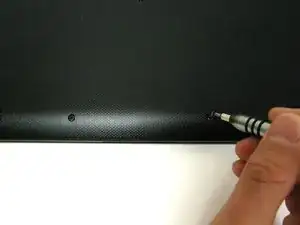

Use a #0 Phillips screwdriver to unscrew the ten 7mm screws that hold the base to the rest of the frame
-
-
-

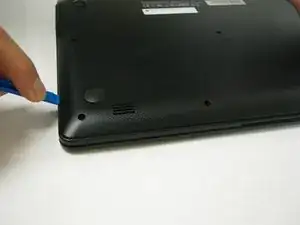

Insert a 1cm-wide plastic opening tool between the base and top frame.
-
Pry (up and down) around the entire border of the Chromebook to separate.
-

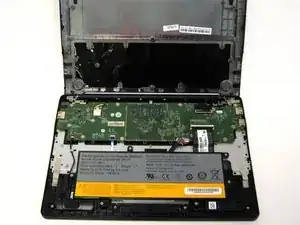

Use your hands to gently lift the base away from the frame.
-
-
-

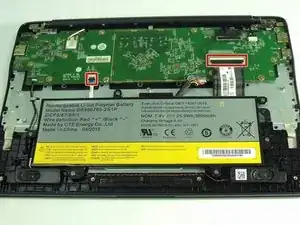

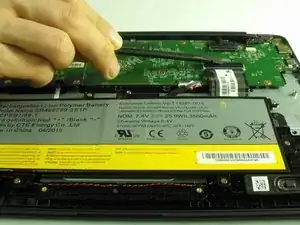

Unplug the white 8-wire battery connector using a spudger to push the two L-shaped clips out of the socket.
-
-
-

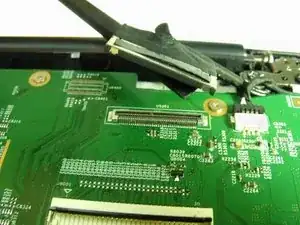

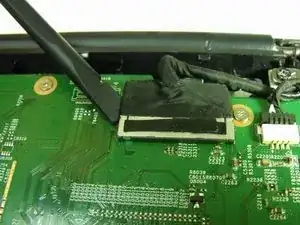

Use a spudger (or fingertips) to flip up the plastic clamps that hold down the two ribbon cables connected to the motherboard.
-
Pull the cables from their sockets.
-
-
-

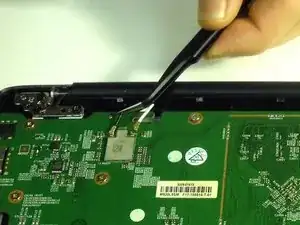

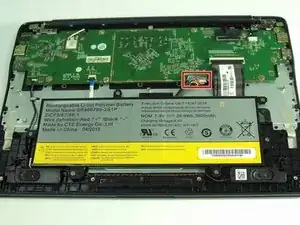

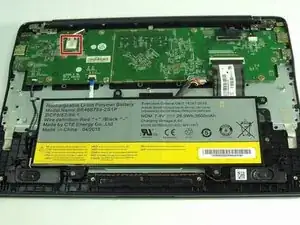

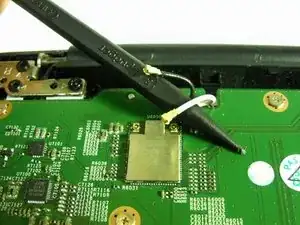

Disconnect the coaxial connectors from the motherboard using tweezers (or a spudger) to "snap" off the connectors from their sockets.
-
-
-

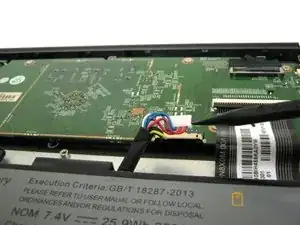

Disconnect the speaker and charging port cables by pulling the connectors out of their sockets.
-
-
-

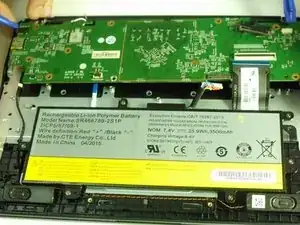

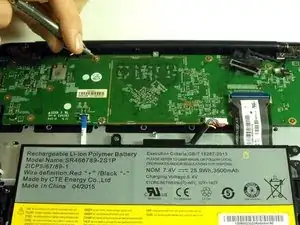

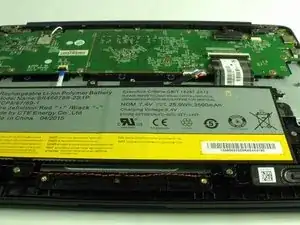

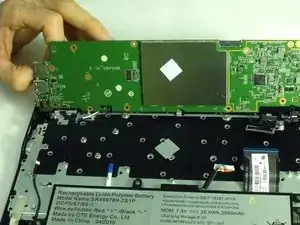

Use a #000 Phillips screwdriver and remove the twelve 4mm screws that hold the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
