Poin2 Chromebook 11 Speaker Replacement

Geschrieben von: Whitney Lunny
  • Kommentare: 1
Poin2 Chromebook 11 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide shows how to replace the speakers of the Poin2 Chromebook 11.

  1. rv2rcKpqB3Jh4K1P
    rv2rcKpqB3Jh4K1P
    crWMNKYgRxuKymcJ

    • Power down the Poin2 Chromebook 11 and disconnect the power adapter.

    • Close the Chromebook and position it with the base facing up.

    • Use a #0 Phillips screwdriver to unscrew the ten 7mm screws that hold the base to the rest of the frame

    • Poin2 Chromebook 11 does not have screws under its rubber feet at the base.

    Rubber feet at the base DO have screws. I broke mine not knowing this.

    Marty -

  2. xwwkGfcphik6A4FI
    xwwkGfcphik6A4FI
    4NtYBYkHVV6GrwOI
    WmTfNd2NRqErNRiU

    • Insert a 1cm-wide plastic opening tool between the base and top frame.

    • Applying pressure up and down with the tool may be necessary. When you hear a "click," this indicates the separation of the frame.

    • Pry (up and down) around the entire border of the Chromebook to separate.

    • Use your hands to gently lift the base away from the frame.

  3. yWigJn6KTdBBSvSU
    yWigJn6KTdBBSvSU
    QVmm5St4ZBUIu2RG
    twAQNZhLa4FZUuKR

    • Disconnect the white 8-wire battery connector from the motherboard using a spudger to push the two L-shaped clips out of the port.

    • The connector is a tight fit and requires careful pressure for release.

  4. 2TeWTMCvwP4jmEBL
    2TeWTMCvwP4jmEBL
    64w5XX6EIKbZD2WH

    • Remove the six 4mm screws using a Phillips #0 screwdriver.

  5. Aq1duPsfdPysqa1v

    • Lift the battery from the frame.

  6. XTZMVDWjgTPGWdEw
    XTZMVDWjgTPGWdEw
    V26OlsYClXHEbFeC

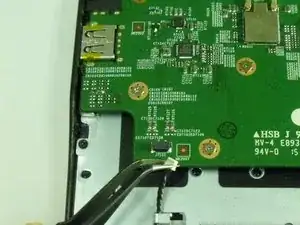

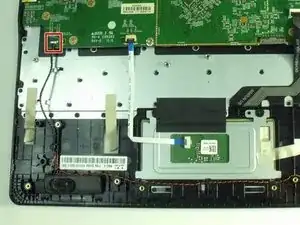

    • Unplug the black speaker cable from the lower, left side of the motherboard.

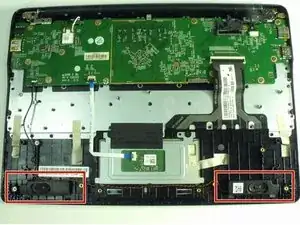

  7. L55J1koDDE6VSFhh
    L55J1koDDE6VSFhh
    6dXNXMi4IjFyUwBd
    DfXJnx1wUSdBw5Z3

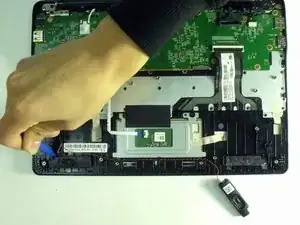

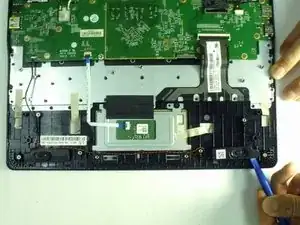

    • Use the opening tool to pry the two speakers away from the frame.

    • An adhesive strip attaches each speaker to the frame. The speakers should pull away with moderate force.

  8. XkQlSXPh5dP2oDf6
    XkQlSXPh5dP2oDf6
    iqkirJh3UJO6LLmL

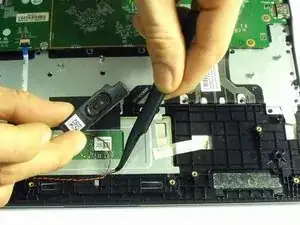

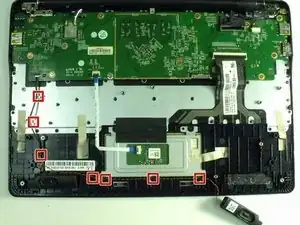

    • Detach the speaker cord from the hooks holding it to the frame and lift the speakers away.

Abschluss

To reassemble your device, follow these instructions in reverse order.
