Poin2 Chromebook 11 Touchpad Replacement

Geschrieben von: Henry Covey
  • Kommentare: 1
Poin2 Chromebook 11 Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

This guide shows how to replace a defective touchpad from a Poin2 Chromebook 11.

  1. rv2rcKpqB3Jh4K1P
    rv2rcKpqB3Jh4K1P
    crWMNKYgRxuKymcJ

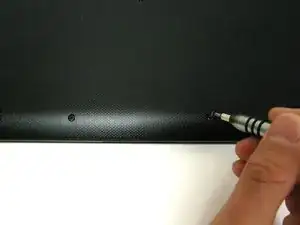

    • Power down the Poin2 Chromebook 11 and disconnect the power adapter.

    • Close the Chromebook and position it with the base facing up.

    • Use a #0 Phillips screwdriver to unscrew the ten 7mm screws that hold the base to the rest of the frame

    • Poin2 Chromebook 11 does not have screws under its rubber feet at the base.

    Rubber feet at the base DO have screws. I broke mine not knowing this.

    Marty -

  2. xwwkGfcphik6A4FI
    xwwkGfcphik6A4FI
    4NtYBYkHVV6GrwOI
    WmTfNd2NRqErNRiU

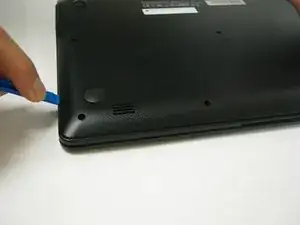

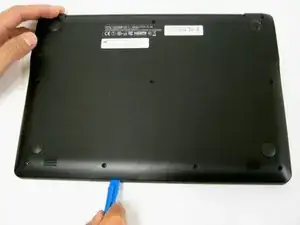

    • Insert a 1cm-wide plastic opening tool between the base and top frame.

    • Applying pressure up and down with the tool may be necessary. When you hear a "click," this indicates the separation of the frame.

    • Pry (up and down) around the entire border of the Chromebook to separate.

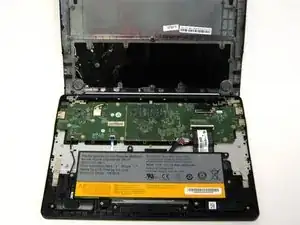

    • Use your hands to gently lift the base away from the frame.

  3. yWigJn6KTdBBSvSU
    yWigJn6KTdBBSvSU
    QVmm5St4ZBUIu2RG
    twAQNZhLa4FZUuKR

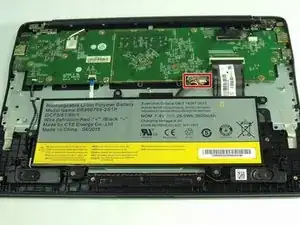

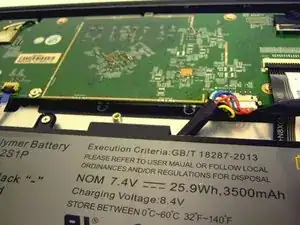

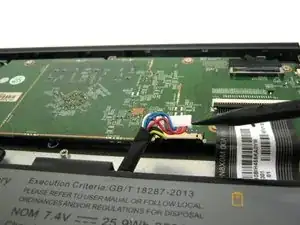

    • Disconnect the white 8-wire battery connector from the motherboard using a spudger to push the two L-shaped clips out of the port.

    • The connector is a tight fit and requires careful pressure for release.

  4. 2TeWTMCvwP4jmEBL
    2TeWTMCvwP4jmEBL
    64w5XX6EIKbZD2WH

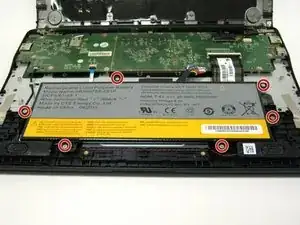

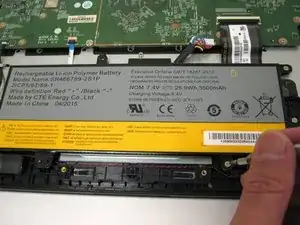

    • Remove the six 4mm screws using a Phillips #0 screwdriver.

  5. Aq1duPsfdPysqa1v

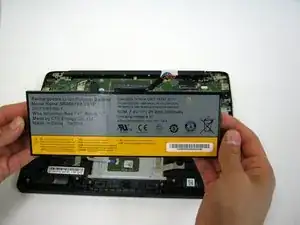

    • Lift the battery from the frame.

  6. yOHXsSprUIB5Z3fo
    yOHXsSprUIB5Z3fo
    fTaNpa2QUGnpKwrs
    jNdsrH6itmDZwFqS

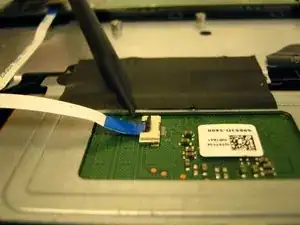

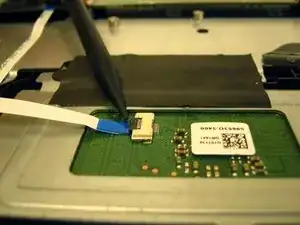

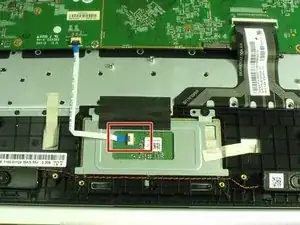

    • Locate the ZIF connector on the touchpad's circuit board.

    • Use the tip of the spudger to flip the locking flap to the perpendicular position and pull the cable out.

    • See also the Connectors Guide for detailed instructions, as well as iFixit's cable connectors guide.

  7. qmKrvoKTKot2JZnW
    qmKrvoKTKot2JZnW
    gOgTOvxyRmm2Id41
    Gfq3LNFP1rWgRObO

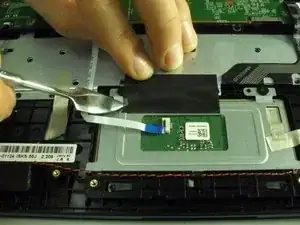

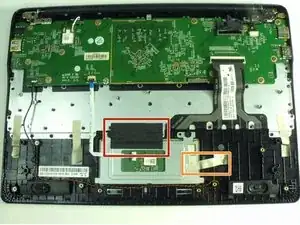

    • Remove the black tape holding down the touchpad.

    • Remove the strips of gold electrostatic tape also holding down the touchpad.

    • Use a metal spudger or tweezers to help pry up the corners of the tape, but be careful not to use to much force or risk damaging the heat sink.

    • Applying new tape is suggested, but the tape can be re-used.

  8. 2UYTfdnJhlJCitlI
    2UYTfdnJhlJCitlI
    BS6BcMFnqK16PPps

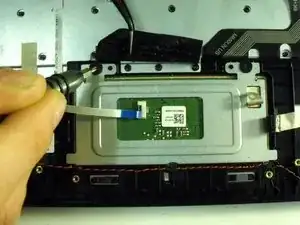

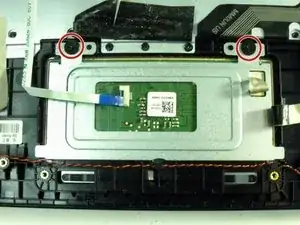

    • Use a Phillips #00 screwdriver to remove the two 2 mm screws securing the metal plate that holds the touchpad in place

  9. HaDcWTsBTfXrIWTU

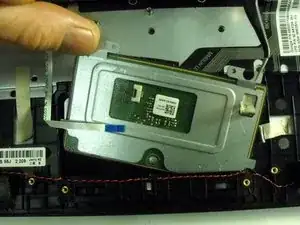

    • Slide the touchpad plate in the direction of the screw holes to free the plates bottom edge from under the plastic frame.

  10. pp3T2HtOpMehIbAw

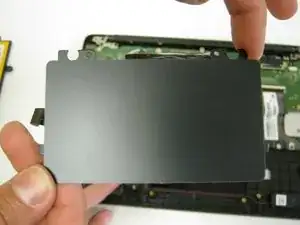

    • Remove touchpad from the opposite side of the metal plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
