Polaroid Automatic 100 Bellows Replacement

Geschrieben von: Katie Miller
  • Kommentare: 0
Polaroid Automatic 100 Bellows Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 30 Minuten

Einleitung

The bellows are the part of the camera that may be made of a material that is shiny and looks like the fluid part of an accordion.

  1. fmNXn4N5yfUUwSsc
    fmNXn4N5yfUUwSsc
    HPXQBnSApY1AW5kv
    AWeRmKx5eoAgsY4Q

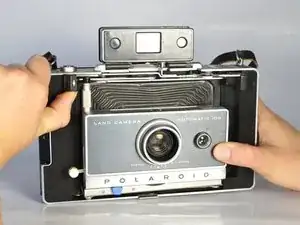

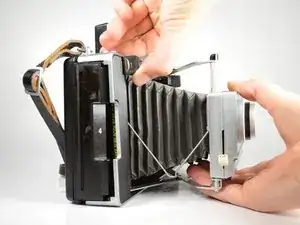

    • Fully extend the bellows by lifting the #1 lever.

    • Remove the camera cover in order to make the camera easier to work with.

    • When collapsing bellows, press down on the metal frame above the bellows.

  2. KeFimShTxXIUdM5g

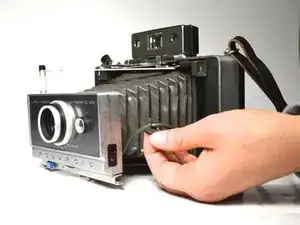

    • Peel the two battery cable tabs off of the bellows.

  3. LmYX5ZyUZN5VMT3w

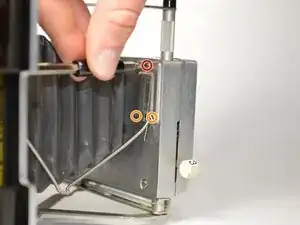

    • Remove one 15.5 mm flat head screw, with a 2.5 flathead screwdriver.

    • Remove two 2 mm flat head screws, with a 2.5 flathead screwdriver. Then carefully remove the cable cover.

    • Use the focus bar to extend bellows even further to access screws easier with the screwdriver.

  4. XonDUDUybZHtfOZO
    XonDUDUybZHtfOZO
    ETr2ANnTnmHIE535

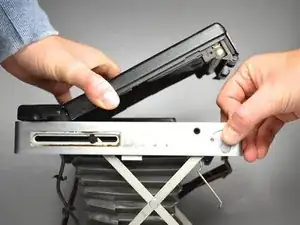

    • Open the back cover by pushing the lever on the bottom towards the left.

  5. ldPjyFinaSDTE4TX

    • Remove the four 3 mm screws, which are attached to the lens of the camera, using a Phillips #0 screwdriver.

    • To make the screws easily accessible, close the bellows by pushing on the metal frame.

    • When reassembling, orient the camera so that screws are screwed in downward and stay in place.

  6. 5kXJE4jEdUloErJT

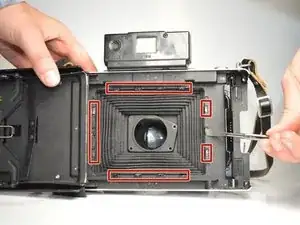

    • Carefully use a classic wide metal spudger to bend the tabs of the bellows.

  7. HcGNGNc6qKF3kRhf
    HcGNGNc6qKF3kRhf
    nPjxbY5WNShx2XCT

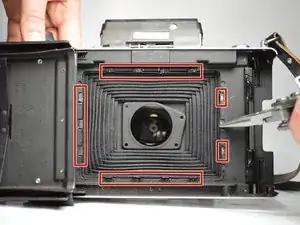

    • Pull the bellow tabs back with long needle nose pliers.

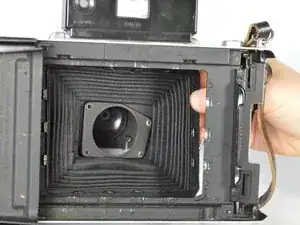

    • Remove the bellows.

Abschluss

To reassemble your device, follow these instructions in reverse order.
