The spread roll spring is a vital part of the polaroid that ensures that your developing photo will exit the camera once your photo is taken.
Werkzeuge
-
-

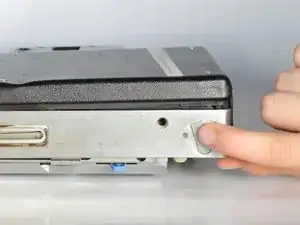

Push the lever on the bottom of the camera towards the left.
-

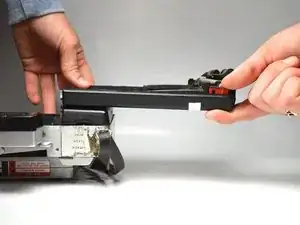

Open the rear door of the camera.
-
-
-

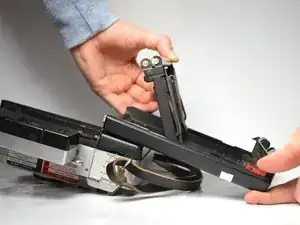

Unlatch the red clip on the side.
-

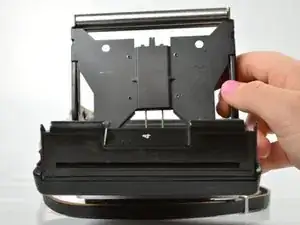

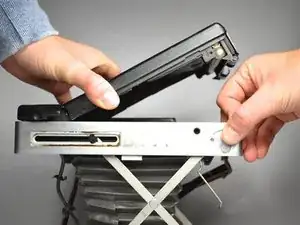

Lift the rollers up.
-
Position the camera with the back cover closest to you.
-
-
-

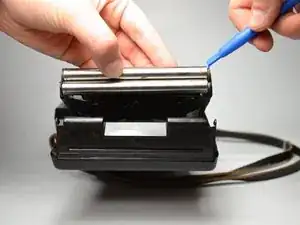

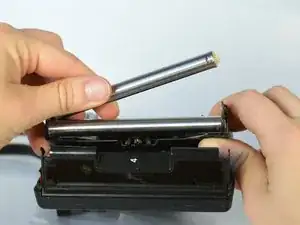

Remove the rear roll by using the plastic opening tool to take it off the metal frame.
-

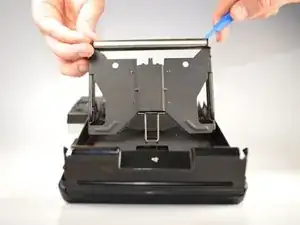

Then remove the front roll by pushing away from you with the plastic opening tool.
-
-
-

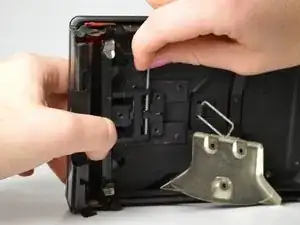

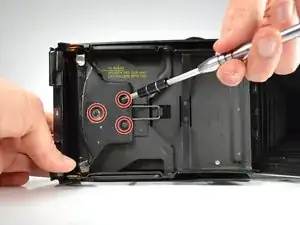

Unscrew the three 2.5 mm screws (attached to the metal plate) with a 3.0 flathead screwdriver. Then take off the metal plate.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
