Polaroid Cube Video Quality Switch Replacement

Geschrieben von: Grant Baldwin
  • Kommentare: 0
Polaroid Cube Video Quality Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

10 - 35 Minuten

Einleitung

This guide will walk you through the video quality switch on your Polaroid Cube. Make sure the device is completely powered off before disassembly, and that you have all of the required tools.

  1. DdJ4o4omaATKXYis

    • Remove the SD card cover by twisting it using a Plastic Opening Tool

  2. ZF2XcMkKIMyJH2TO

    • Use the Plastic Opening tool to pry off and remove the front cover.

  3. mTBBGPlIPsGIRPXG

    • Using a J00 head screwdriver, remove the four 3.27mm screws from the front of the camera near the lens.

  4. uQyg2VtQAltWS6jN
    uQyg2VtQAltWS6jN
    wdrqvfvc3wEm4wnL

    • Use the Plastic Opening Tool to pry open the shell of the camera.

    • There are four latches, one at each corner, that you will need to detach.

  5. oLHYAbWJ2TRYQYNa

    • Remove shell from top and bottom of camera.

  6. DPoBKMk32PLUdhC4

    • Remove the rubber seal wrapped around the camera.

  7. b4GRdqaHSWkZHZUU
    b4GRdqaHSWkZHZUU
    G6BOElMnKnxjauyK

    • Remove the tape wrapped around the battery.

  8. eIjtgoOcUiwL3qDN
    eIjtgoOcUiwL3qDN
    VFcVrCJiZKIrpYst
    SKEUcJelxqHueYRP

    • Using a J00 head screwdriver, unscrew the four 3.46mm screws from the top and bottom circuit board.

  9. ZcjVLyOIVQHLqxsI
    ZcjVLyOIVQHLqxsI
    tuMxlBpYHkHlxSVx

    • Use the plastic opening tool to remove the circuit board that the battery is connected to.

  10. e2MFvRd2xXKuvWYp

    • Gently remove the battery pin connector from the circuit board.

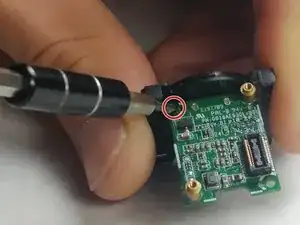

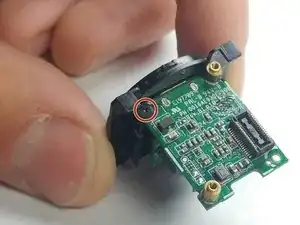

  11. ytMVjkEnrtIAbQP1
    ytMVjkEnrtIAbQP1
    EVcWM2WLvVBNfpn5

    • Using a J00 head screwdriver, unscrew the 3.46mm screw that connects the top circuit board to the video quality switch board.

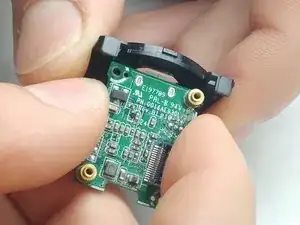

  12. jsNi1AKLqL1AeBdG

    • Remove the circuit board.

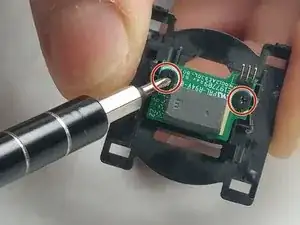

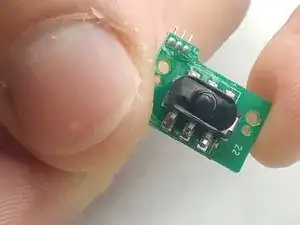

  13. cVnfZrWfQLPciGdO
    cVnfZrWfQLPciGdO
    dJHwLD3FqOAq1YIj

    • Using a J00 head screwdriver, unscrew the two 3.46mm screws connecting the video quality switch to the case.

    • Remove and replace the broken video quality switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
