Polaroid One-Step 600 Lens Replacement

Geschrieben von: Doug Jimenez
  • Kommentare: 1
Polaroid One-Step 600 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to replace the lens on your Polaroid camera if it breaks or gets scratched. However, you should be careful with your Polaroid, as the plastic is very fragile.

  1. XDZJoeZoL3Pu1O5O
    XDZJoeZoL3Pu1O5O
    6KSW1iEbZhad65T5
    xHX5LGMyqHcC5lZi

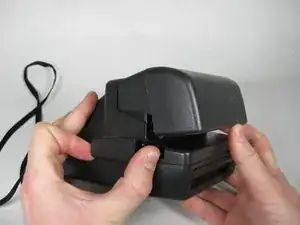

    • Open the flash compartment of the camera so it makes a 30 degree angle with the horizontal.

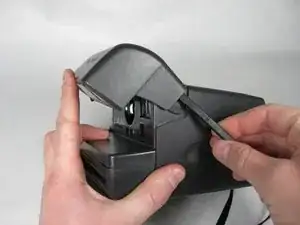

  2. eUZUOS2gQWgUxy4d
    eUZUOS2gQWgUxy4d
    ymrJAfLKTGPZYlsa

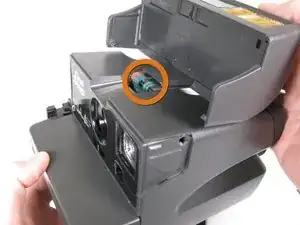

    M2UcTe5wKBe6sVLp

    • Separate the flash section of the camera from the main body by unhooking the sides with the spudger.

    • BE CAREFUL NOT TO YANK THE TWO SECTIONS APART BECAUSE THE BAND WIRE STILL ATTACHES THEM!

  3. g1TsnMwcyf6ATGfe
    g1TsnMwcyf6ATGfe
    L6X2RP2WDcoTepdS
    SOLMxqPSr2yABCSM

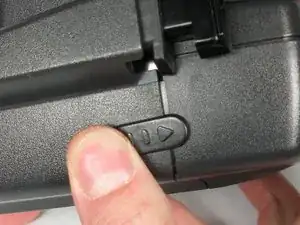

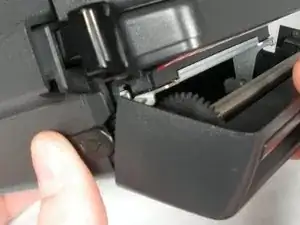

    • Fully open the battery/ cartridge compartment by sliding the side tab toward you.

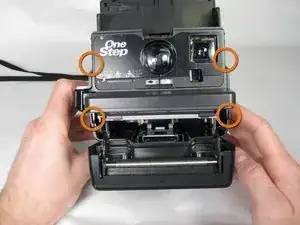

  4. QqobeXrluOffkqZV
    QqobeXrluOffkqZV
    bRDCxUYiDfoeuKCa

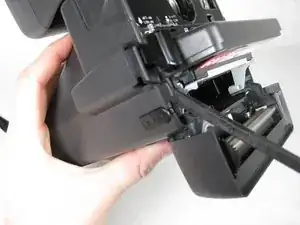

    FoTSHROu4YguicyN

    • Insert spudger in between face of camera and sides where the four tabs are located.

    • BE CAREFUL! The button that is pressed to take a picture may pop out of the camera at this step.

  5. odxwn1mFddNBSg1p
    odxwn1mFddNBSg1p

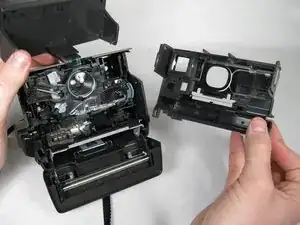

    FCfAbWIDpRCOO4Lr

    • Once tabs are released, pull face of camera straight out.

  6. elGCfLgCLqYVIvFK

    • Use spudger to twist the notch on the lens into the opening to remove it.

  7. 12cvHjDOFTYhnFuJ

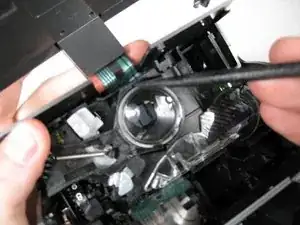

    12cvHjDOFTYhnFuJ

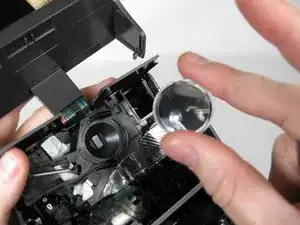

    2s6rlxPfpLKUVW4q

    • Carefully use spudger to release lens, then lift lens out of camera with fingers.

    • CAUTION: LENS MAY POP OUT OF CAMERA; REMOVE CAREFULLY.

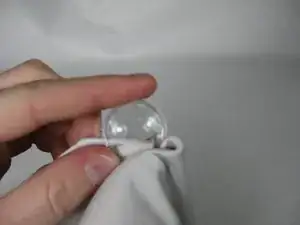

  8. kiEZuVFG4rLynPRx

    • Clean old lens with a microfiber cloth or get a new lens to put back into the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
