Polaroid OneStep 2 Lens Replacement

Geschrieben von: Abby Boucher
  • Kommentare: 4
Polaroid OneStep 2 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

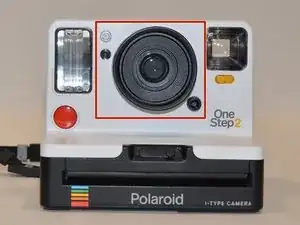

If you need to replace the lens this is guide will allow you to do so. You may need to replace the lens if it becomes scratched or cracked. For this replacement guide you will need to use the Shutter Switch replacement guide steps 1-4 as a precursor guide.

  1. ltQyAWSGkkxHu6eY
    ltQyAWSGkkxHu6eY
    Qb6pGnytNrOsXT4C
    Q2CCUjSgtoxWDNGN

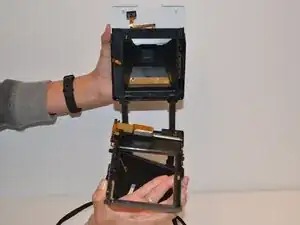

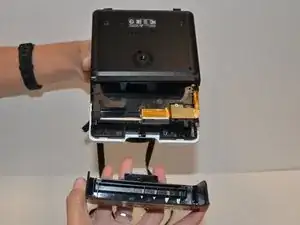

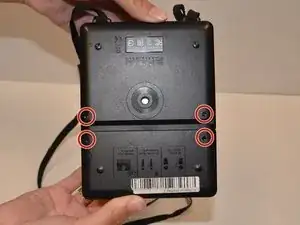

    • Unscrew the four Phillips #0 5 mm screws on the base of the camera.

    • Remove the two pieces of the base.

  2. Pn26YWprrU1RRcVY
    Pn26YWprrU1RRcVY
    yhZMIMdSfZn1QZjK
    GNRdWIGW3mc6lP6N

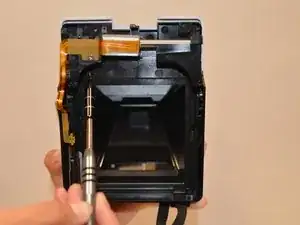

    • Remove the four Phillips #0 5mm screws on the top of the inside base piece.

    • Remove the Phillips #0 5mm two screws on the bottom of the inside base piece nearer the strap.

    not correct. what about the electrical connections?

    Tekin -

    also you do not need to unscrew the back mirror unit. if you take it off you can not put it back and it is not necessary. I learned the hard way, I can not put it back.

    Tekin -

  3. JEZPhrAfbOML6e5m

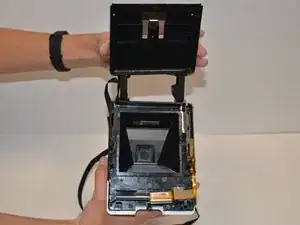

    • Remove the black inside base piece.

    BE CAREFUL! This is missing the part where there are two ribbon cables that connect to the upper body of the camera. If you take the back board off without disconnecting the one closest to the front and side of the camera you are likely to break them.

    primate.uprising -

  4. PkGFGsYiAbHJ1w6d
    PkGFGsYiAbHJ1w6d
    KlPqHSgGqwJRoZeh

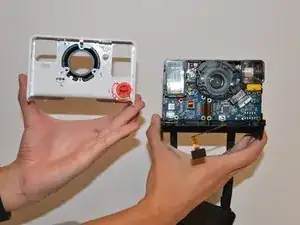

    • With force separate the white front piece from the back of the camera. You will use your hands and pull it apart.

    The white front isn't coming off. What do i do?

    Lia Biasi -

  5. Ey4kupCyMmTZy26r
    Ey4kupCyMmTZy26r
    vB2YmCVrAQa3orso
    fUWmHH4gKUVTxerF

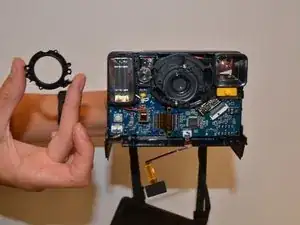

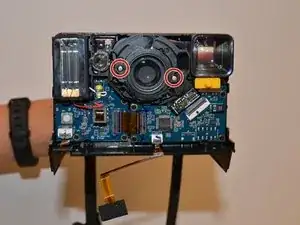

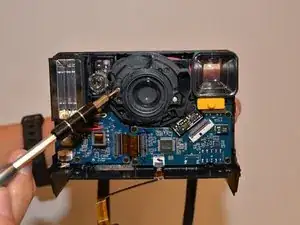

    • Remove the two Phillips #0 3mm screws on the black ring holding the lens in place and remove the ring.

  6. SNhkhaEmRIXaAUNN
    SNhkhaEmRIXaAUNN
    EoPMiMvmiMUIlbmi

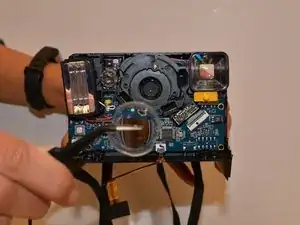

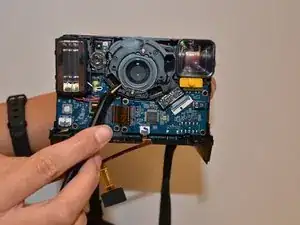

    • Remove the clear plastic lens with tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
