Einleitung
If you need to replace the shutter switch, use this guide to access the inside of the camera. You may need to replace the shutter switch if your shutter is not firing and your camera is not taking photos.
Werkzeuge
-
-
Remove the four 5mm screws on the base of the camera using a Phillips #0 screwdriver.
-
Remove the two pieces of the base.
-
-
-
Remove the four 5mm screws on the top of the inside base piece using a Phillips #0 screwdriver.
-

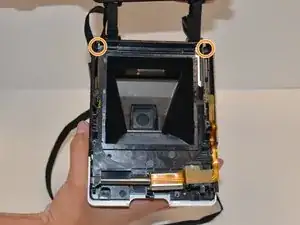

Remove the two 5mm screws on the bottom of the inside base piece which is near the strap with the same screwdriver.
-
-
-
With force separate the white front piece from the back of the camera. You will use your hands and pull it apart.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
