In this guide, the user will be instructed in removing the special feature of this camera, the close up lens.
Werkzeuge
-
-
Begin by opening the top of the camera (flash assembly) to a slight angle.
-
Next, angle the flash assembly slightly upward and pry off the connections carefully.
-
-
-
Insert the blue plastic opening tool between the rear case and the plastic tabs directly under the shelf, and pry it loose.
-
Pull off the face plate.
-
-
-
Pry off the slider (the light gray piece) by slipping it out from beneath the tabs (their location is indicated by the two red circles).
-
-
-

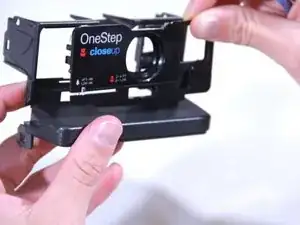

Pry off the face plate at the locations shown by using a rigid prying tool (either tweezers or the blue plastic opening tool). These spaces can be very tight.
-
You'll know if you were successful if you can fully remove the face plate.
-
-
-

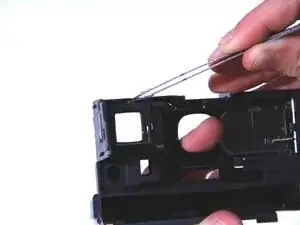

Use tweezers to lift the ring of the spring off of the hook it is attached to.
-

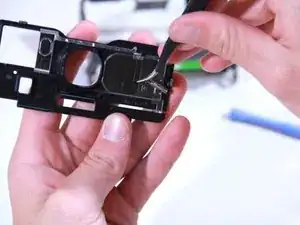

Gently loosen and remove the spring.
-
-
-

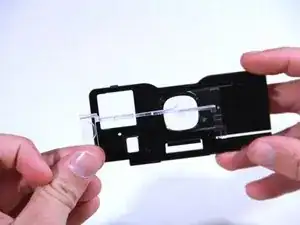

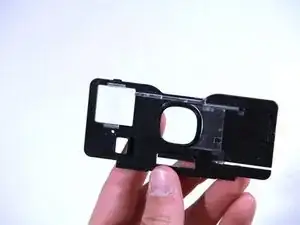

Slide the CloseUp lens piece all the way to the left. It should separate without any resistance.
-
-
-

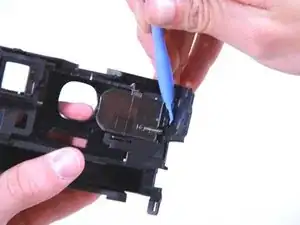

Make sure the last plastic piece is set all the way to the right. Using the blue plastic tool, pry it loose. It should easily pop out.
-
To reassemble your device, follow these instructions in reverse order.
