Einleitung
This guide will teach you how to face off the face plate of the camera to and take out the forward viewfinder.
Werkzeuge
-
-
Begin by opening the top of the camera (flash assembly) to a slight angle.
-
Next, angle the flash assembly slightly upward and pry off the connections carefully.
-
-
-
Insert the blue plastic opening tool between the rear case and the plastic tabs directly under the shelf, and pry it loose.
-

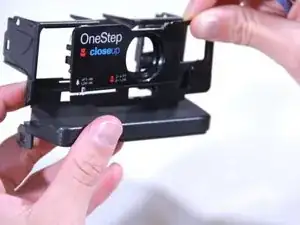

Pull off the face plate.
-
-
-
Once you have the face plate removed the first thing to do is pry off the slider (the light grey bar near the bottom). The easiest way to accomplish this is to place the tweezers where the red circles are to pop the piece out.
-
-
-

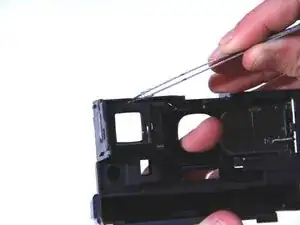

Use the tweezers at the locations shown in the first two pictures to remove the face plate shown in the third picture.
-
This is a pretty secure fit in most cases so it might take a bit of tinkering to get the plate to pop off.
-
To reassemble your device, follow these instructions in reverse order.
