Polaroid PMID701i 10 Screen Replacement

Geschrieben von: Amy Li
  • Kommentare: 1
Polaroid PMID701i 10 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 15 Minuten

Einleitung

If the screen fails to display properly, consider using this guide to replace it.

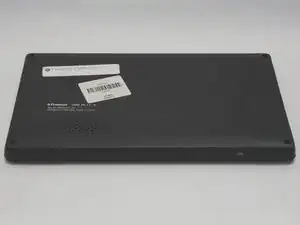

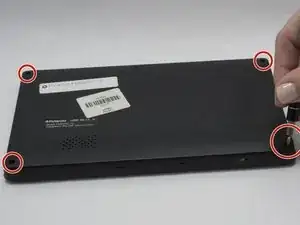

  1. GbCYnWI5VIOu4RYw
    GbCYnWI5VIOu4RYw
    GBNQaw1BfWqhBm2F

    • Turn off and unplug the device before starting replacement.

    • Flip the device so that the screen faces down, with the back facing up.

    • The back panel attaches to the device with four 4.0mm long screws, one at each corner, indicated by the red circles in the picture.

    • Unscrew the four screws with a PH000 screwdriver.

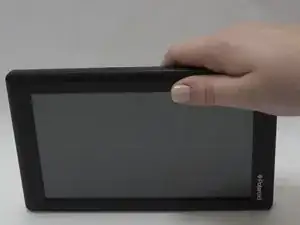

  2. Suf2NRN1XNd3nLNk
    Suf2NRN1XNd3nLNk
    JhvOPgxmlDo1NrAG

    • Flip the device over so that the screen faces up, and the back faces down.

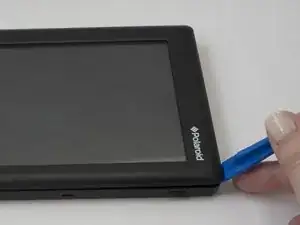

    • Separate the front panel using the Opening Tool on a corner to create an opening.

    • Removing the frame for the first time may take a significant amount of force.

    • Run the tool along the seams of the device to open up all the sides.

  3. 2YURiJe1wlWrejMO

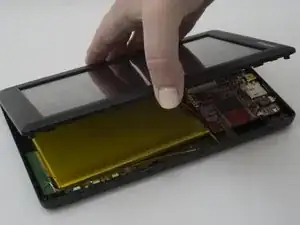

    • Removing the panel too quickly may damage the cable that attaches parts between the two panels.

    • Gently lift the top panel from the bottom panel.

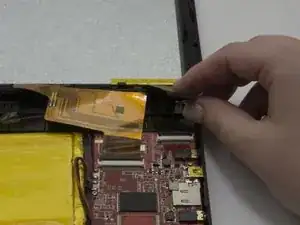

  4. rF6YepwNGeqF2Smw
    rF6YepwNGeqF2Smw
    pOGi5RDZxgeFhMYT

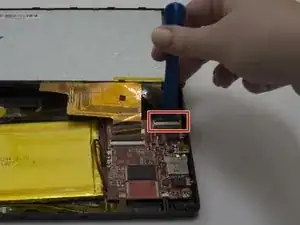

    • The flexible flat cables (FFC) attach to parts in the bottom panel with zero insertion force (ZIF) connectors.

    • Use the Opening tool to flip up the black retaining flap on the smaller connector.

    • Gently lift the cable, parallel to the panel, to detach it.

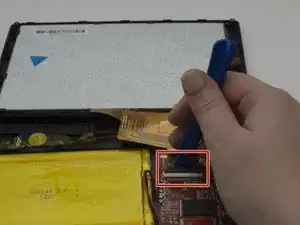

  5. LwQUaYNVmY1LVHwV
    LwQUaYNVmY1LVHwV
    5VMCyhlDwTilcTZ4

    • Use the Opening tool to flip up the black retaining flap on the larger connector.

    • Gently lift the cable, parallel to the panel, to detach it.

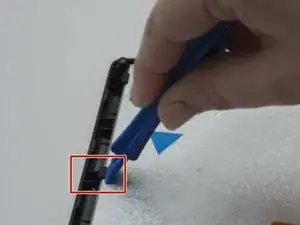

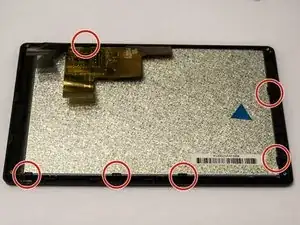

  6. kFNqlpDr6aoiplgf
    kFNqlpDr6aoiplgf
    vFqBPhIC35cl2BOk
    raoHDNgwXYLEXqIK

    • Set the top panel down so that the interior faces up, and the exterior of the screen faces down.

    • The screen attaches to to the panel with six black plastic snaps.

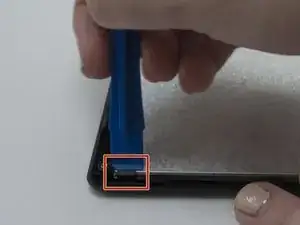

    • Using the Opening Tool, gently lift up each of the snaps to release the screen from the panel.

    • If a snap does not release when using the tool, attempt to lift it by hand.

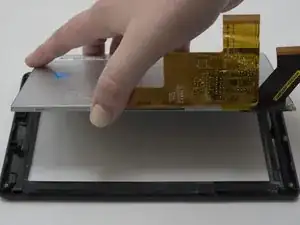

  7. TlwdPQRpHUJSGyce

    • Remove the screen from the frame by lifting it from the side.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Amy Li

Mitglied seit: 01/02/17

627 Reputation

Ein Kommentar

In terms of removing the screen, we found the plastic opening tool didn't help to lift the snaps to release the screen from the panel. It worked better when we used our hands to snap it out.
