Polaroid S10 Battery Replacement

Geschrieben von: Christofer
  • Kommentare: 0
Polaroid S10 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. ALqoJWeZRHJyUcK2
    ALqoJWeZRHJyUcK2
    SFgVYwLNKTXGH1Vc
    SOIAZIvPOn1jg2mp

    • Place an opening pick between the volume button and the back cover.

    • More than one pick may be needed, but avoid placing more than two picks in the same space.

    • Excessive force on the pick will break the volume button.

    • Carefully remove the back cover using the metal spudger.

    • It is normal to hear a snapping noise due to the plastic tabs on the back cover.

  2. ipfBI1QFU3lMZJAH
    ipfBI1QFU3lMZJAH
    HsW4lEolYvvGe6vG
    t2CXFueA1dMvmXB2

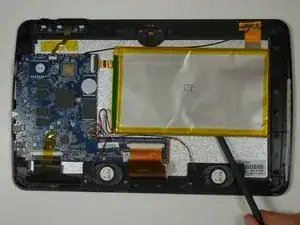

    • Use a spudger to carefully remove the tape nearest to the battery.

    • Use caution while removing tape. Too much force can damage the device.

    • Gently use the spudger to remove the battery out of place by wedging it out from the bottom.

    • Do not move the battery. Moving it could cause the cables to be ripped out.

  3. MMVYEB3UNJT25aW1
    MMVYEB3UNJT25aW1
    SWBRbGtNXB6jc6Nb

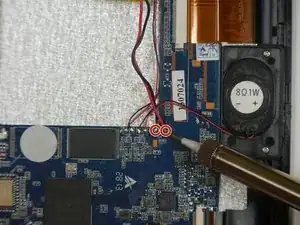

    • Carefully desolder the 2 wires that connect the battery to the motherboard.

    • Do not touch the soldering iron to the motherboard or the LCD screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
