Polaroid S10 volume button Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

  1. ALqoJWeZRHJyUcK2
    ALqoJWeZRHJyUcK2
    SFgVYwLNKTXGH1Vc
    SOIAZIvPOn1jg2mp

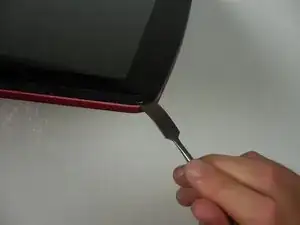

    • Place an opening pick between the volume button and the back cover.

    • More than one pick may be needed, but avoid placing more than two picks in the same space.

    • Excessive force on the pick will break the volume button.

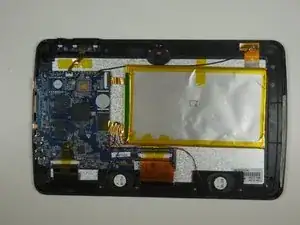

    • Carefully remove the back cover using the metal spudger.

    • It is normal to hear a snapping noise due to the plastic tabs on the back cover.

  2. dGLsINYcrLSWBneB
    dGLsINYcrLSWBneB
    GsOPaabBHXNQEGwm

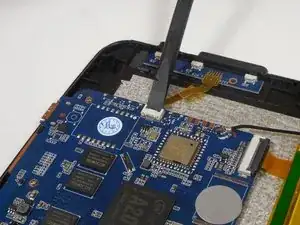

    • Use the spudger to remove the tape.

    • Remove the 2 J000 4 mm screws using a J000 screwdriver.

    • Carefully disconnect the connector port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
