Polaroid Z2300 Screen Replacement

Geschrieben von: Bradley Marcum
  • Kommentare: 1
Polaroid Z2300 Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you the required steps to complete a screen replacement.

  1. qiTWLAFODiIaA1D2

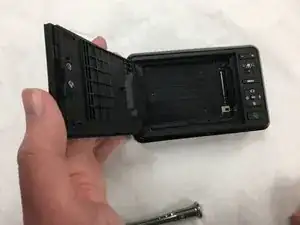

    • Flip the camera to back side up and open the paper/screen door.

  2. j2SKGTjKKW5fq6Md
    j2SKGTjKKW5fq6Md
    fOYw43DVgj51EoaU
    ltQMGZBeWm1YeCGQ

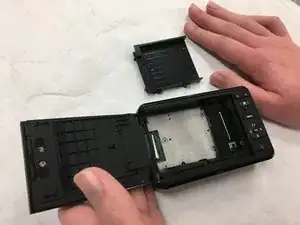

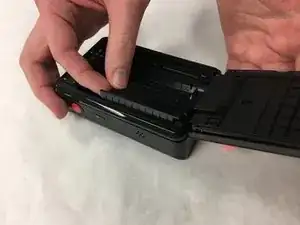

    • Locate and remove the two 3.5 mm long screws on the inside tray.

    • Screw head: JIS J00

    • Remove the inside tray.

    • The screws are very small! Be careful not to strip or lose them.

  3. rUR1DgZ1WPNeTTnb
    rUR1DgZ1WPNeTTnb
    hPiPddG6mxxOFAAd

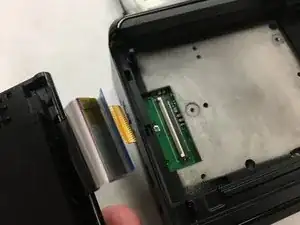

    • Gently pull the ribbon away from the logic board. This will allow the screen to separate from the rest of the camera.

  4. FhJydjrNHkqwTG5e
    FhJydjrNHkqwTG5e
    uOH11khelurubwHa

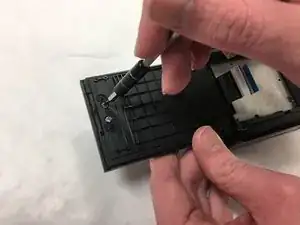

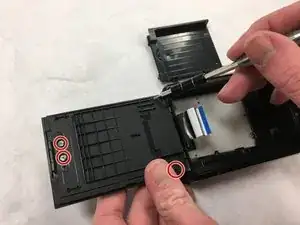

    • Locate and remove four 3.5 mm long screws on the inside of the door.

    • Screw head: JIS J00

    • The screws are very small! Be careful not to strip or lose them.

  5. bPRVgGvyUtYRLyER

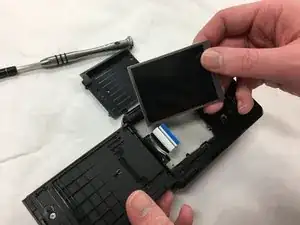

    • Once the panel is removed, the malfunctioning screen will slide out and can be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
