The zoom lens moves in and out of the camera while focusing on subjects at various distances. At times, the lens can stop functioning correctly.

  1. urK2QtFxY6JyvQjL
    urK2QtFxY6JyvQjL
    UBUYD2HPuLpx1Wev
    qoHjyXm5WUuH3xWI

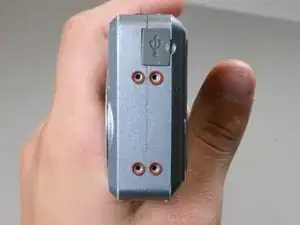

    • Use a Phillips #00 driver to remove four screws (3mm) on the left side of the camera. Keep all screws for reassembly.

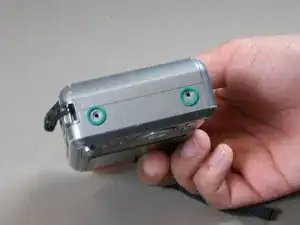

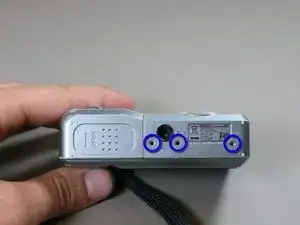

    • Directly on the bottom of the camera there are 3 screws, unscrew all with a Phillips #00 driver.

    • Unscrew two screws on the right side of the camera with a Phillips #00 driver.

  2. eERhZUs2mg1D3CM4
    eERhZUs2mg1D3CM4
    ylG6DAPRLdUIQ3mV

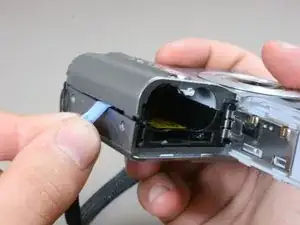

    • Locate the battery door on the bottom of the camera. Then slide the battery door open using the iFixit opening tool.

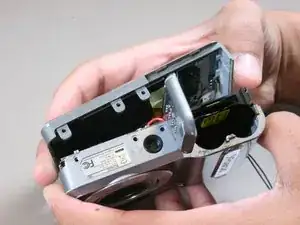

    • Gently open the back cover of camera.

    • Do not pull the cover off completely, because it is still attached to the logic board.

  3. Bd1wyEqQYyT2fFgF
    Bd1wyEqQYyT2fFgF
    hKwgMmLZViGlHrKt
    mdu6B6EuXofPQP42

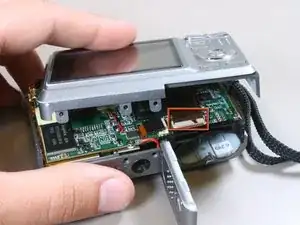

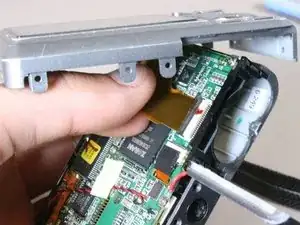

    • Locate where the LCD screen ribbon is attached to the logic board.

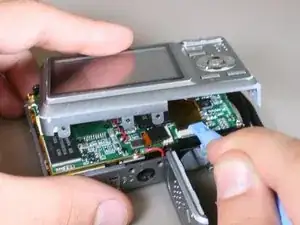

    • Using the ifixit opening tool, push the black tab connecting the LCD screen ribbon to the logic board away from you.

    • Gently pull the ribbon away from the logic board with thumb and index fingers.

  4. AGkUfW1KDKZgYfXx
    AGkUfW1KDKZgYfXx
    OLlKWl1rwFOORBB3

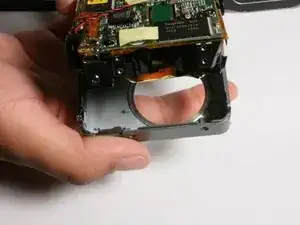

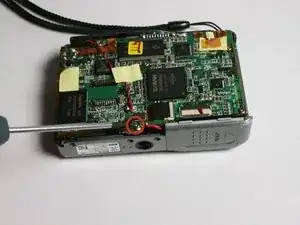

    • Using the Phillips #00 screwdriver, unscrew and remove the (3mm) screw on the bottom of the logic board above the tripod mount. Keep the screw for reassembly.

    • Gently pull the front of the case off.

  5. 524v33YFG1AFaElj
    524v33YFG1AFaElj
    IGiXftErgyatLOrX

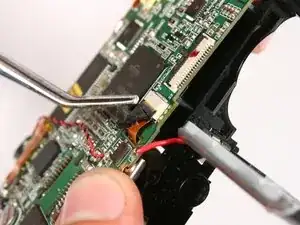

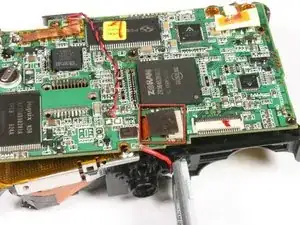

    • Locate the black patch covering the ribbon that connects the zoom lens to the logic board.

    • Carefully remove the black patch using tweezers.

  6. WBXpmdXsnl42j5uS
    WBXpmdXsnl42j5uS
    rfknMkR2HIxULgaN

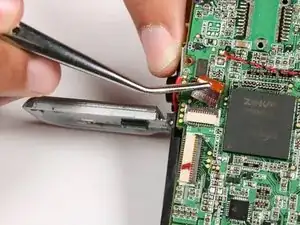

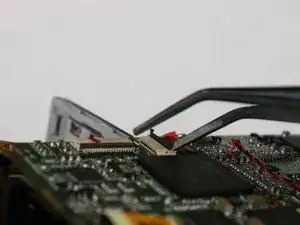

    • Using tweezers gently lift the black tab that holds the zoom lens ribbon in place.

    • Gently remove the zoom lens ribbon.

  7. VIBaLnPn3HBw122J
    VIBaLnPn3HBw122J
    BekYBsAvRGm5UriO

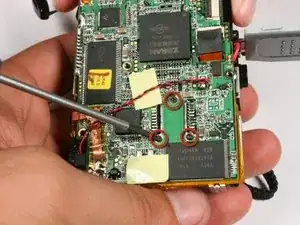

    • Use the Phillips #00 screwdriver and unscrew then remove the three (3mm) screws shown on the back of the logic board.

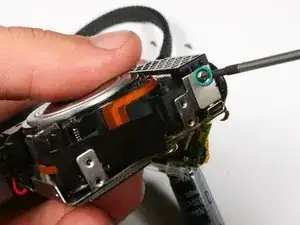

    • On the left side of the logic board use the same screwdriver. Unscrew and remove the 3mm screw. Keep all screws for reassembly.

  8. UOvpNweFrylBsUF3
    UOvpNweFrylBsUF3
    txPvJH3XnYpAmFHZ

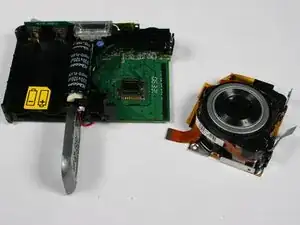

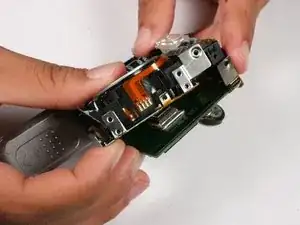

    • It is now safe for you to remove the zoom lens.

    • To reassemble the device, follow these steps in reverse.

Abschluss

To reassemble your device, follow these steps in reverse order.
