Dexter 220W Corded Multifunction Sander - 220MFS2.5 LED Replacement

Remove the seal on the back of the device.

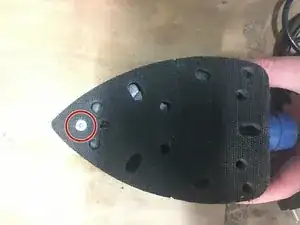

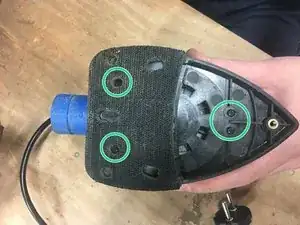

Unscrew the first screw of the pad.

Then unscrew the four remaining screws and pull up to remove it.

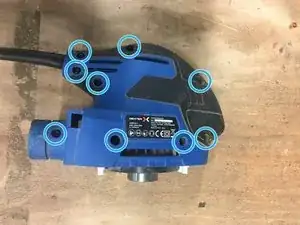

Finally remove the screws located on the hull of the device.

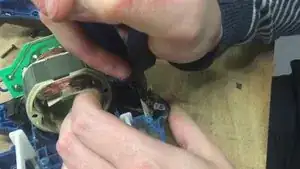

Wedge the two carbons to be able to take out the rotor. Reassemble them with a screwdriver, then with another screwdriver press the tab.

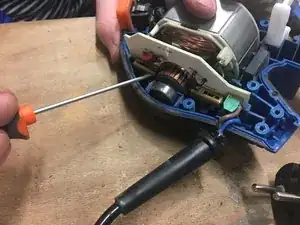

Lift the carbon and with the other tip of the screwdriver, twist the small leg.

Then remove the carbon.

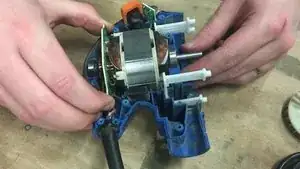

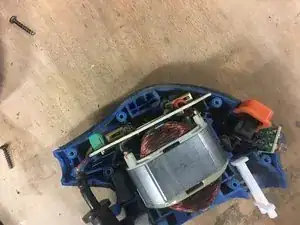

Remove the rotor by lifting the frame to be able to retrieve it more easily.

Pull out the switch for more space.

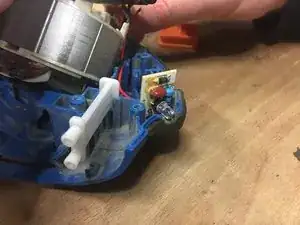

Remove the LED from its housing using pliers

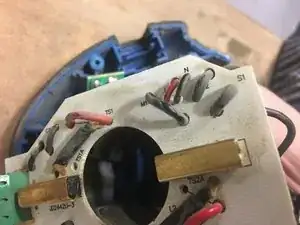

Desolder the two black and red wires to be able to change the part.

Resolder the new LED.

Then replace the LED in its housing, taking care to put the cables back in their path.

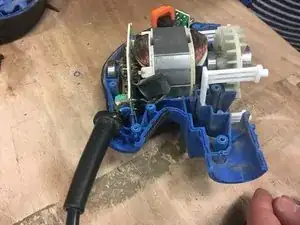

Replace the switch, the rotor in its housing. and unlock the carbons.

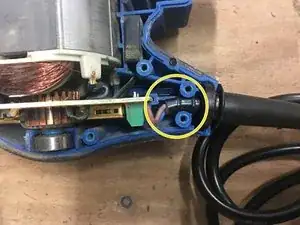

Replace the cable, the sheath must arrive between the two studs and the sleeve must be positioned in its housing.

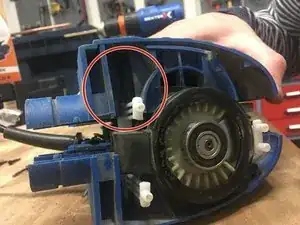

Replace the shell of the sander, taking care to position the stabilizers correctly in their housings.

Finally remove the screws located on the hull of the device.

Replace the pad by positioning it perfectly in the tips.

Tighten the four screws.

Then the last screw. Finally put the gasket back in place.
