Replacement of the speakers requires the removal of the battery. Be careful when handling the battery and avoid using sharp metal objects when ever possible.

  1. aCAQAEFUuMuDwChg
    aCAQAEFUuMuDwChg
    XvJ1j1ltFSpeqlah
    uDnZBLuV4gnpnuwS
    • Flip the laptop over with the screen facing down to reveal the bottom panel.

    • Unscrew each of the highlighted screws with a Phillips #0 screwdriver.

  2. vesrxeluNhFpTfVS
    vesrxeluNhFpTfVS
    jdIvSYrP5BG35uOx
    KFvwG1bU1iJxkLIn
    • Use a metal spudger to remove fitting and reveal the screw.

    • Use a screwdriver with a Torx T7 bit to remove the screw.

  3. OcpXqfN1OVUFGKsG
    OcpXqfN1OVUFGKsG
    uY2V2RfeSQ3LJUpN
    CoryCA3wOgMqmEsk
    • The SD Card slot is on the top right corner of the device near the headphone jacks.

    • Depress the fake SD Card and release.

    • Pull the fake SD Card out and remove it completely from the slot, as this will help in the removal of the backplate.

  4. WKEiLVw4cJXTV5yn
    WKEiLVw4cJXTV5yn
    pFI3TbFmAqRY4KLU
    • Lift the back plate starting at the opposing edge to the SD card. Lift from left to right and continue lifting this plate at this angle until it's free from the laptop.

    • Once the backplate is completely off, this will reveal the inside components of the device.

    • Upon reassembly of the back cover, make sure to line up the two headphone jacks on the upper right corner with the holes in the back cover or else it will not seat fully.

  5. CvcjRHSUUpXjZREE
    CvcjRHSUUpXjZREE
    aSWjhXiiGLCTTpXl
    DsvH6eDt33jLMeQF
    • The battery is the black rectangular piece in the bottom half of the device.

    • Remove six 5mm screws holding down the battery using a Phillips PH0 screwdriver.

    • Lift the battery and separate from its place holder.

    • Do not fully remove the battery as it is still connected by the connector in the top right corner.

  6. gF2LUSPkMS1aASjL
    gF2LUSPkMS1aASjL
    4myrdX5wsNHjicFT
    qY3lH1XKsRSJDREV
    • Using the nylon spudger, disconnect the white plugin.

    • Once the wire has been disconnected you may remove the battery.

  7. dk4iKRXkIs5uEnGI
    dk4iKRXkIs5uEnGI
    ryQb5xM6gKXVSlZk
    fQHIqtWGOxo5iSVX

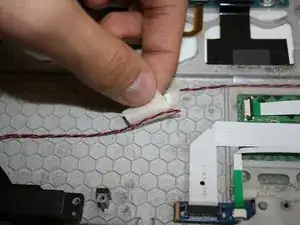

    • There are two black speakers on either side of the bottom corner of the device.

    • Remove tape securing speaker wires to frame.

  8. ADNHYx3cejO3W1dg
    ADNHYx3cejO3W1dg
    ZgROqQB3WiTM1ItC
    aPlrtPQvPJW2QXKV

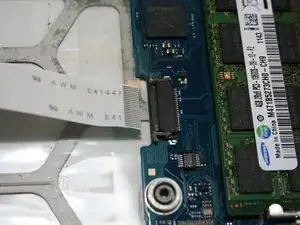

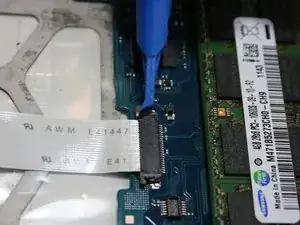

    • Using a blue plastic opening tool, disconnect the white cable running from the trackpad to the motherboard, at themotherboard port.

    • Disconnect the cable gently and do not yank on cable, this step is to get the cable out out of the way of speaker wires.

  9. JfvDFmT4t2hErfcn
    JfvDFmT4t2hErfcn
    t25wYesOHNTvXE1y
    UBlYtjpj61gqxEDs

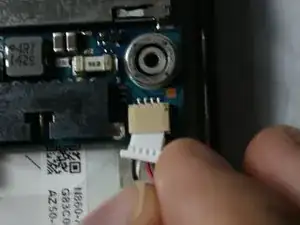

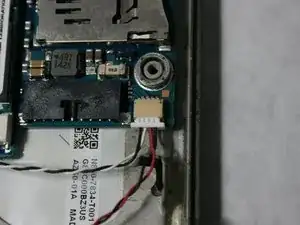

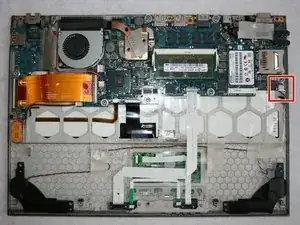

    • The speakers are connected by a plug with wires (Red/Black) (Black/White) to the motherboard.

    • Simply remove the plug with your fingers, disconnecting the speakers from the motherboard.

  10. cDLoa4sL2GupkP31
    cDLoa4sL2GupkP31
    2yPo3XmXBRGCVOqP

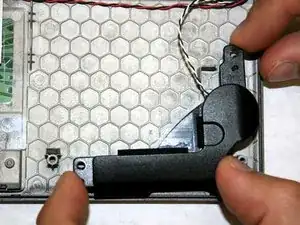

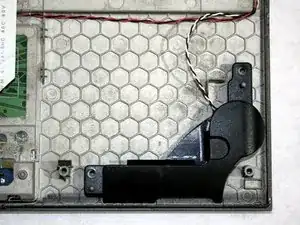

    • With the plug disconnected, now you can remove the speakers.

    • Lift the speakers up vertically removing them from pegs that hold them in place.

    • This does not require a tool as they are not fastened down, just lift and remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
