Porter Cable 690LR Base Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 Minute

Einleitung

This guide will show you the steps to replace the base panel on the Porter Cable 690LR Router. It's quite difficult to mess this one up. Just make sure when you replace the base panel you screw it back in right side up.

  1. JLS1Un1CmLMCgX2N
    JLS1Un1CmLMCgX2N
    dYw6chO23wYKJ1xv

    • Undo the black latch located on the base of the router by pulling upwards from underneath it.

  2. fLkJUxGMGGwGtvU5
    fLkJUxGMGGwGtvU5
    f6luMegkHvUMEXFK

    • Twist the base off the router.

    • You may need to jiggle the base of the router slightly.

  3. QaYLpCHIZFQMtNWL
    QaYLpCHIZFQMtNWL
    GyNSpuGMZEQNKeWI

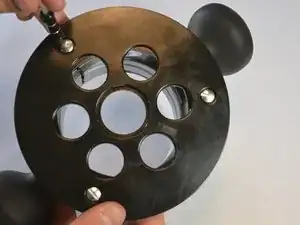

    • Orient the base so the black circular plate is facing you. Locate the three silver screw heads.

    • Use a flathead screwdriver to take off the three 10 mm screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
