Einleitung

  1. dZg3ZGZleWAK1FSF
    • When changing the sander pad, be sure to rotate the sander upside down so the pad and three highlighted screws are facing upward toward you.

    • Once the sander is upside down begin by removing your old sandpaper.

    • Once the sandpaper is removed locate the three screws on your sander pad.

  2. gRCD2TprRBTtBPGu
    • Remove the three, (star bolt) screws with the iFixit screw driver with a "T20" head. Be sure to hold the pad of the sander as it will rotate as you try to loosen the screws.

    • Once the screws are removed pull upward toward you and the sander pad will come apart from the device.

  3. QG6srCVkOFXmSIhL
    • Once the sander pad is removed and the sander is exposed locate the white plastic like circular piece surrounding the outside of the sander.

  4. iWJOrtveP66fCsXe
    iWJOrtveP66fCsXe
    rEjsnMRAPtlaNZot

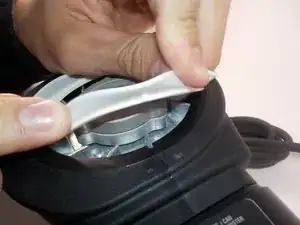

    • Once you have located the plastic white ring pull up its outer edge as shown. The lip on the inside will bend and be freed from its secured placement.

    • To reassemble, you will have to line up the protruding square with the key slot as shown otherwise your dust seal/ brake will not go back in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
