Porter-Cable PCE211 Brush Replacement

Geschrieben von: Layla Berry
  • Kommentare: 0
Porter-Cable PCE211 Brush Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

25 - 40 Minuten

Einleitung

The internal brushes help the motor catch the momentum needed to move the drill. Sometimes the brushes get loose or even get damaged in the process. This guide will show you how to replace the brushes of your Porter-Cable PCE211 impact wrench.

Before beginning this guide, be sure to turn the device off and unplug it from any power source.

  1. L2eyVHfIChxrRJnc
    L2eyVHfIChxrRJnc
    Nr3tDTrufXuCvrUY

    • Remove the four 6 mm screws using a Phillips #2 screwdriver.

    • The screws are tight so you will need to use a bit of arm strength.

  2. XXPMMWUZnf3FK5m6
    XXPMMWUZnf3FK5m6
    6rOXqLql1LMPeTdd

    • Pull the rear housing off the back of the impact wrench.

    • Be careful when removing the rear case that loose parts don't get damaged.

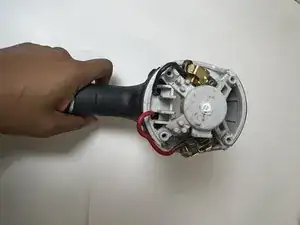

  3. dlYhILbNuSgxFVVM
    dlYhILbNuSgxFVVM
    LxfcYWhBAaaPE2KB

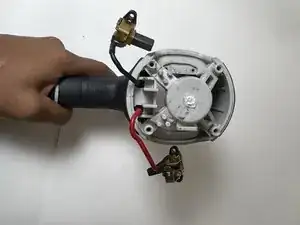

    • Remove the brushes connected to the red and black cords.

    • They are not secured so they made drop out naturally.

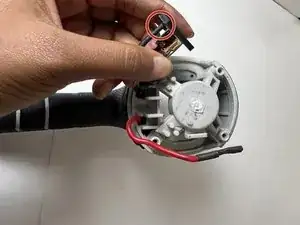

  4. SwuS15kHvWP1ZWYA
    SwuS15kHvWP1ZWYA
    hE2s6DtNedbjfbIE
    dMIhpZQyHnDhWDo6

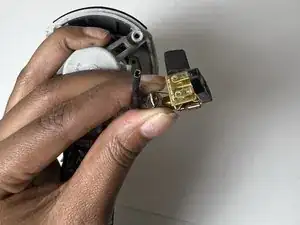

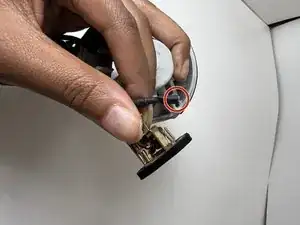

    • Gently pull each brush off the corresponding cable to avoid damaging the cables.

Abschluss

To reassemble your device, follow these instructions in reverse order.
