Porter-Cable PCE211 Fan Replacement

Geschrieben von: Layla Berry

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

If you need to replace the fan of your Porter-Cable PCE211 impact wrench, follow this guide.

If the fan has begun to malfunction or has totally failed, the tool will start to heat up quickly and this can easily cause damage to the other internal components. For additional information or troubleshooting your impact wrench, refer to the troubleshooting guide.

Before beginning this repair, be sure to turn off the device and unplug it from the outlet.

Werkzeuge

Schritt 1

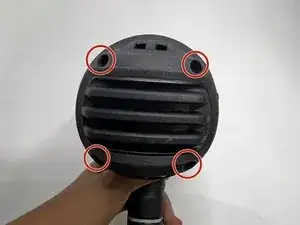

Using the Hex Security SAE 7/32", remove the four 10 mm socket screws at the base of the gearcase.

Schritt 2

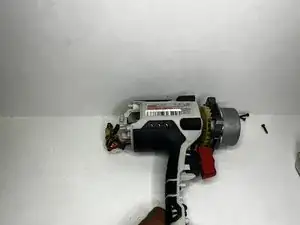

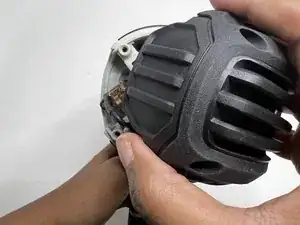

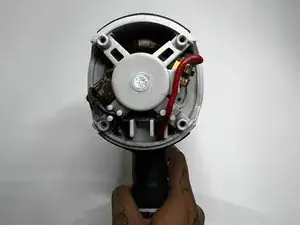

Grip the body of the impact wrench with one hand and the gearcase in the other and firmly pull to remove it.
Be careful about any loose parts when removing the head.

Schritt 3

Firmly pull the to remove drill bit holder also known as the anvil.
Before replacing the anvil, lubricate the base for the best performance.

Schritt 4

This section tends to get messy so it would be best to have a paper towel or microfiber towel handy.

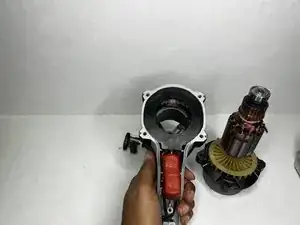

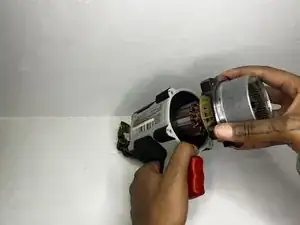

Pull the motor out with your hands.

Schritt 5

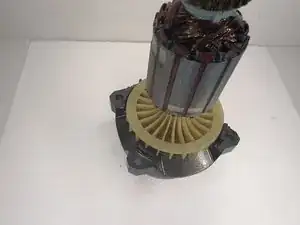

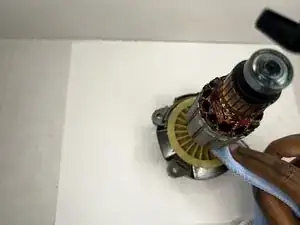

Wipe out the old grease with a towel. Use the appropriate motor grease for electric tools to lubricate the top area, base of the motor, and the space the motor sits.
