Porter-Cable PCE211 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 35 Minuten

Einleitung

If you need to replace the motor of your Porter-Cable PCE211 impact wrench, follow this guide. You may need to replace it due to motor failure or if it has burned out because another component has failed.

If you notice the wrench overheating or a burning smell it is best to check if the motor needs to be lubricated. Another indicating sign might be that the impact wrench is not spinning as fast or giving resistance. This guide is also useful to access the motor and reapply grease to maintain lubrication.

Before beginning, make sure to turn off the device and unplug it from the power source.

  1. V2RP4naP6erCmuYE
    V2RP4naP6erCmuYE
    ZWONyjjAmcJxX1we

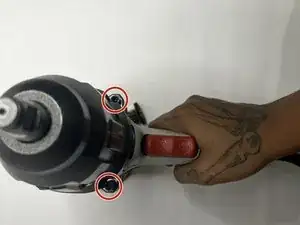

    • Using the Hex Security SAE 7/32", remove the four 10 mm socket screws at the base of the gearcase.

  2. nvL4fXQWUW2c6UgW
    nvL4fXQWUW2c6UgW
    2F4Z2DXDfbInUdSN
    jPkAIirH3sIXipLx

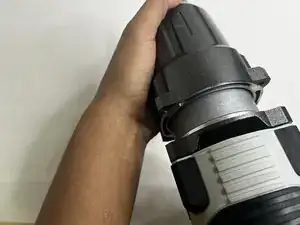

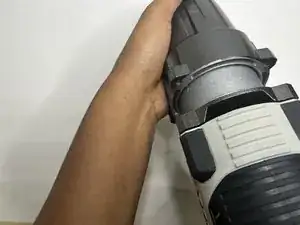

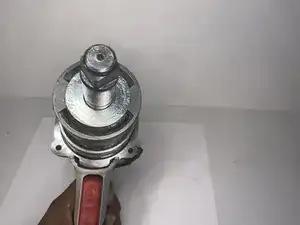

    • Grip the body of the impact wrench with one hand and the gearcase in the other and firmly pull to remove it.

    • Be careful about any loose parts when removing the head.

  3. QXXPNBCsXvDHIN2A
    QXXPNBCsXvDHIN2A
    ttSHfvQUQC2W4usN
    YtYeQJvhSQlkQVDd

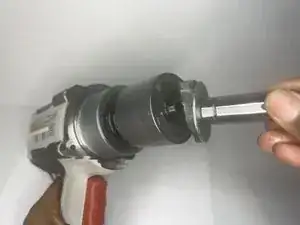

    • Firmly pull the to remove drill bit holder also known as the anvil.

    • Before replacing the anvil, lubricate the base for the best performance.

  4. tR1SD6kZYDRUuFau
    tR1SD6kZYDRUuFau
    AgVtBsxw6JylDxpH
    JQOSkjTm2MoyOhas

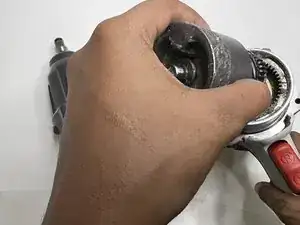

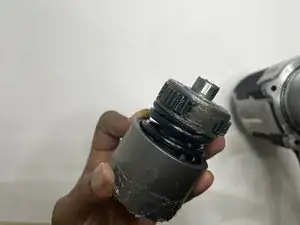

    • This section tends to get messy so it would be best to have a paper towel or microfiber towel handy.

    • Pull the motor out with your hands.

  5. tsgLR1l26naIXCdc
    tsgLR1l26naIXCdc
    nwsvlFNEkGpQHvZn
    FFXoJX24YIowcpZM

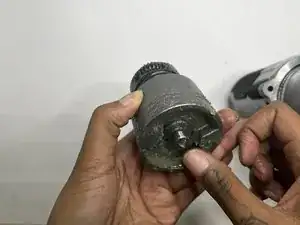

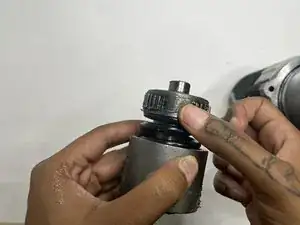

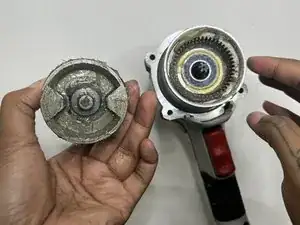

    • Wipe out the old grease with a towel. Use the appropriate motor grease for electric tools to lubricate the top area, base of the motor, and the space the motor sits.

Abschluss

To reassemble your device, follow these instructions in reverse order.
