Power Cable Disconnection

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Prerequisite only! This procedure is part of another guide and is not meant to be used alone.

Use this guide to disconnect the power cable wires from the switch on a Wacker M1500-120 REV 100 (2016) Concrete Vibrator.

  1. 1PAyR1Tw5BoFF6MR
    1PAyR1Tw5BoFF6MR
    w1HvIV2wsy6GNvQX
    1wKMyiprThZLyRBG

    • Before starting, ensure the device is unplugged from power.

    • Pull up on the quick-disconnect handle to release the lock on the flex shaft.

    • Remove the flex shaft.

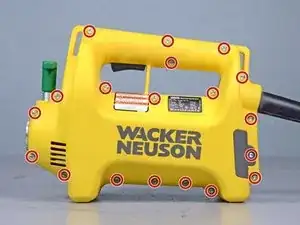

  2. qSpywVUUNAUaHqAy

    • Use a T20 Torx screwdriver to remove the nineteen screws securing the two halves of the device housing.

  3. gnp4AAQ6M6xCZ6fT
    gnp4AAQ6M6xCZ6fT
    EWESWUfPawLLXOsf

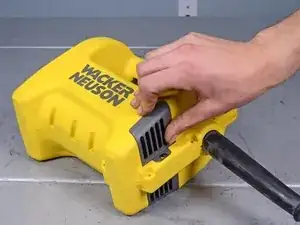

    • Lay the device down onto its right side, screw holes facing up.

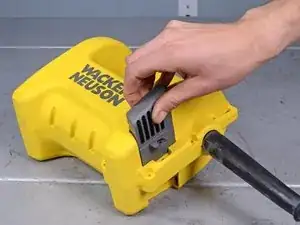

    • Remove the rear dust filter.

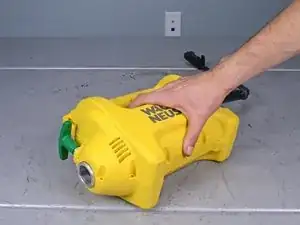

  4. nFGokcSQHdLYFJdY
    nFGokcSQHdLYFJdY
    KpY4YPBJVIDB2WXr
    qcReFcYSG2UTLZGU

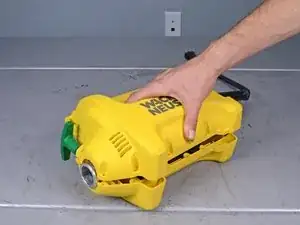

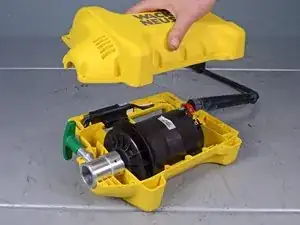

    • Lift to remove the left half of the device housing.

    • If the housings feel stuck together, use a flathead screwdriver to create a gap between the halves.

  5. 1PqDTouygO5Heh31
    1PqDTouygO5Heh31
    yBBZaa4My2V5KO6N

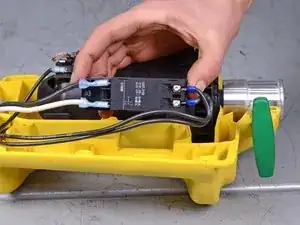

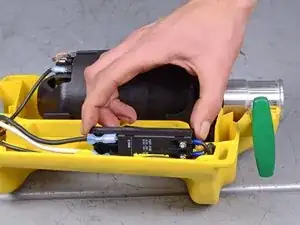

    • Lift the switch out of its recess in the case housing.

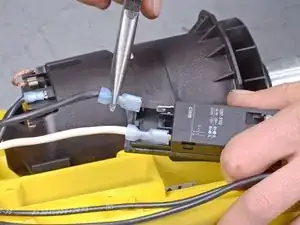

  6. VkFibewTllEnTI5Z
    VkFibewTllEnTI5Z
    eALdnoMpS4fRimIB
    sgX6jh5EMAdSXV53

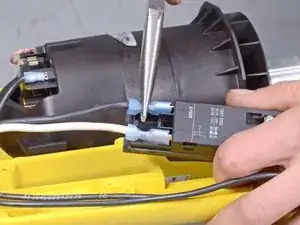

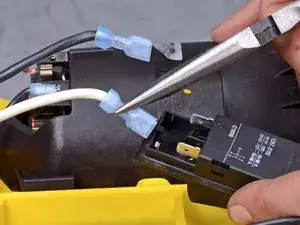

    • Use a pair of needle nose pliers to disconnect the black and white power wires from their terminals on the switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
