Power Mac G4 M5183 Power Supply Replacement

Geschrieben von: Justin Petrilli
  • Kommentare: 4
Power Mac G4 M5183 Power Supply Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

This guide will help you in disassembling the power supply from your PowerMac.

  1. usapiMdDDBFeDDhd
    usapiMdDDBFeDDhd
    6j1Fmc6PY2u6c6GG

    • Pull on outer latch.

    • Lower door until it is level with your work surface.

    • Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

    Fino a li lo intuisce anche un bambino. Io volevo sapere come levare l'altro sportello senza rompere niente. Ma una vodtra risposta non la vedo.

    giorgus -

  2. 1ku2GOoS4NCLKswc
    1ku2GOoS4NCLKswc
    rHNA1bZq1pQcp2yo

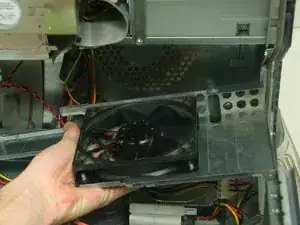

    • Remove the screw from each of the two niches on lower part of fan using the Phillips #1 screwdriver.

    • The fan housing will still be connected to the computer by a power cable which will be removed in the next step.

  3. mQG3N1UQ3S1neWK6

    • Remove the power cable from the fan and detach bracing.

  4. bYrBAoKQB2vIiDbJ
    bYrBAoKQB2vIiDbJ
    Hlx1ERZvtFTvpKWV

    • Removing the faceplate.

    • On the inside of the case, find the two plastic tabs.

    • While depressing the tabs, remove the faceplate by pulling and rotating outward.

  5. LKuPlSbOpAxtOQYr

    • Remove the two screws on the front of the drive with the Phillips #1 screwdriver.

  6. fQJI43Ygmsc5fUDn
    fQJI43Ygmsc5fUDn
    aMpsJsJOhMIFdtOW
    qVT6bQXwqfHkyMCq

    • Pull the drive out to allow access to the power and ribbon cables. Do not fully remove.

    • Remove both the power and ribbon cable.

    Just a Thank You note. What a great and absolutely clear guidance. Apart from a fairly current Windows/Linux set-up, I really like to work on my old Macintosh G4 running Mac OS 9.2.1 Your instructions just helped me to make that machine even more useful. And yes, I am using it for productive stuff. Thanks again and keep up the good work. Alex, Germany.

    Axel Stoecker -

  7. vGGWIcFWLVWrxZXp
    vGGWIcFWLVWrxZXp
    Kvvv4cxvKDjcoRDt

    • Remove the 3 hex screws on the back of the case.

    • Remove the single screw on the side of the power supply casing with the Phillips #1 screwdriver.

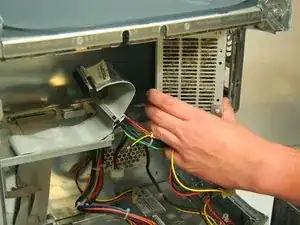

  8. HpsPVNEx2vwbvMJG
    HpsPVNEx2vwbvMJG
    BUxvOugPoHPBE5gA

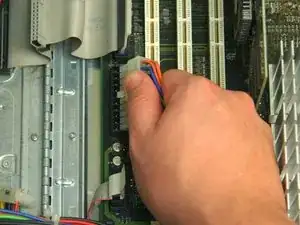

    • Remove power cable from the logic board.

    • Remove power cable from hard drive.

    • Pull the power supply out and towards yourself.
