Power Mac G4 M5183 Processor Replacement

Geschrieben von: Justin Petrilli
  • Kommentare: 3
Power Mac G4 M5183 Processor Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

How to remove the processor from the logic board.

  1. usapiMdDDBFeDDhd
    usapiMdDDBFeDDhd
    6j1Fmc6PY2u6c6GG

    • Pull on outer latch.

    • Lower door until it is level with your work surface.

    • Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

    Fino a li lo intuisce anche un bambino. Io volevo sapere come levare l'altro sportello senza rompere niente. Ma una vodtra risposta non la vedo.

    giorgus -

  2. QOLHeRfxfRQmVKas
    QOLHeRfxfRQmVKas
    TAai1lMKJn5gvEPO

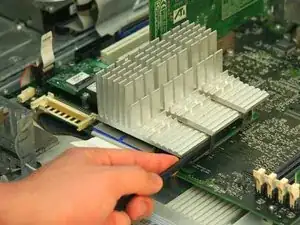

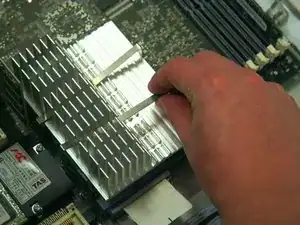

    • Use the spudger to pry the clips horizontally off of the heat sink.

    • Fully remove the clips by lifting upwards.

  3. 2cUCB6MEnUNkI3KA

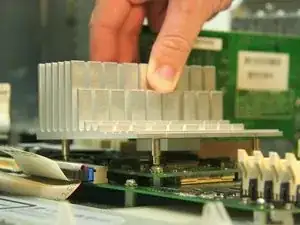

    • Remove the heat sink by pulling upwards, off of the logic board.

  4. 5u1mASnuO5UWyHng
    5u1mASnuO5UWyHng
    wRvg2CT5XtgUcRWn

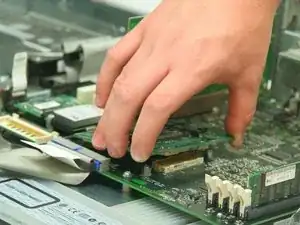

    • Remove the 3 screws attaching the processor to the logic board using the Phillips #2 screwdriver.

    • Remove processor by pulling vertically upwards.
