Power Mac G4 Quicksilver Central Processing Unit Replacement

Geschrieben von: Ryan Bylard
  • Kommentare: 1
Power Mac G4 Quicksilver Central Processing Unit Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

Removing the CPU of the Power Mac G4 Quicksilver for replacement.

  1. MI3MLXaxZt2N2WyU

    • The handle to open your computer is located on top of the right side panel.

  2. 2gTC6EkIwJDejnfC
    2gTC6EkIwJDejnfC
    2ucGgBJmyDkABGQ4

    • Grab the circular handle and pull outward.

  3. Nm4mRELLtcYI4YYI

    • Your computer is now open and ready for repair.

  4. VpVmYmvRU6vLIKgF

    • This is your Power Mac G4's video adapter.

  5. DxMGD1qFqmfFgbkI

    • Start by removing the screw holding the card to the chassis as shown.

  6. ZknYWMUrZSoo6lpL

    • Before lifting the card out, this small plastic tab needs to be pulled back there by releasing it entirely.

  7. E5EsGDQ4XaBT4U6U
    E5EsGDQ4XaBT4U6U
    yqkbuEVdxHyR1BQp

    • With the tab and screw removed, lift the card straight out.

    • When putting the card back in, take care to apply even pressure across the top with your thumbs. This will avoid damaging the card.

  8. GuQrLmRMpAroOofV

    • First you want to remove the fan. Remove the two screws on the back of the computer in the upper left hand corner.

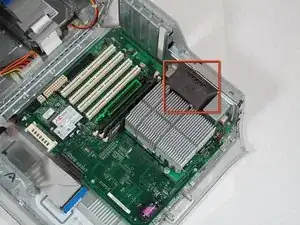

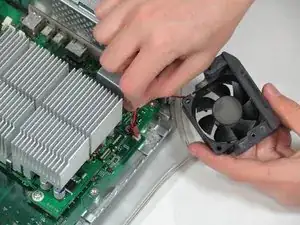

  9. PZowmj2QSiSBaCCr
    PZowmj2QSiSBaCCr
    cApVWbUEcWePWZZi

    • Remove the fan unit by pulling straight up and out.

    • Be carful not to rip out the cord still attached to the motherboard. Remove it gently.

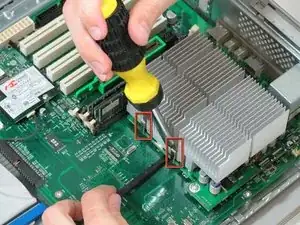

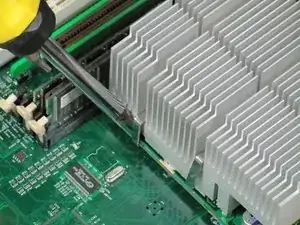

  10. OhDVxCqqSJs2XLJK
    OhDVxCqqSJs2XLJK
    VmGXqMpePynIaEvx

    • You need detach the heat sink from the CPU. Locate the four clamps holding it down, two on each side.

    • Taking off the clamps can be difficult. Use a screwdriver to push down on the top of the clip. Then insert a spudger below the heat sink to pull it away from the board, releasing the heat sink.

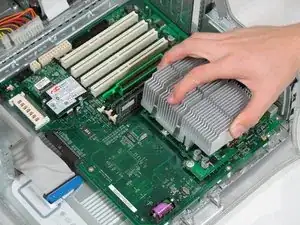

  11. NDxgCsnxxaAsYMLP
    NDxgCsnxxaAsYMLP
    vEQmhbb6CELNdmvq

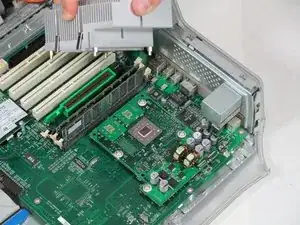

    • Pull the heat sink up and off of the CPU.

  12. mLeXXMjTwwyEXQsN

    • Remove the four screws holding the CPU to the motherboard.

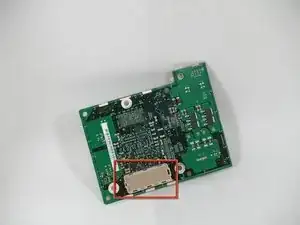

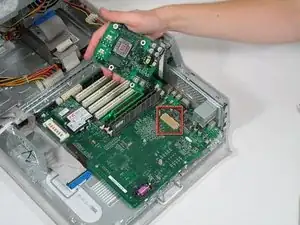

  13. uddLRpYx34A4NLDP
    uddLRpYx34A4NLDP
    VISpPApOCHETANZg

    • Now you can remove the CPU by pulling it straight up from the motherboard.

    • Be very careful when you detach the CPU. There is a connector that has hundreds of little prongs. You must not bend or break any of them! Be extremely careful.

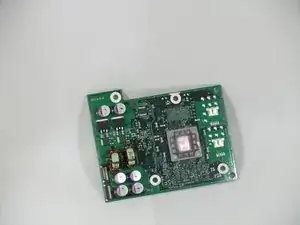

  14. fLBDKF5jm6ZskfL2

    • You can now replace the CPU.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ryan Bylard

Mitglied seit: 20/01/10

1316 Reputation

Ein Kommentar

Removing graphics (video) card is not necessary. Also, removing the clips which retain heat-sink can be accomplished by using a flat-blade (-) screwdriver to carefully pry them from the finned aluminum assembly. Other than these two suggestions, guide is succinct and accurate.
