Power Mac G4 Quicksilver Hard Drive Replacement

Geschrieben von: Ryan Bylard
  • Kommentare: 0
Power Mac G4 Quicksilver Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

5 - 10 Minuten

Einleitung

Removing the hard drive of the Power Mac G4 Quicksilver for replacement.

  1. MI3MLXaxZt2N2WyU

    • The handle to open your computer is located on top of the right side panel.

  2. 2gTC6EkIwJDejnfC
    2gTC6EkIwJDejnfC
    2ucGgBJmyDkABGQ4

    • Grab the circular handle and pull outward.

  3. Nm4mRELLtcYI4YYI

    • Your computer is now open and ready for repair.

  4. 3XP4FKiEucLnNvtr

    • The hard drive is located in the rear right corner of the case.

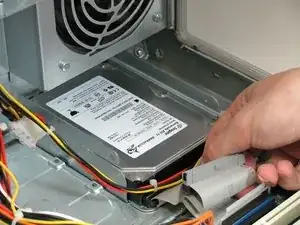

  5. uZd4YlhkRq3J4QlF

    • Unplug the IDE ribbon cable. This is the wide flat grey cable.

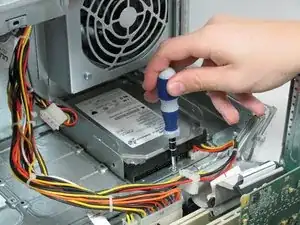

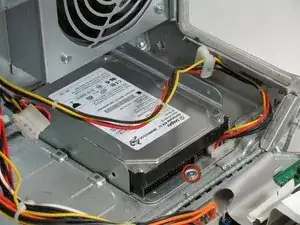

  6. YknKmY1KSQlL4yj6
    YknKmY1KSQlL4yj6
    Nc2wJFixZMCqjIlG

    • Remove the screw holding down the hard drive enclosure.

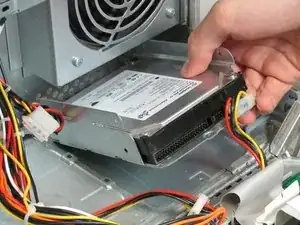

  7. BTLV3RIvNmu4AJ44

    • Lift the hard drive enclosure straight up and out.

    • Be carful not to pull the attached cable.

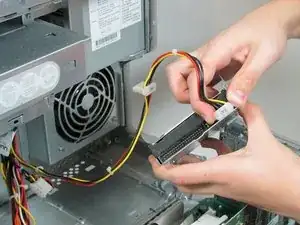

  8. AQ6mNueFtyed4RIV

    • Disconnect the MOLEX connector.

    • This cable may be hard to remove. Grab the connector on either side as pictured and wiggle it back and forth to remove it.

  9. i3uLPKrsEooROEON

    • Remove the four screws holding the hard drive to the enclosure.

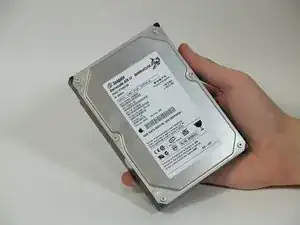

  10. WTaLloUtAZoKYPGP

    • Your hard drive is now free from the enclosure and is ready to be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
