Power Mac G5 Processor and Cooling Unit Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

This will overview the process to remove and replace the Cooling and Processing unit of the Apple G5. Due to design restrictions of the device it is difficult replace the just processors without permanently damaging the entire unit. So this portion of the guide will only overview removal of the entire unit.

Werkzeuge

Schritt 1

To avoid electrocution, shut down the computer. Do not open the computer or attempt to install any items inside it while the computer is on.
To avoid being burned, wait at least 10 minutes to allow the computer's internal components to cool.

Schritt 2

Remove all the cables, including the power cables before opening the unit.

Schritt 3

Lift the tab to unlock the side panel.
The panel should fall out. If the panel does not fall out by itself pull a little from the edges.

Schritt 4

Remove the air deflector (the clear plastic cover) by pulling on the handle.

Schritt 5

Locate the front fan assembly.

Schritt 6

Pull the fan assembly out; it should slide out easily.

Schritt 7

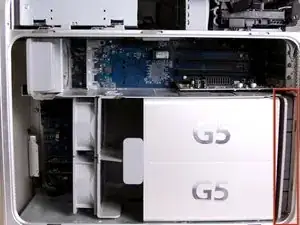

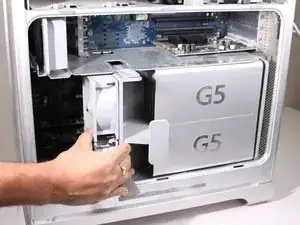

The cooling fan unit is located on the bottom right of the Apple G5 Desktop.

Schritt 8

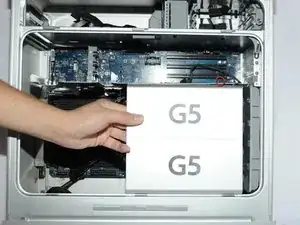

Remove the G5 metal cover from the processing/cooling unit of the computer. NOTE: Apple inserted a rather fragile plastic pin that inserts through the top divider shield and clips into a tab on the hidden ledge of this CPU shield. Removing this pin, certainly voided Mac's warranty - but more appropriate for now, voids most after-market insurance plans. A replacement pin (new) is hard to get ahold of, and very few are talented and patient enough to remove this pin without damaging it. Just something to keep in mind. If you have no warranty any longer or don't care, please continue...
Pull the metal plate to the left and outward to remove the plate from the processing/cooling unit.

The whole pin assembly acts like a miniature toggle bolt. The inner part of the pin assembly is actually a short stubby cylinder. When the pin is inserted into the sleeve, it presses on the sleeve and expands it slightly in the processor shield, locking it to the top divider shield.

I took a tiny drill bit and spun it into the center of the pin just enough so that I could insert a small sharp screw (I used a cup hook) into the pin. All it needed was just a slight tug, and the pin came out of the outer locking sleeve. I used the same screw to remove the outer sleeve.

Steve -

I was able to push the bottom part of the shield to the left and unhook the bottom first. I then took a long wooden skewer (18" long) and pushed the center pin out. I then took a pair of needle nose pliers and gripped the two flared ends of the outer sleeve and squeezed them together and pushed the sleeve out of the hole. It was actually pretty easy this way and there was no damage to the pin or the sleeve.

cuchetti - 13/11/16

Take a flat head screwdriver and lift a little on the top plate on the top of the cover so as to lift the plastic part slightly. Apply pressure near the top of the plastic keeper and separate it slightly from the metal. Take a box cutter blade and apply pressure around the outside not on the center of the pin. Once you can separate the pin a little from the outside edge take a long strand of glide dental floss and rope it around the pin inside the plastic holder and pull up. Do the same to the outer keeper piece and VOILA!

Ann Zevely - 11/03/20

Schritt 9

Locate the bottom right fan.

Schritt 10

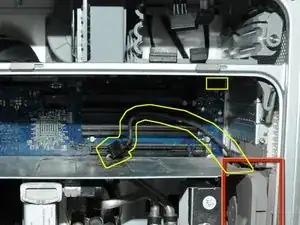

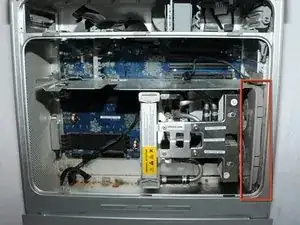

Unplug the fan's power cable from the upper rightmost corner of the motherboard (connection J45). If there is a video card in place, carefully pull the cable plug down between the back edge of the video card and the motherboard. Note, the photo shows the unplugged cable and the area it plugs into outlined in yellow. No video card is shown in this photo.

To disconnect the cable, it's easier to remove all the cards. I had filled up all 4 slots and I need to space to get my hand in there to disconnect the cable.

Lawrence - 13/05/14

Schritt 11

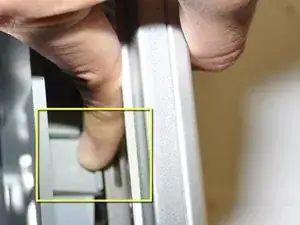

Locate the tabs on the fan unit.

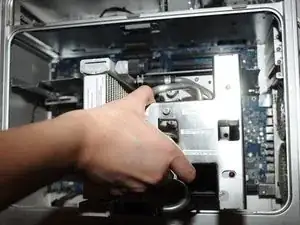

While pushing in on the tabs, highlighted in yellow, pull the fan back towards the cooling unit.

Schritt 12

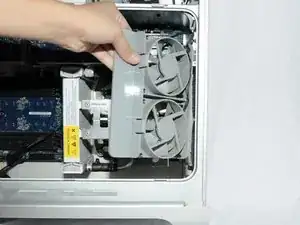

After the latches are out, pull the fan out.

Before pulling fan, you must unplug fan power cable from upper right-most corner of mother board (connection J45). Carefully pull cable down past the video card's back-side.

Sam Taylor -

Thank you for this mention. It seems important, do you have a snapshot of it?

Is it hard to find/reach?

And plugging it back in with the new one, any problems?

Thanks!

Diana -

Schritt 13

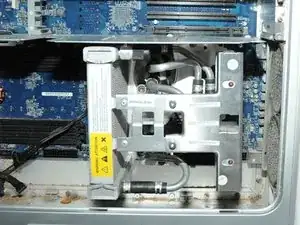

After removal of the bottom right fan the space should look like this.

Schritt 14

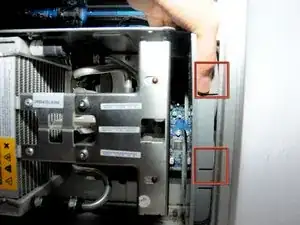

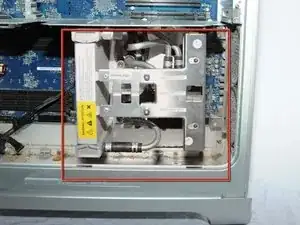

Locate the Cooling Unit on the Apple G5.
Put the CPU case on its back with the opening facing up to make the next steps easier.

Schritt 15

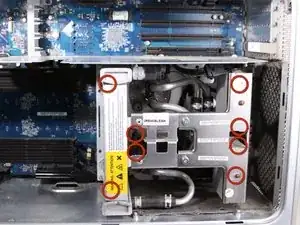

Unscrew 8 T10 screws from the cooling unit. NOTE: these screws are acctually allen keys. The prefered tool will be long handled allen keys. t10 are 2.74mm (closest allen key is 2.5 or 3mm) and t15 are 3.27mm(closest allen key is 3mm and 4mm). You may strip your tool or the actual screws themselves. Use a set of high quality long handled allen keys.
The screws are somewhat hidden, so they cannot be see in the picture.
To visualize the location of the screws look 3 steps ahead.
The screws will loosen but will not come out, they are designed to loosen the unit, but remain in place.

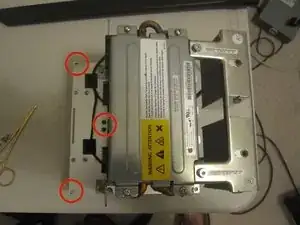

The last two images show another version of the LCS (out of the computer) in the G5 with off-center views to show the 8 screw holes.

that looks completely different and I can't unscrew it :/

grze -

Did you find a solution for yours? I may have the same problem.

jaesonk - 20/06/15

Very difficult on some models.

Nate Aguilar -

Schritt 16

Pull the cooling/processing unit straight up to prevent damage to logic board
This will require some effort and should be done with caution to avoid damage.
The sleeves around the 6 screws may hold it in, if so just take a pair of needle nose pliers and gently squeeze the sleeves until it releases.
Pull the bottom, then side towards the bottom of the CPU case, first to move around the bottom coolant sleeve around the heat sinking bracket. *heat sinking bracket not in picture*

Schritt 17

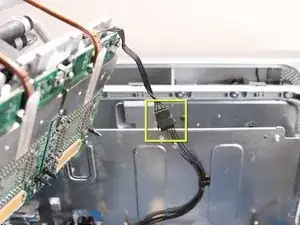

Disconnect the cable.

Schritt 18

NOTE: Here are the standoffs without the cooling unit installed to make it easier to understand where the screws are located. Remove the bottom 2 standoffs so it is easier to remove the power supply.

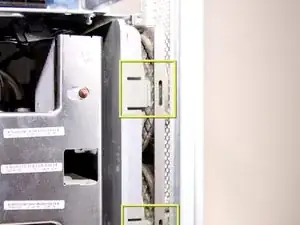

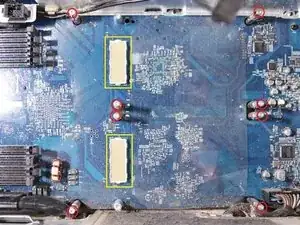

Check the pin connections for any damage. All the pins highlighted in yellow should appear straight up and not appear bent. DON'T TOUCH THE PINS. A bent pin will result in your computer not powering on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
