Power Macintosh G3 Blue and White RAM Replacement

Geschrieben von: [deleted]
  • Kommentare: 0
Power Macintosh G3 Blue and White RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

4 - 6 Minuten

Einleitung

My RAM configuration may differ from yours, but the process is exactly the same.

  1. 3oJiC1RKZ6gBVK4h

    • Unfortunately, I am unable to provide OG content for this step due to my PowerMac’s outer case being severely damaged. Once I get my new outer case I will update this step.

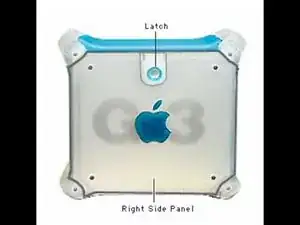

    • Lift the latch on the right side panel to reveal the internals of the Power Mac.

    • If you are doing this on a hard surface I highly suggest you put a mat down between the door and the ground to prevent scratches.

  2. YR1MZDRPPrPGtGcq

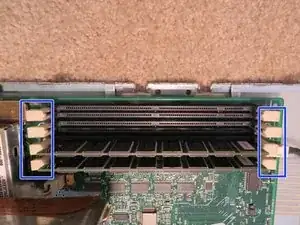

    • Push the white tabs next to where your RAM is located away form the RAM chip itself.

    • The RAM chips should move up a tad and become somewhat loose.

    • Your RAM configuration may vary. This process is done the exact same way no matter what your RAM placement looks like.

  3. OTM6NTcvbUunDZCX
    OTM6NTcvbUunDZCX
    jCnAHBTIa43SQhGc

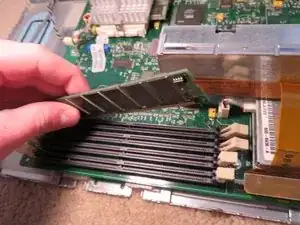

    • Pull the RAM chips out of the RAM slots.

    • That's all folks! That wasn't too hard, was it?

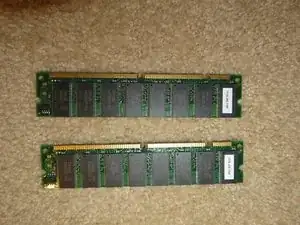

    • Second image: RAM remains

Abschluss

To reassemble your device, follow these instructions in reverse order.
