Einleitung

  1. dHuVgCtSGA3OafoO
    dHuVgCtSGA3OafoO
    DUfXptLEQ6RoSFAn

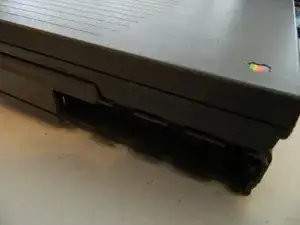

    • Remove the Ni-Cad battery from the PowerBook 180.

    • Slide the arrows toward the front of the computer until the battery can slide out.

  2. gLyDo4SQmBAPKe1F
    gLyDo4SQmBAPKe1F
    JPdam6WZXCISqNdA

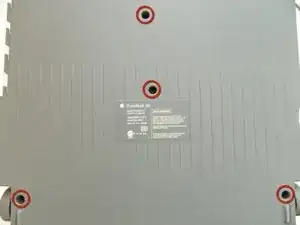

    • Removing the screws securing the bottom plate from the PowerBook 180.

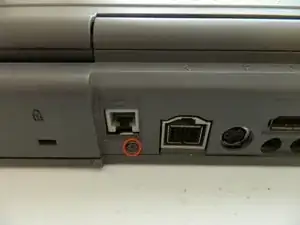

    • There are 5 Torx T8 screws, 4 of which are located on the bottom and 1 on the back above the modem port.

  3. bbbcrffTfx64exBP
    bbbcrffTfx64exBP
    2LsThRK25DCKWJqd

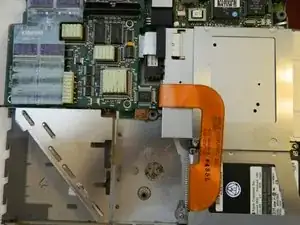

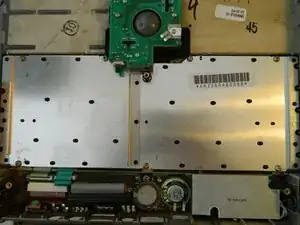

    • Your computer should look like the two pictures after the bottom plate is removed.

  4. WPuQpgkMjrYZvbDi
    WPuQpgkMjrYZvbDi
    DFL2NRh4CFkJDXvH

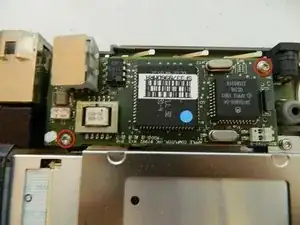

    • Locate the modem board, which is next to the DC-in port.

    • There are two Torx T8 screws marked in red in the pictures. Remove these screws and pull up on the modem board to remove.

    • To reassemble your PowerBook, follow these instructions in reverse.

Abschluss

To reassemble your device, follow these instructions in reverse order.
