The PowerBook 180 was one of Apple's top of the line notebook computers at around 1993. It was in high demand through all of its life, and had a selling price of about $3900 base model. This computer can run System 7 - 8.1 (through Born Again) and has a 68030 processor running at 33mhz.
Werkzeuge
-
-
The PowerBook 180 has a removable Ni-Cad battery on the side. Before we start this repair, we need to make sure the computer does not have any power source - so you don't get shocked and the computer doesn't die.
-

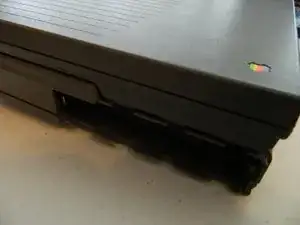

Slide the battery door to the front of the computer, as directed by the arrows.
-

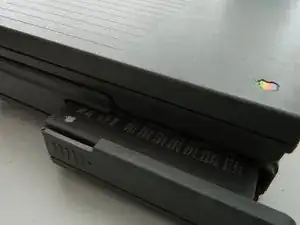

Pull out the battery.
-
-
-

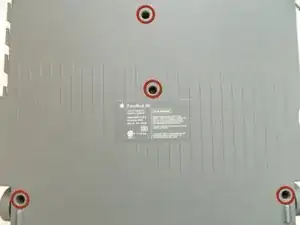

There are 5 Torx T8 screws that hold the bottom of the PowerBook 180.
-

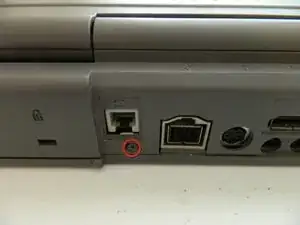

4 are on the side, and one is above the modem port at the back of the computer.
-
Remove these screws.
-
-
-
Remove the bottom plate by prying up with either a flathead screwdriver or plastic object, such as a credit card.
-
Keep in mind the bottom left and right corners of the PowerBook 180 is very hard to open - you may need to use some extra force to open that side.
-

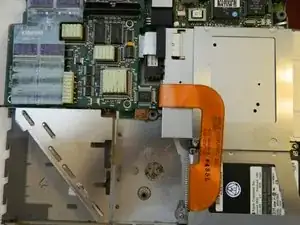

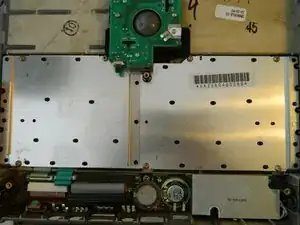

Your PowerBook 180 should look like the two pictures - with separate top and bottom halves.
-
-
-

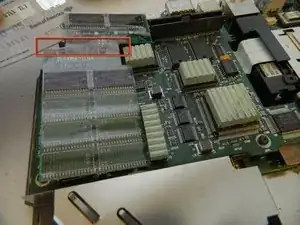

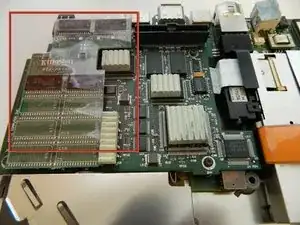

Identify the RAM in the PowerBook 180. It is marked in red in the picture.
-
For this PowerBook, there is 4mb of Kingston RAM - a lot back in those times!
-
-
-
Remove the RAM by using a plastic object (such as a credit card) along the red marked area in the picture. The RAM is very flexible, so be very careful.
-

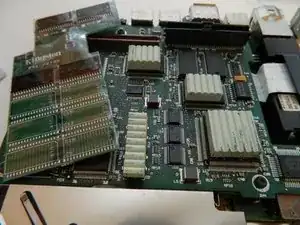

Now place the new RAM into the empty socket.
-
Follow these instructions in reverse order to reassemble the PowerBook 180.
-
To reassemble your device, follow these instructions in reverse order.
