PowerBook 3400 M3553 Display Replacement

Geschrieben von: Michael Mondragon
  • Kommentare: 3
PowerBook 3400 M3553 Display Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

30 - 45 Minuten

Einleitung

If your display is broken or damaged you will need to replace the entire display.

  1. cLysbvqM5GjE6vUT

    • Close the screen and turn the PowerBook over, orienting the computer upside down, using the label to guide you.

  2. oQL3hDJgDydDle6x
    oQL3hDJgDydDle6x
    BUAuNYmLLNYnNhVg

    • Hold the button on the front left side and slide the battery out.

  3. RWKtY2YDJLqwQTsh

    • With a Torx T8 screwdriver, remove the three Torx 24mm screws along the center of the back panel.

  4. xOa16RB5mqYnngOD
    xOa16RB5mqYnngOD
    neUHmLX3YGZT6yLY
    uPT2LQibm5KAHEvt

    • Turn the computer over and open the display. You should see that the keyboard is loose.

    • Before attempting to remove the keyboard, note that a ribbon cable connects the keyboard to the logic board. Improper removal may damage your keyboard.

    • Slightly lift the front of the keyboard up, and slide the keyboard towards yourself.

    • Carefully lift the top half of the keyboard and pull it towards yourself.

  5. uJyDmbCXFEG2PNR6
    uJyDmbCXFEG2PNR6
    LXvMUFwHRfPoGkuF

    • Loosen the ribbon cables connecting the keyboard to the computer by using a plastic opening tool to lift the tabs on either side of the cable port.

    • Gently remove the ribbons from its tabs.

    I did find that, strictly speaking, you don’t need to remove the ribbons. If you carefully hold up the keyboard up towards the screen with one hand, you can remove the old RAM and install the new one with the other. I suppose you could also use a length of masking tape to hold the keyboard up.

    I found it easier not to remove the ribbon, especially as I couldn’t find my plastic opening tool.

    Scott -

  6. AtGHnKxgOFTa6epY
    AtGHnKxgOFTa6epY
    fDKEDRSyjdecD5SS

    • Gently wiggle the RAM card to loosen the connection until it pulls free.

  7. rlAnGUUR5HGTK6Ln
    rlAnGUUR5HGTK6Ln
    mxMpy5kaB43QecXb

    • Disconnect the wires from the port.

    Speaker panel? I don’t think this is correct - I accidently pulled the black & red wires out from this part and sound still worked fine. Is this instead a battery connection?

    Matt -

  8. vTEDutqf31hqgZa6

    • Remove the 7mm screw connecting the speaker panel to the computer.

  9. lGYbhHahEOO11YaE
    lGYbhHahEOO11YaE
    DsMA5K2ah5UVtsVw

    • To detach the speaker panel's ribbon cable, use a plastic opening tool to lift the tabs on both sides of the cable port.

    • Once loose, pull the ribbon cable free.

  10. TSdiALrfAtBGgm4X
    TSdiALrfAtBGgm4X
    aSPLQvPNfPwNWFUg

    • Lift the lighting/audio panel from it's bottom corners and pull the panel towards yourself.

  11. biNKuDKu2cJ6OgJe

    • Remove the panels on either side by gently but firmly pulling up on them with both hands.

  12. NgQTwccCEoVE6XIU
    NgQTwccCEoVE6XIU
    eoLvSWHTQLBV5N4Y

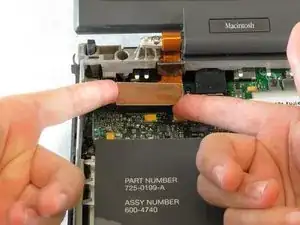

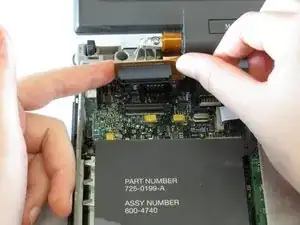

    • Gently pull up on the ribbon cable connection that connects the screen to the logic board.

  13. r6Gci3CDMT1xXioG
    r6Gci3CDMT1xXioG
    vOloEykdLvBeI2a5

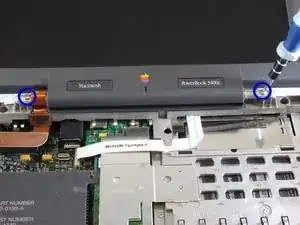

    • The two T8 13 mm torx screws hold the display screen in place. Be sure to remove the screws while supporting the screen or else it will fall.

    • Remove the two T8 13 mm long torx screws on either side of the display, located under the side panels.

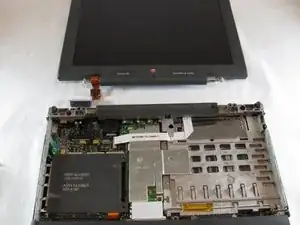

    • Gently pull the display free of the computer.

Abschluss

To replace the display, follow these instructions in reverse order.

Tinte & Feder

Michael Mondragon

Mitglied seit: 12/04/11

244 Reputation

Ein Kommentar

Note that the side panels should be placed back BEFORE the audio panel.

Stanislav Ambartsumov -
