PowerBook 3400 M3553 Hard Drive Replacement

Geschrieben von: Michael Mondragon
  • Kommentare: 4
PowerBook 3400 M3553 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

30 - 45 Minuten

Einleitung

If your hard drive was damaged or you want to upgrade it you will need to remove the old hard drive first. However, the hard drive is one of the hardest components to reach. Make sure you are able to keep all removed parts organized to make your reassembly process easier.

  1. cLysbvqM5GjE6vUT

    • Close the screen and turn the PowerBook over, orienting the computer upside down, using the label to guide you.

  2. oQL3hDJgDydDle6x
    oQL3hDJgDydDle6x
    BUAuNYmLLNYnNhVg

    • Hold the button on the front left side and slide the battery out.

  3. RWKtY2YDJLqwQTsh

    • With a Torx T8 screwdriver, remove the three Torx 24mm screws along the center of the back panel.

  4. xOa16RB5mqYnngOD
    xOa16RB5mqYnngOD
    neUHmLX3YGZT6yLY
    uPT2LQibm5KAHEvt

    • Turn the computer over and open the display. You should see that the keyboard is loose.

    • Before attempting to remove the keyboard, note that a ribbon cable connects the keyboard to the logic board. Improper removal may damage your keyboard.

    • Slightly lift the front of the keyboard up, and slide the keyboard towards yourself.

    • Carefully lift the top half of the keyboard and pull it towards yourself.

  5. uJyDmbCXFEG2PNR6
    uJyDmbCXFEG2PNR6
    LXvMUFwHRfPoGkuF

    • Loosen the ribbon cables connecting the keyboard to the computer by using a plastic opening tool to lift the tabs on either side of the cable port.

    • Gently remove the ribbons from its tabs.

    I did find that, strictly speaking, you don’t need to remove the ribbons. If you carefully hold up the keyboard up towards the screen with one hand, you can remove the old RAM and install the new one with the other. I suppose you could also use a length of masking tape to hold the keyboard up.

    I found it easier not to remove the ribbon, especially as I couldn’t find my plastic opening tool.

    Scott -

  6. AtGHnKxgOFTa6epY
    AtGHnKxgOFTa6epY
    fDKEDRSyjdecD5SS

    • Gently wiggle the RAM card to loosen the connection until it pulls free.

  7. rlAnGUUR5HGTK6Ln
    rlAnGUUR5HGTK6Ln
    mxMpy5kaB43QecXb

    • Disconnect the wires from the port.

    Speaker panel? I don’t think this is correct - I accidently pulled the black & red wires out from this part and sound still worked fine. Is this instead a battery connection?

    Matt -

  8. vTEDutqf31hqgZa6

    • Remove the 7mm screw connecting the speaker panel to the computer.

  9. lGYbhHahEOO11YaE
    lGYbhHahEOO11YaE
    DsMA5K2ah5UVtsVw

    • To detach the speaker panel's ribbon cable, use a plastic opening tool to lift the tabs on both sides of the cable port.

    • Once loose, pull the ribbon cable free.

  10. TSdiALrfAtBGgm4X
    TSdiALrfAtBGgm4X
    aSPLQvPNfPwNWFUg

    • Lift the lighting/audio panel from it's bottom corners and pull the panel towards yourself.

  11. PNekZIYynrJXCByt

    • Push the display screen back to give yourself enough space to remove the side panels.

    • Before removing the side panels, note that removing the side panels hastily will damage the underlying panel screw. However, this will not affect the functionality of your PowerBook.

    • Remove the panels on either side by gently but firmly pulling up on them with both hands.

  12. moJBTGRHeqswg5ID
    moJBTGRHeqswg5ID
    jfr2PICpgkdYHp1Y

    • Use the plastic opening tool to lift up the tabs on either side of the ribbon cable port and then gently pull the ribbon cable free.

  13. YFQmgChhvmdJOZlI
    YFQmgChhvmdJOZlI
    ImRnpXT5EBHfLdEZ
    mANmLx5xFYoSJpV5

    • WARNING: There is a high risk of breaking the tabs that lock the panel to the casing. Remove the panel slowly and cautiously to avoid damage.

    • With your index finger and your thumb, squeeze the track pad panel to loosen the clamps. Then slide the panel towards yourself.

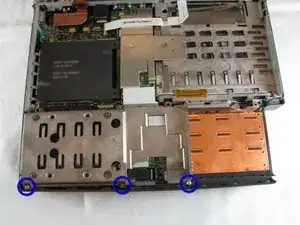

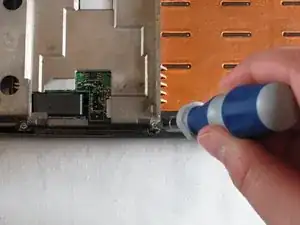

  14. m6ZyVdlwR6LNjIoQ
    m6ZyVdlwR6LNjIoQ
    IYekhxGeSUjn6rUw

    • Remove the three T8 10mm long torx screws along the bottom of the casing next to the hard drive.

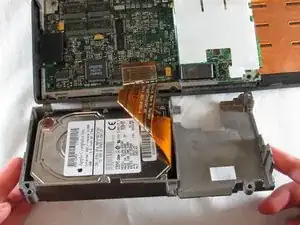

  15. Ix2eFp2getNTFMmM

    • A ribbon cable is attached to the underside of the hard drive. Hasty removal of the hard drive can damage the ribbon cable.

    • Gently lift up on the hard drive.

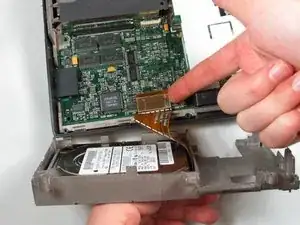

  16. paf3VKku2XDwAGqp
    paf3VKku2XDwAGqp
    rJxtQB3wMvTJWKUy

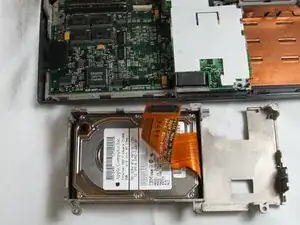

    • Rotate the hard drive towards yourself to access the ribbon cable and then gently pull up on the ribbon cable connector to remove the cable.

    • You might find it easier to set the hard drive on its side while disconnect the ribbon cable.

  17. ELGiZ13gNjAF3svi

    • Place the hard drive so that the casing is facing up.

    • Remove the 4 T8 5mm long torx screws to remove the hard drive from the metal casing.

  18. LJxkenpPgMNtYaRY

    • Lift the metal casing off of the hard drive.

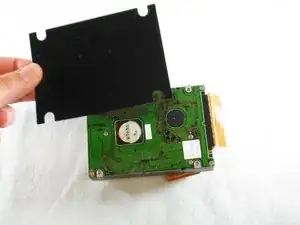

  19. PvPEwUv6FXAMuPmP

    • Remove and set aside the black protector that was under the hard drive casing.

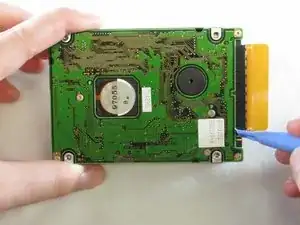

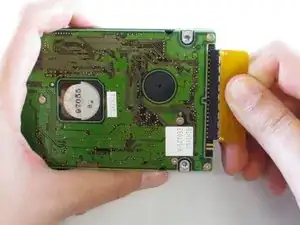

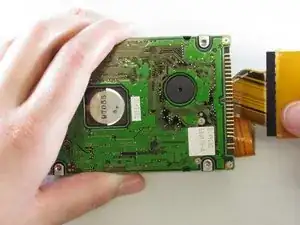

  20. d2JwaWyiPfBBDJSJ
    d2JwaWyiPfBBDJSJ
    MIWRxCev6tWHFfTO
    KvHQdAQUmcwgPBvq

    • If your replacement drive did not come with a ribbon cable, use a plastic opening tool to remove the ribbon cable from your old hard drive.

    • Use a plastic opening tool to loosen the ribbon cable by running it along the connection and gently prying it free.

    • When you have loosened the connection, pull the tab to remove the ribbon cable.

Abschluss

Install the new hard drive by following these instructions in reverse order.
